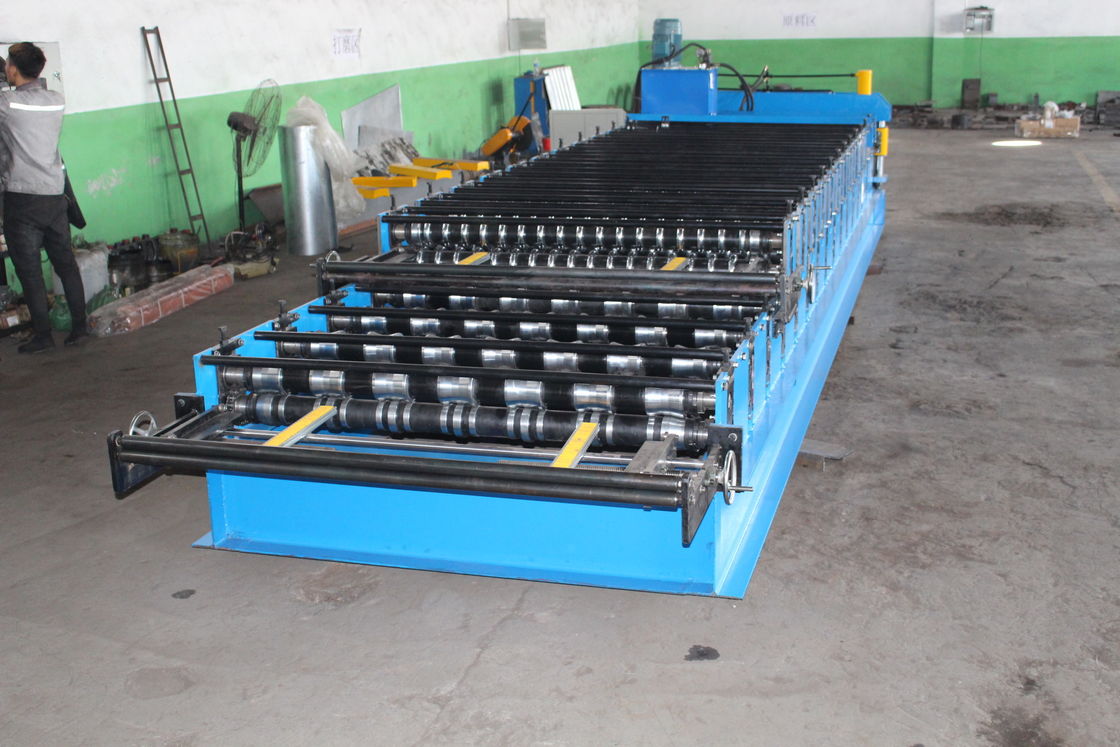

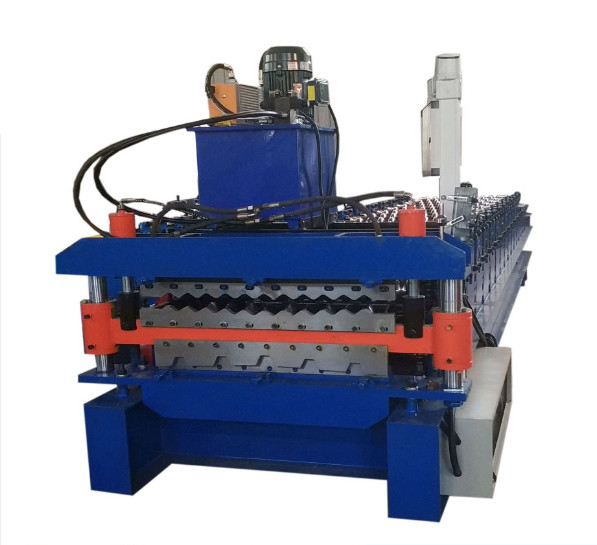

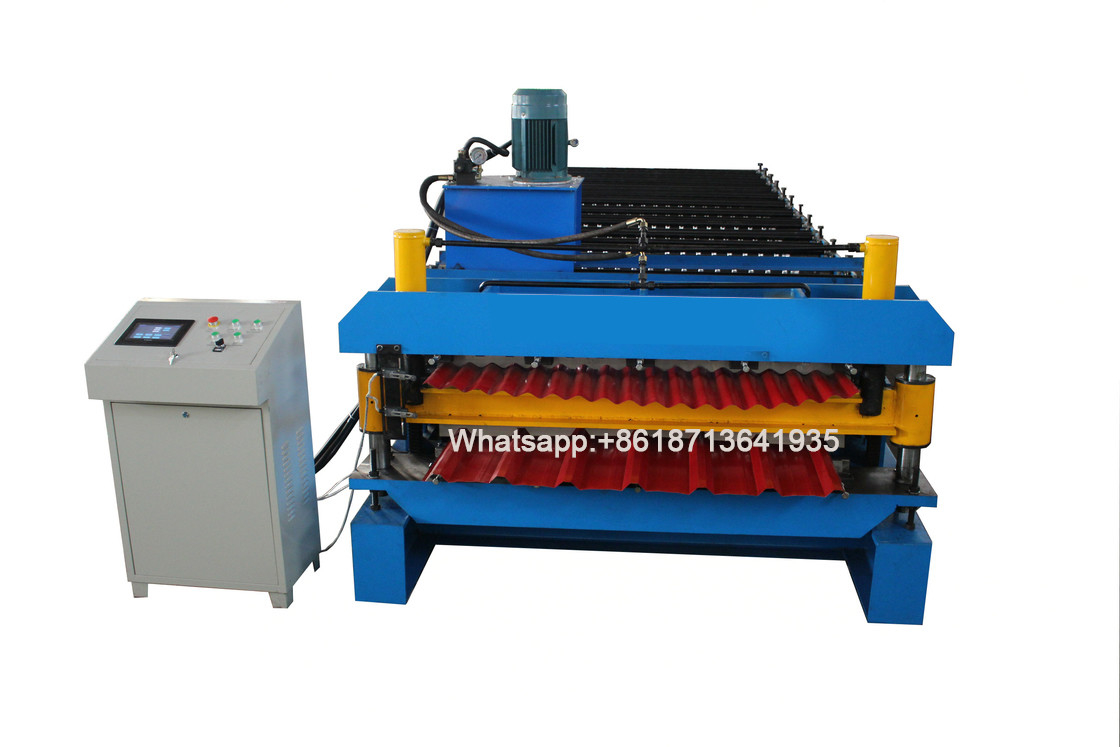

Full Auto Sheet Metal Double Layer Roll Forming Machine 15 - 18m/Min Hydraulic

Full Auto Sheet Metal Double Layer Roll Forming Machine 15 - 18m/Min Hydraulic

15m/Min Double Layer Forming Machine

Double Layer Forming Machine 15m/Min

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

840-850

Hubungi Kami
Minta Penawaran Harga
Full Auto Sheet Metal Double Layer Roll Forming Machine 15 - 18m/Min Hydraulic
Full Auto Sheet Metal Double Layer Roll Forming Machine 15 - 18m/Min Hydraulic Full Auto Sheet Metal Double Layer Roll Forming Machine 15 - 18m/Min Hydraulic Full Auto Sheet Metal Double Layer Roll Forming Machine 15 - 18m/Min Hydraulic
Detail Produk
Deskripsi produk:
Mesin Roll Forming Lapisan Ganda Logam Lembaran Otomatis Penuh Pemotongan Hidraulik 15-18m/Min
Jenis ubin:
Baja Berwarna
Bahan roller:
45# Dengan pelapisan krom
Dimensi (P*L*T):
6500*1500*1500
Bahan poros:
45# Temper Baja
Kecepatan:
8-15m/mnt
Voltase:
380V 50HZ 3PH
Berat:
4t
Menyoroti:

15m/Min Double Layer Forming Machine

,

Double Layer Forming Machine 15m/Min

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
35 set per bulan
Produk terkait
Harga bagus 2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine on line Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory priceDouble Layer Roof sheetForming Machine on line Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

Full Auto Sheet Metal Double Layer Roll Forming Machine 15-18m/Min Hydraulic Cutting



   The double layer tile machine equipment uses PLC and uses the electrical control system displayed by a text screen. It is easy to operate, easy to use the double layer tile machine equipment to use high -level automatic control software. To achieve production information management, the entire unit automation control system adopts high integration networks. Make the automation system's performance better. The color steel tile equipment also has the advantages of operation, maintenance, maintenance, and mechanical debugging, and easy mold replacement.




Equipment Detailed Parameters:

1. Weight capacity of decoiler 4T
2. Appearance Size(L*W*H) 6500*1500*1500
3. Raw material /feeding sheet material colored steel & galvanized steel
4. Roller material 45# high grade steel
5. Shaft material 45# high grade steel
6. Kind of drive chain drive
7. Cutting system automatic hydyaulic cutting
8. Cutting blade material Cr 12 high grade steel
9. Frame material 300 H-high grade steel
10. Control system totally automatic PLC control system
11. Main power 3 kw
12. Roller stations 13 rows
13. Speed of production 8-12m/min
14. Thickness of colored steel 0.2-0.8mm
15. Feeding width 1000mm
16. Effectiv width 840/900mm
15. Frame material 300 H-steel




Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.



Full Auto Sheet Metal Double Layer Roll Forming Machine 15 - 18m/Min Hydraulic 0
