Name: Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: mesin roll forming pipa bawah
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe

Downspout Pipe Cold Roll Forming Machine

15m/min Cold Roll Forming Machine

Aluminum Downpipe Roll Forming Machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

mesin roll forming pipa bawah

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Pipa Downspout Logam Mesin Roll Forming Dingin Pipa Aluminium Persegi

Kapasitas Produksi:

8-15 m/mnt

Kekuatan:

5.5kw

Dimensi (P*L*T):

8,5m*1,7m*1. 2m

Berat:

5,8 Ton

Voltase:

380V 50Hz 3fase atau sebagai persyaratan

Kecepatan:

1-15 m/mnt

Tenaga Motorik:

5.5kw

Ketebalan:

0,3-0,7mm

Diameter pipa::

80 * 100mm

Menyoroti:

Downspout Pipe Cold Roll Forming Machine

15m/min Cold Roll Forming Machine

Aluminum Downpipe Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

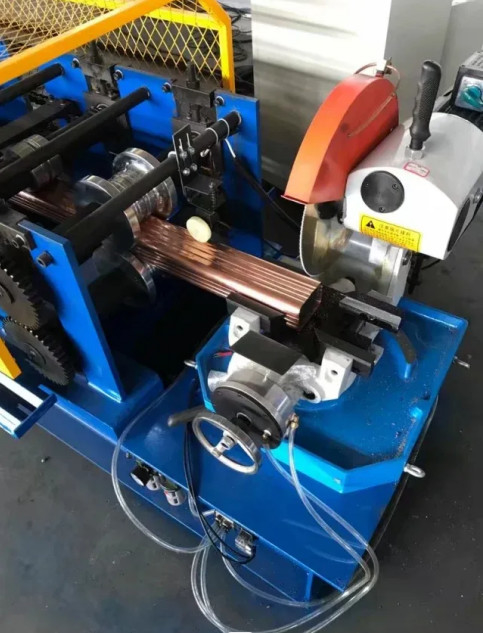

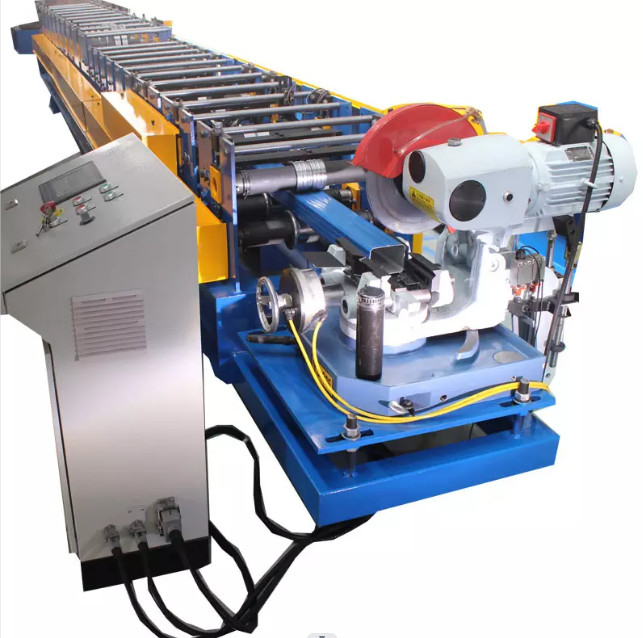

Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe

Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe work process

Uncoiling---main roll former---measure to length---fly saw cutting---product collect table

Metal Downspout Pipe Cold Roll Forming Machine resists thermal expansion and contraction, which means that it remains unaffected from sudden fluctuations in temperature. Steel has an excellent lifetime value, as it can be recycledis one type of interlock pipe making machine. A downspout is a pipe taht runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homes it exits the pipe.

Specification

Series	Detail	Parameter
Decoiler	loading capacity	3 Tons
	Inner diameter	450-550 mm
	Coil width	400 mm
Main roll former	Roller material	45# steel with chromed treatment
	Roller shaft material	45# steel with quenched treatment
	Work speed	8-15 m/min
	Machine structure	Middel plate welded structure frame
	Work power	4 kw
PLC control system	PLC brand	DElTA brand(also can change by your request)
PLC control system	Function	control the length and cutting quantity
Cutting system	Cutting type	Hydraulic cutting
Cutting system	Motor power	3 kw
Run out table	Strcuture	Square pipe weled structure

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
