Steel Roofing Tile Glazed Tile Roll Forming Machine Long Span

Long Span Glazed Tile Forming Machine

4kw Glazed Tile Roll Forming Machine

8m/min Glazed Tile Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Genteng Baja Genteng Mengkilap Mesin Roll Forming Mesin Rentang Panjang

Penggunaan:

Atap, Dinding

Bahan yang cocok:

PPGI GI

Berat:

5000 kg

Kecepatan:

3-8M/mnt

Bahan roller:

380V 50Hz 3Phase

Motor:

4KW

Ketebalan:

0.3-0.8mm

Spesifikasi:

3000*1300*600mm

Rol:

45# Baja sesuai Kebutuhan Pelanggan

Menyoroti:

Long Span Glazed Tile Forming Machine

4kw Glazed Tile Roll Forming Machine

8m/min Glazed Tile Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

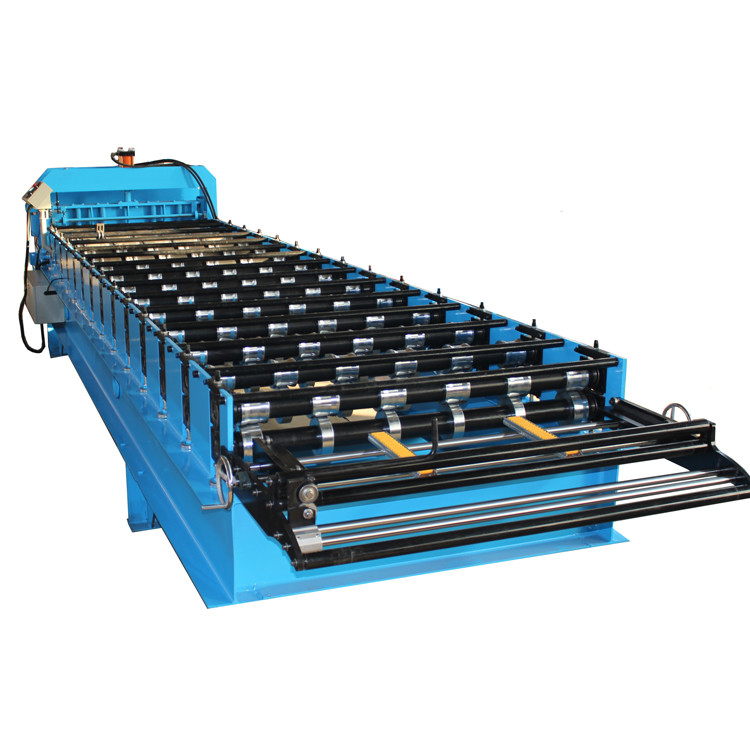

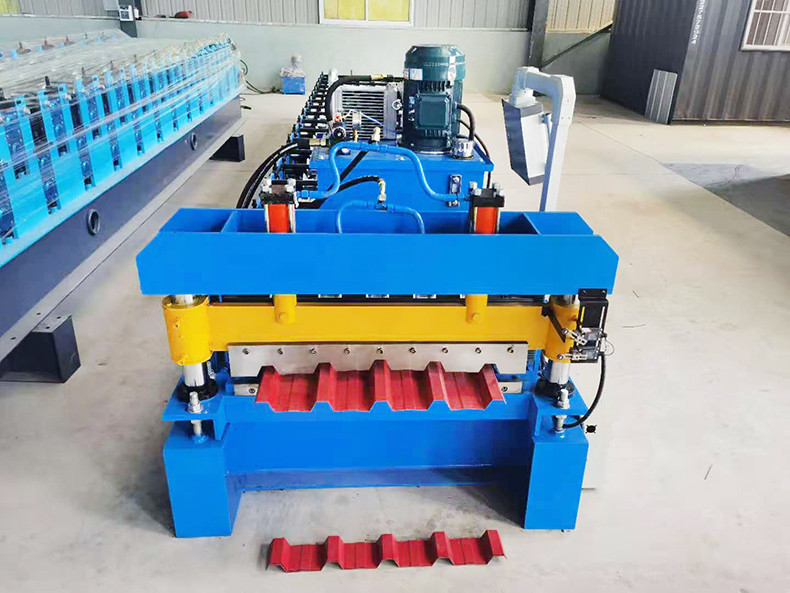

Steel Roofing Tile Glazed Tile Roll Forming Machine Long Span Machine

Different Good quality glazed steel roof tile making machine with different rolls can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, recycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.

Specification

Steel roofing tile glazed tile roll forming machine Step tile sheet machine
1	Main frame	250mm H-sections
2	Side board thickness	14mm
3	Main motor power	4kw
4	Power supply	380V 50Hz 3phases
5	Shaft number	3 rows
6	Shaft material	Carbon steel 45#
7	Shaft diameter	70mm
8	Rolling wheel material	Carbon steel 45# with chrome plated
9	Hydraulic pump motor power	4kw
10	Chain size	33mm
11	Control system	PLC Delta inverter
12	Production rate	4-8m/min
13	Feeding tiles	Formed tiles
14	Finished specification	According to the formed tiles
15	Overall size	30001300600mm
16	Total weight	About 0.5 Ton
Parameters above is the standard configuration Parameters can be designed as per your special requests.

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
