Name: Metal Steel Deck Roll Forming Machine For Construction And Building Structure
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

Metal Steel Deck Roll Forming Machine For Construction And Building Structure

12m/min Metal Deck Roll Forming Machine

12m/min Steel Deck Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Dek Baja Logam Untuk Konstruksi Dan Struktur Bangunan

Cutting Blade Material:

CR12 padam

Rangka mesin:

Baja 400 jam atau 450 jam

Toleransi Panjang Pemotongan:

± 2mm

Berat:

3 ton

Voltase:

380V 50Hz 3Phase

Pembentukan kecepatan:

8-12 m/mnt

rangka bawah:

Mengadopsi poros padat 85-95mm dan baja berbentuk H

Menyoroti:

12m/min Metal Deck Roll Forming Machine

12m/min Steel Deck Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

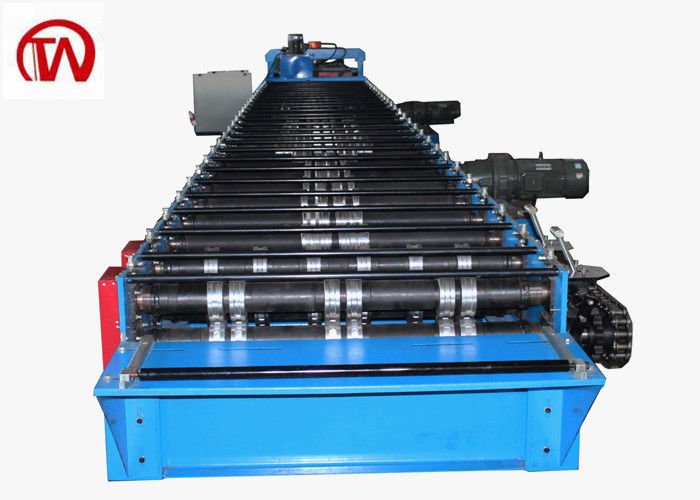

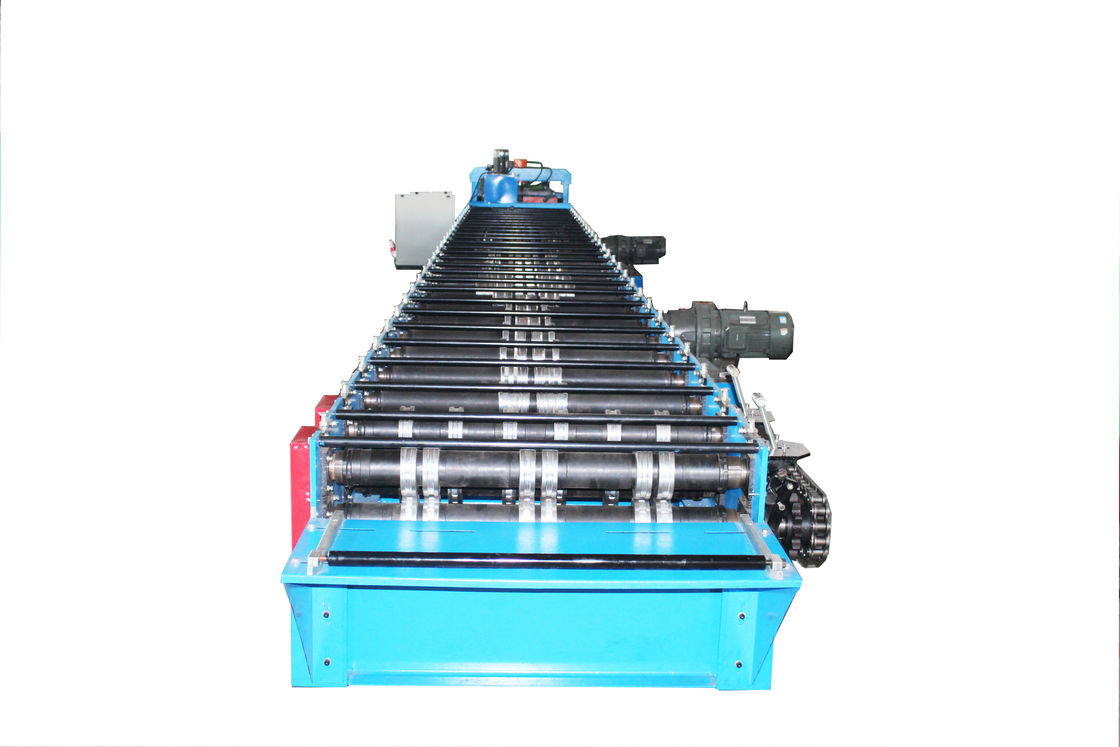

Metal Steel Deck Roll Forming Machine For Construction And Building Structure

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Metal Steel Deck Roll Forming Machine For Construction And Building Structure is a modern, pre-eminent solution for concrete floor work. It roll-forms panels that replace traditional form-work, shortens 3 times working duration, saving 30% on concrete.
Field of application: Construction and building structure.
Application: Roll forming panels that are used as a floor replacement

Specification

Machine Specifications
Weight	About 6000kgs
Size	About 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material	Galvanized or Galvalume Coils
Thickness	0.8-1.2mm
Yield Strength	235Mpa
Main Technical Parameters
Diameter of forming rollers shafts	95mm
Roll Forming Speed	10-15/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 3x11kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

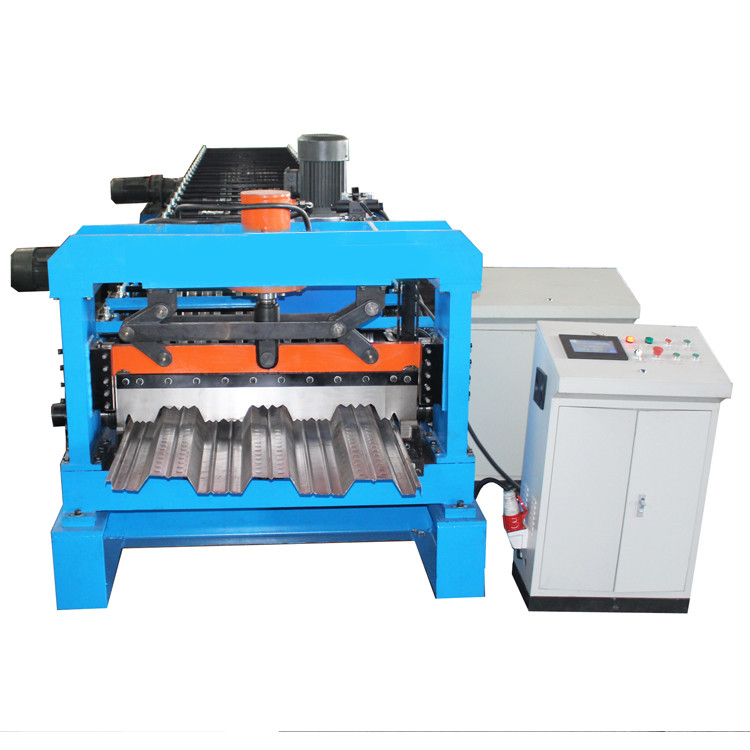

Metal Steel Deck Roll Forming Machine For Construction And Building Structure 0
