Name: High Speed Steel Floor Deck Machine 0.8 - 1.5mm Thickness Customized
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

High Speed Steel Floor Deck Machine 0.8 - 1.5mm Thickness Customized

1.5mm Steel Deck Roll Forming Machine

0.8mm Deck Floor Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Dek Lantai Baja Berkecepatan Tinggi Ketebalan 0,8-1,5mm Disesuaikan

Dimensi (P*L*T):

Sekitar 12,5mx1,5mx1,4m

Cutting Blade Material:

CR12 padam

Jenis kontrol:

Sistem PLC

Bahan poros:

Kelas Tinggi No.45 Ditempa

Berat:

6000 kg

Voltase:

380V 50Hz 3Phase

Kapasitas Produksi:

15-20m/mnt

Ketebalan material:

00,8-1,5 mm

Lebar kumparan:

1200mm /1220mm / 1250mm

Menyoroti:

1.5mm Steel Deck Roll Forming Machine

0.8mm Deck Floor Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

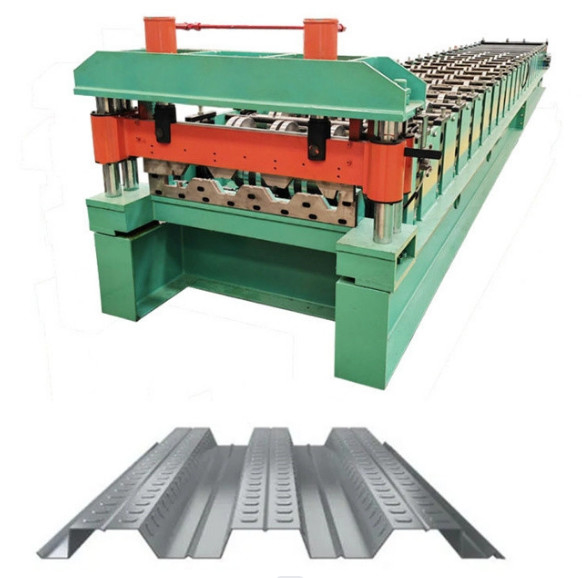

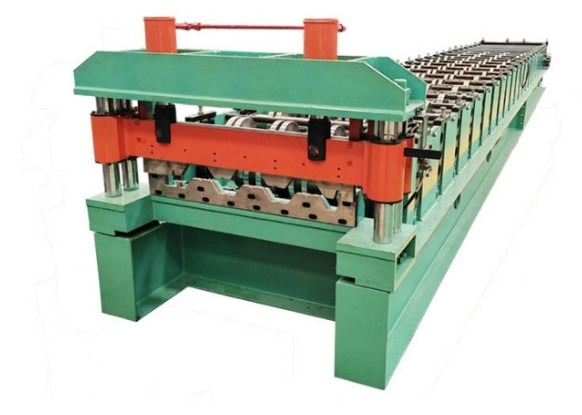

High Speed Steel Floor Deck Machine 0.8-1.5mm Thickness Customized

The floor deck roll forming machine can form the flat sheet into a customized shape, the raw amterial is gi,ppgi,color steel.

The steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops,
cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets,
logistics centers, Olympic venues and gymnasium Steel structures.

Specification

High Speed Steel Floor Deck Machine 0.8-1.5mm Thickness Customized
Weight	About 3tons
Size	About 12.5mx1.5mx1.4m(length x width x height)
Color	Machine Main color: blue or can as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.8-1.5mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	24stations
Diameter of forming rollers shafts	95mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 18.5kw+18.5kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
