Solar Structure Panel Roll Forming Machine 1.2mm - 2.5mm Material Thickness

Solar Structure Panel Roll Forming Machine

2.5mm Panel Roll Forming Machine

1.2mm Panel Roll Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Panel Struktur Surya Ketebalan Bahan 1.2mm-2.5mm

Nilai jual utama:

Otomatis

Kecepatan mesin:

20m-25m/menit

Voltase:

380V 50Hz 3Phase

Dimensi (P*L*T):

sekitar 9500*1000*1200Mm

Ketebalan bahan baku:

1.2mm-2.5mm

Bahan shaf:

Baja C45

Bahan roller:

45 # baja tempa

Jenis pemotongan:

Pemotongan hidrolik

Ketipisan bergulir:

1.5-2.5mm

Materi Pemotongan:

CR12MOV

Menyoroti:

Solar Structure Panel Roll Forming Machine

2.5mm Panel Roll Forming Machine

1.2mm Panel Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

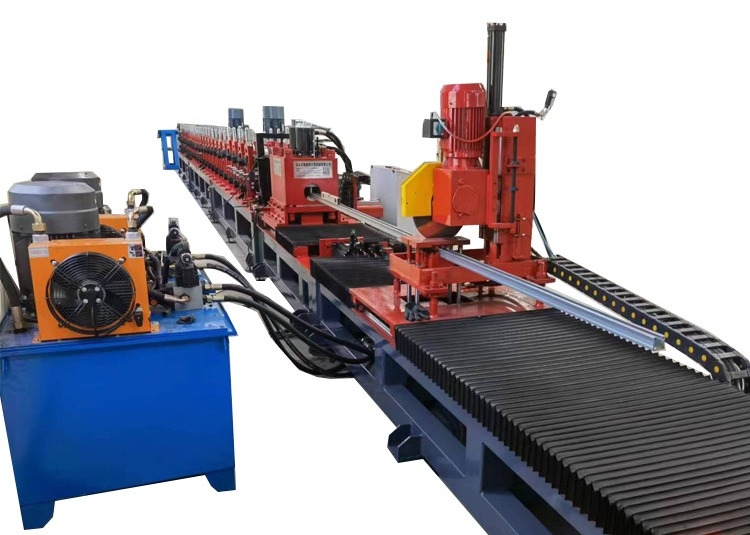

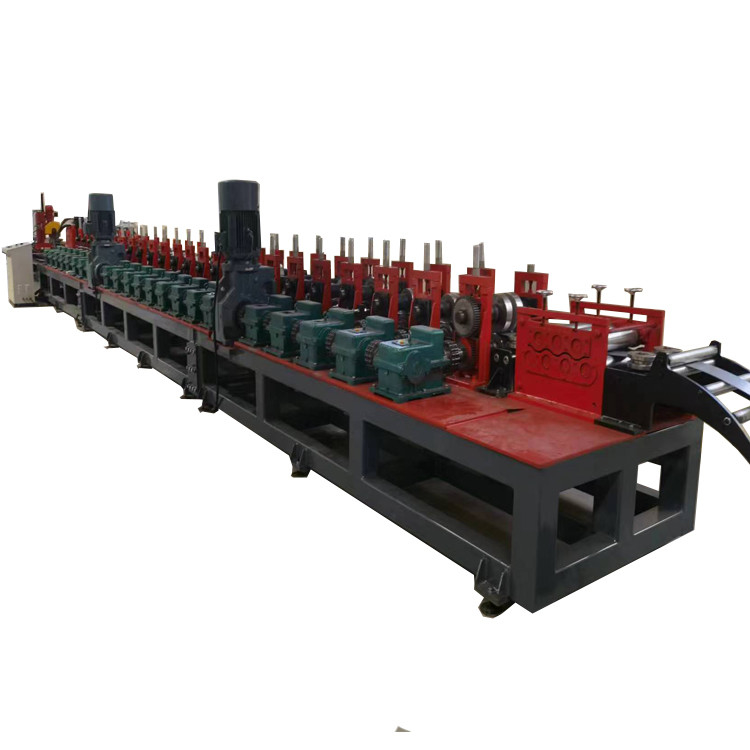

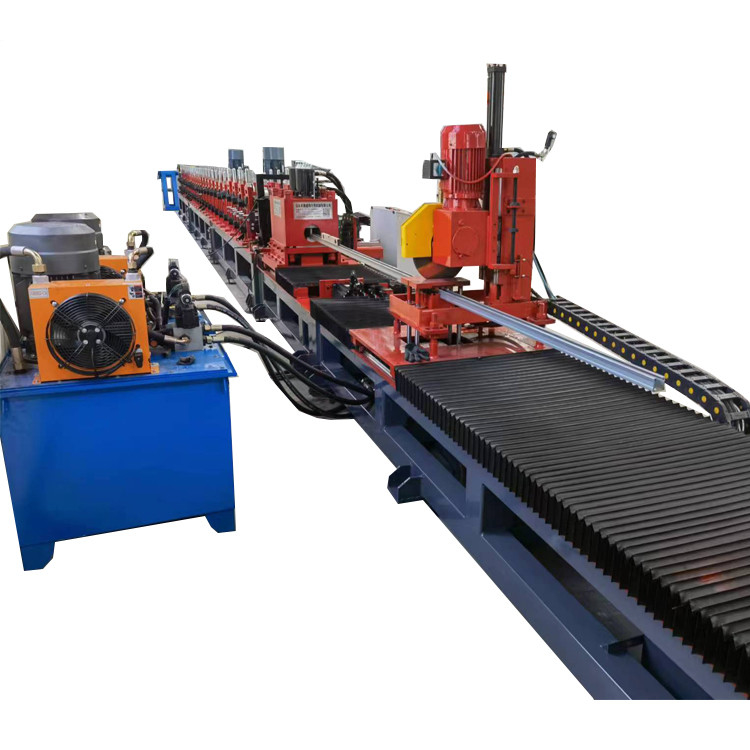

Solar Structure Panel Roll Forming Machine 1.2mm-2.5mm Material Thickness

Solar Structure Panel Roll Forming Machine 1.2mm-2.5mm Material Thickness

Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack

This machine is widely used in solar structure,kinds of shelves,ceiling frames, drywall partition, steel structure building, ect.

Our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

specifications

Machine Specifications
Weight	About 4tons
Size	About 10.2m1.2m1.3m(length x width x height)
Color	Main color: Red or as your requirements
Color	Warning color: yellow
Suitable Raw Material
Material	Cold-rolled strip steel, galvanized sheet
Thickness	1.2mm-2.5mm
Yield Strength	Q235-300
Main Technical Parameters
Quantity of forming rollers stations	21 stations
Diameter of forming rollers shafts	70mm
Roll Forming Speed	20m-25m/min
Forming rollers material	Gcr15
Cutter material	Cr12MOV
Controlling system	PLC
Electric Power requirement	Main motor power: 15kw+7.5KW
Electric voltage	According to customer’s requirement

2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
