Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock

15m/min Standing Seam Roll Forming Machine

Portable Standing Seam Roll Forming Machine

Self Lock Standing Seam Roll Former

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Jahitan Berdiri Self Lock Kunci Klip Snap Portabel

Kapasitas Produksi:

10-15m/mnt

Voltase:

380V 50Hz 3Phase

Berat:

1,5ton

Sisi luar ban:

45# Pelat baja

Dimensi (P*L*T):

5800*1000*1200mm

Bahan roller:

45# Penempaan Baja dengan Plat Kromium

Tenaga Motorik:

4KW

Bahan mentah:

GI,PPGI,PPGL

Menyoroti:

15m/min Standing Seam Roll Forming Machine

Portable Standing Seam Roll Forming Machine

Self Lock Standing Seam Roll Former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

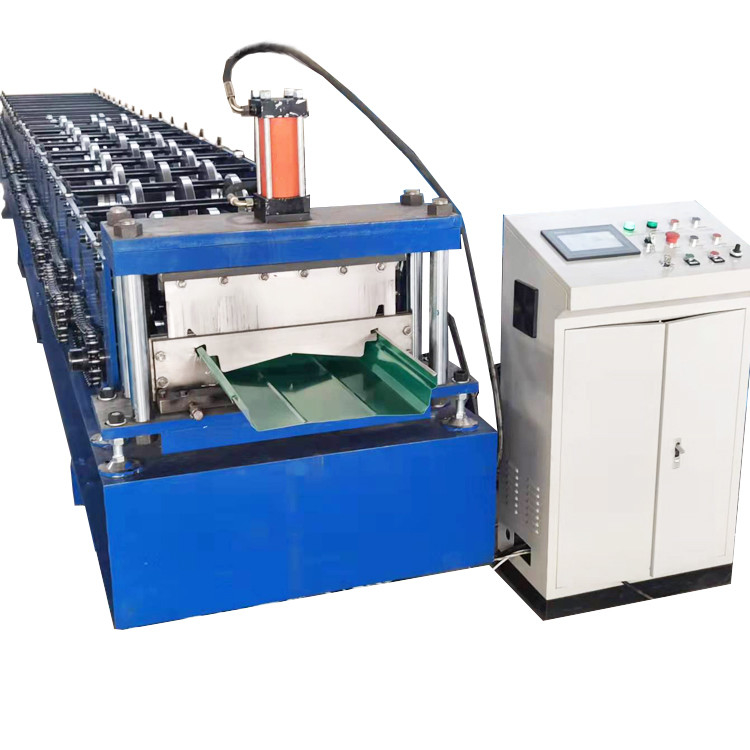

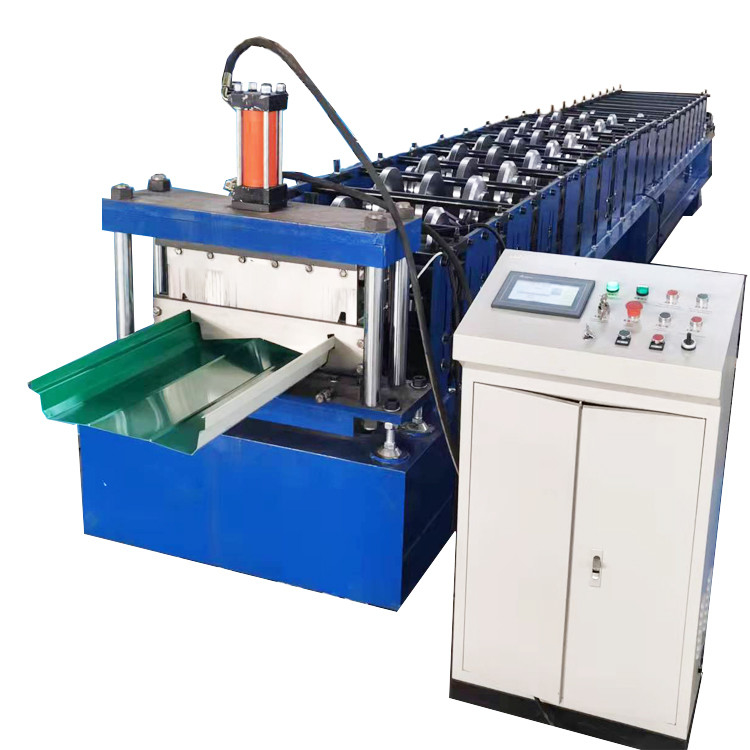

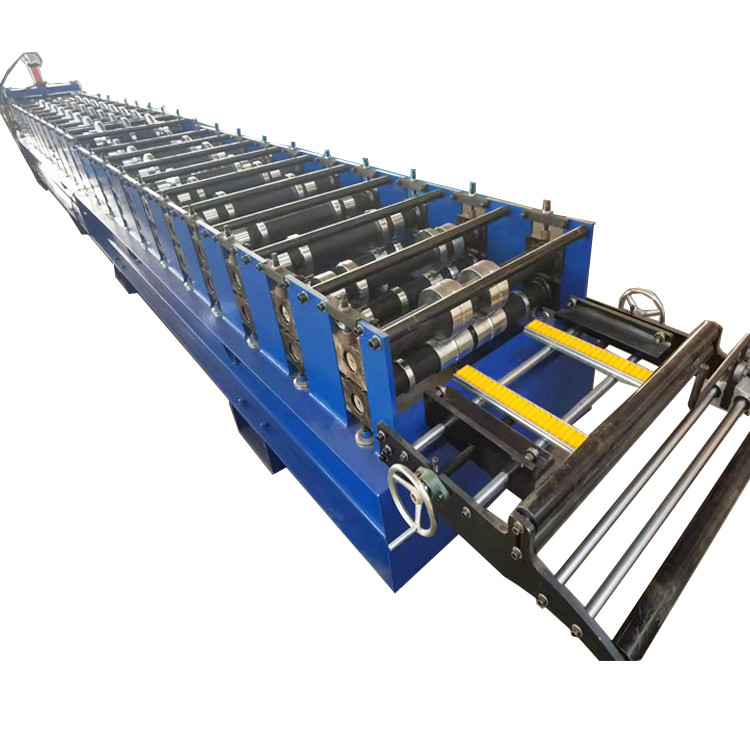

Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock

Self Lock Standing Seam Roll Forming Machine Portable Snap Clip Lock is widely used, because it’s impossible for the water to get under the connected roofing panels, thanks to lock’s special shape.

After installation on the roof the panels are closed using special double standing seam closing tools (manual tool for closing seam lock or electric seaming machine for closing double standing seams).

standing seam machine can be easily adjusted for various width of metal roofing panels.

Operator can change the width of the panels with just a single turning handle at one side of the machine. This is a proven technical convenience that allows operator to use his working time more effectively.

Specification

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	As drawing
4.Effective width	As drawing
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	65mm
8.Forming steps	13steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	Delta PLC control system with touch screen
13.Cutting blade material	Cr12.
14.Working speed	About 10-15m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 580010001400mm
17. Machine weight	About 1.5ton
18.Power supply	220v,3phase,50hz or accodring to customer request

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
