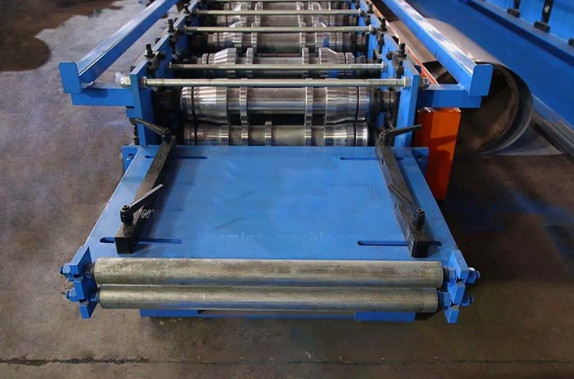

Name: Automation Gutter Roll Forming Rolling Machine High Accuracy
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: mesin roll forming pipa bawah
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Automation Gutter Roll Forming Rolling Machine High Accuracy

Automation Gutter Roll Forming Machine

15m/Miin Gutter Roll Forming Machine

Automation Gutter Roll Forming Machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

mesin roll forming pipa bawah

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Otomatisasi Talang Roll Forming Mesin Rolling Dengan Kualitas Tinggi

Ketebalan material:

0.4-0.5mm

Motor:

11+4kw

Bahan pemotongan:

CR12MOV

Diameter poros:

75mm

Kecepatan:

12-15m/menit

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Sistem Pengendalian:

PCL

Nilai jual utama:

Akurasi tinggi

Menyoroti:

Automation Gutter Roll Forming Machine

15m/Miin Gutter Roll Forming Machine

Automation Gutter Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Automation Gutter Roll Forming Rolling Machine With High Quality

Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW ;
Cutting tool material:Cr12MoV, Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station

Specification

Use	Automation Gutter Roll Forming Rolling Machine With High Quality
Effective width	152.4mm
Voltage	380V 50Hz 3phases
Material Thickness	0.4-0.5mm
Applicable material	PPGI
Real forming speed	12-15 m/min(Not include cutting time)
Main Motor	11KW
Shafts Diameter	ф75mm
thickness	0.04mm
Core Components	Motor, Pump, PLC
Machine Control System	PLC(Touch Screen)

Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
