Name: Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: mesin roll forming pipa bawah
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span

PCL Cold Roll Forming Machine

Downpipe Cold Roll Forming Machine

PCL Downpipe Roll Forming Machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

mesin roll forming pipa bawah

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Dingin Pipa Talang Hujan Persegi K Span

Kapasitas Produksi:

8-15m/mnt

Cutting Blade Material:

Kr 12 Bergerak

Ketebalan:

0,4-0,6mm

Layar Sentuh:

Merek Siemens atau sebagai kebutuhan pelanggan

Berat kotor per satuan produk:

9500kg

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Sistem Pengendalian:

PCL

Gulung tahapan:

16 tahap

Menyoroti:

PCL Cold Roll Forming Machine

Downpipe Cold Roll Forming Machine

PCL Downpipe Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

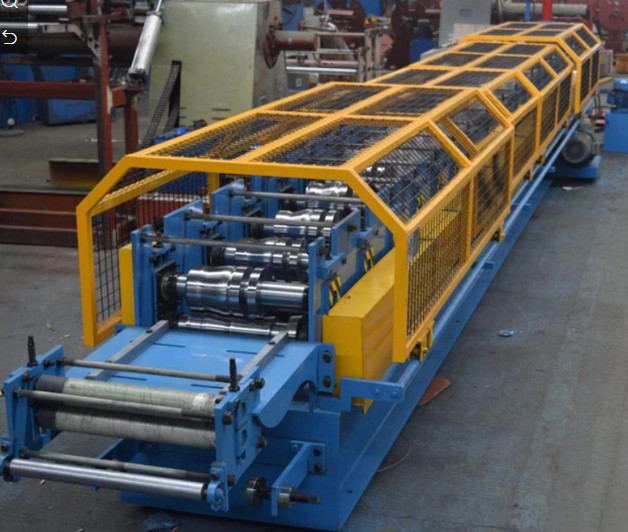

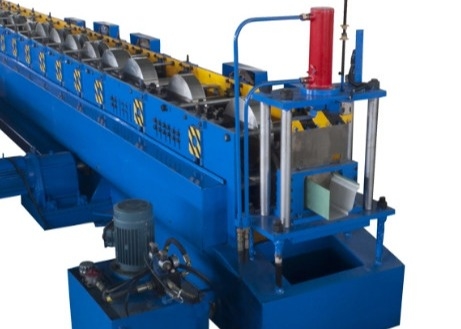

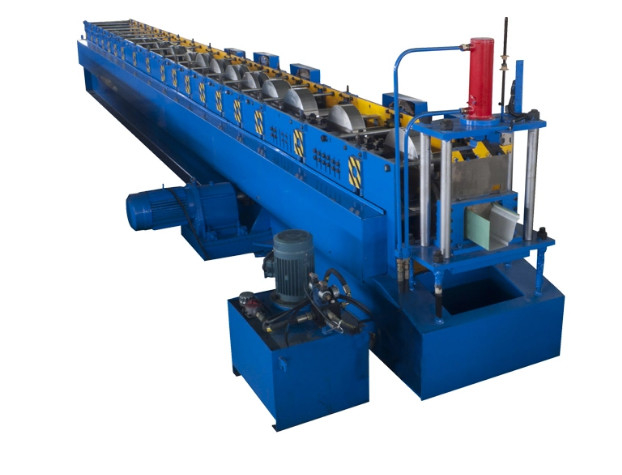

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

Specification

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span parameter
Suitable roll forming material	Color steel sheet
Thickness	0.4-0.6mm
Frame design	Wall-plate-frame-design /New-stand-frame-design
Roll stages	16 stages
Material of forming roller	45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	7.5KW
Max. Line speed of roll former	15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	4KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as per customer's requirements
Machine Dimensions	8850mm×1280mm×1550mm
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
