Name: Square Downpipe Roll Forming Machine Hydraulic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: mesin roll forming pipa bawah
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Square Downpipe Roll Forming Machine Hydraulic Cutting

15m/min Square Downpipe Roll Forming Machine

ISO Square Downpipe Roll Forming Machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

mesin roll forming pipa bawah

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pipa Bawah Untuk Mesin Pembuat Pipa Persegi Desain Baru Berkualitas Tinggi

Kapasitas Produksi:

0-15m/mnt

Cutting Blade Material:

Kr 12 Bergerak

Ketipisan bergulir:

0,3-0,8 mm

Dimensi (P*L*T):

8,5*1,65*1,5m

Lebar makan:

1220mm

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Otomatisasi:

Penuh Otomatis

Tipe pemotong:

Pemotongan hidrolik

Menyoroti:

15m/min Square Downpipe Roll Forming Machine

ISO Square Downpipe Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine

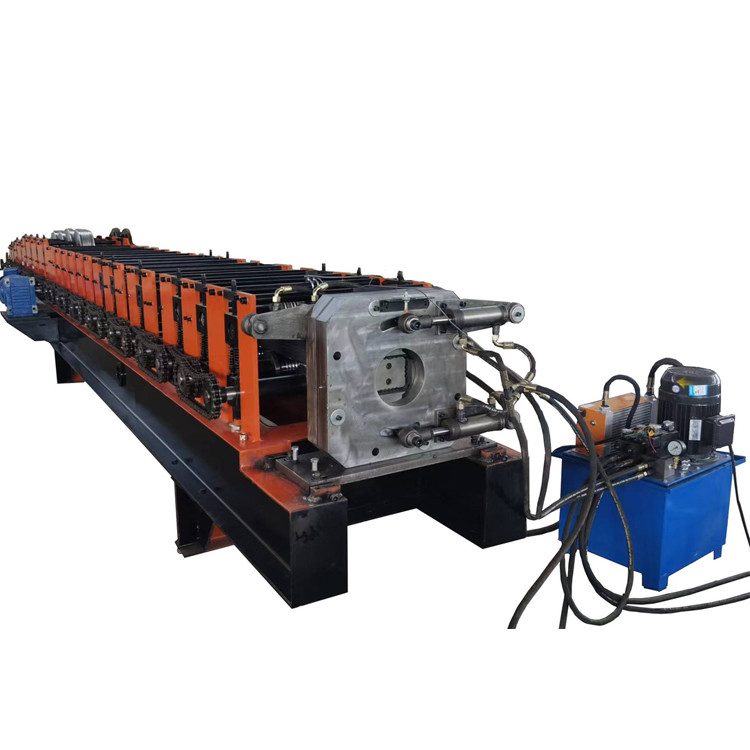

Cangzhou FMS Roll Forming Machinery Co., Ltd. is a professional manufacturer engaged in research, development, production, sale and service of roll forming machine. Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table.

Specification

Name	Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine
Tile Type	Steel
Use	gutter downpipe
Production Capacity	0-15m/min
Dimension(LWH)	8.51.651.5m
Weight	4500kg
Warranty	1 Year
Key Selling Points	Energy saving
Rolling thinckness	0.3-0.8mm
Feeding width	within 600mm
Warranty of core components	1.5 years
Core Components	Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Control system	Delta PLC
After-sales Service Provided	Online Support Video Technical Support
Certification	ISO CE
Raw material	GI PPGI
Cutting blade material	Cr 12 Mov
Profiles	Customized
Decoiler	3tons
Need container	40GP
Main motor power	5.5kw

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance
60% is paid before shipping
