Name: Down Pipe Gutter Downspout Making Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Cerat Persegi/Bulat Ke Bawah
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Down Pipe Gutter Downspout Making Machine Full Automatic

Gutter Downspout Making Machine

PLC Downspout Making Machine

PLC Gutter Downspout Machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Cerat Persegi/Bulat Ke Bawah

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pipa Bawah Mesin Pembuat Downspout Talang

Kapasitas Produksi:

8-12 m/mnt

Berat:

5 ton

Ketebalan:

0,3-0,8 mm

Sistem Pengendalian:

PLC

Lebar makan:

1220mm

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Otomatisasi:

Penuh Otomatis

Tipe pemotong:

Pemotongan hidrolik

Menyoroti:

Gutter Downspout Making Machine

PLC Downspout Making Machine

PLC Gutter Downspout Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Down Pipe Roll Forming Machine Gutter Downspout Making Machine

Down Pipe Roll Forming Machine Gutter Downspout Making Machine Advantage :

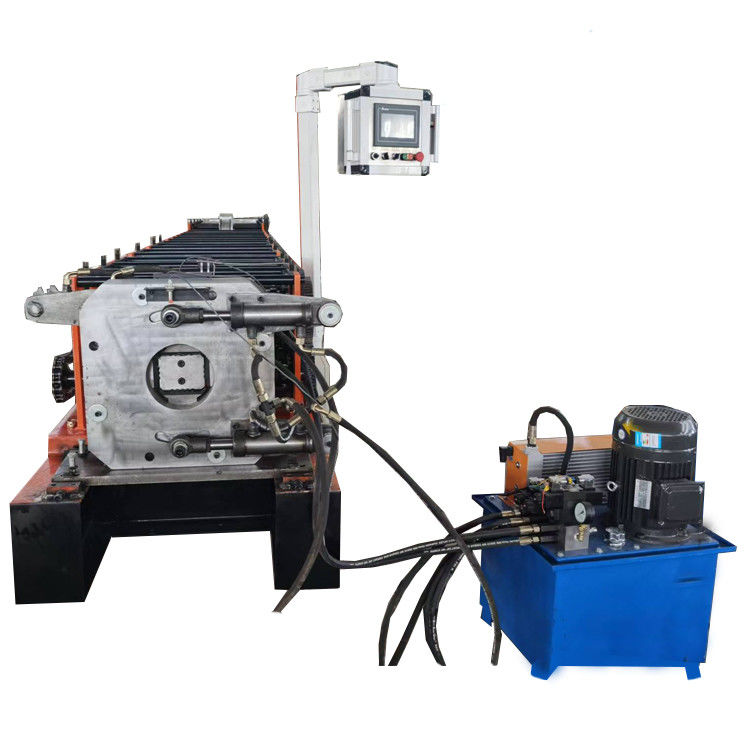

downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table
1. The whole line working speed is about 10m/min.,max working speed could be 15 meters per minute.
2. Feeding material width should be confirmed before machine design .the width are changeable,
3. Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .
4. Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing
5. Final sheet embossing is avaliable.we can different embossing rollers on various pattern and drawings.
6. Pre-cutting are provided as you want.

Specification

Down Pipe Roll Forming Machine Gutter Downspout Making Machine
No.	Item	Specifications
1	Coil Width	according to drawings
2	Diameter of shaft	70mm
3	Forming Speed	8-12meters/min
4	Middle plate	16mm
5	Material of shaft	45#steel with tempering
6	forming thickness	0.2mm-0.6mm
7	material of rollers	45#steel

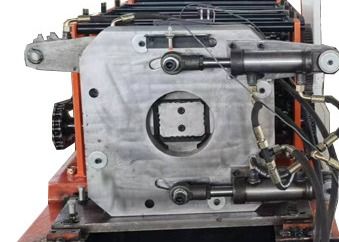

8	Cutting type	hydraulic -cutting
9	Main power	4kw+3kw
10	Main frame	300H steel
11	Control system	PLC
12	Brand of electrical parts	Delta
13	Manual decoiler	5 tons
14	Power	3 Phase,380 Voltage,50Hz
15	Dimensions(LWH)	About 6.51.21.2M
16	Weight	about 3 tons

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
