Cold Panel Metal Roofing Sheet Roll Forming Machine Hydraulic

Metal Roofing Sheet Roll Forming Machine

ISO Metal Roofing Sheet Making Machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lembaran Atap Logam Mesin Pembuat Lembaran Atap Panel Dingin

Metode:

Tekanan hidrolik

Kapasitas Produksi:

8-10m/mnt

Voltase:

380V 50Hz 3Phase

Lebar makan:

900mm

Bahan roller (Keras):

Cr12, dipanaskan dan dipadamkan, dipoles

Dimensi (P*L*T):

6500*1300*1500

Ketipisan bergulir:

0.3-0.8mm

Di Bawah Bingkai:

350H-beam, Struktur las

Bahan Pra-pemotong:

CR12MOV

Bahan mentah:

GI,PPGI,PPGL

Diameter poros:

70 mm

Menyoroti:

Metal Roofing Sheet Roll Forming Machine

ISO Metal Roofing Sheet Making Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Metal Roofing Sheet Roll Forming Machine Cold Panel Roofing Sheet Making Machine

Metal Roofing Sheet Roll Forming Machine Cold Panel Roofing Sheet Making Machine.Main Features:

1. This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2. Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

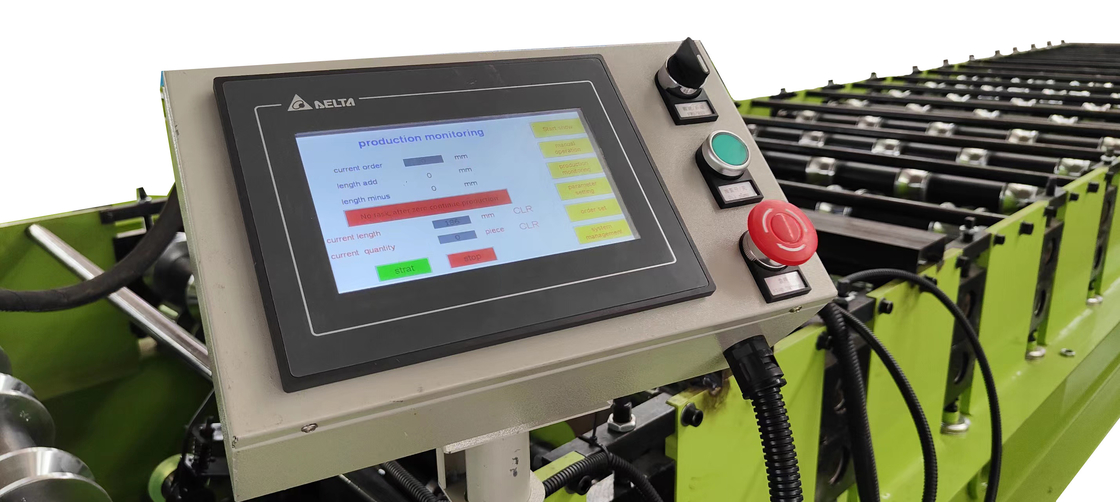

3. Fully Automatic Control System with PLC.
4. Easy operation: Key in the length and quantity on the control panel.

we have approved certification of ce iso9001,the concept control everyone orocess and perfect all products is curved in everyone mind ,each machine.will be via load carrying test before leaving factory,problem machines will never be delivered to customer.

we are willing to promote the economic and technical,exchange with the word ,and do positive work to enhance the between people from different countries,we sincerely hope you and hand in hand ,create the glorious future altogether.

Specification

SPECIFICATIONS FOR ROOF SHEET ROLL FORMING MACHINE
Raw Material	feeding width	mm	1220
	effective width	mm	1000
	thickness	mm	0.3-0.8
Main Roll Forming Machine	roller material		45# steel plated with chrome
	diameter of shaft	mm	70
	roller station	steps	16
Main Configuration	main motor power	kw	5.5
	hydraulic station power	Kw	4
	control system	PLC brand	Mitsubishi

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
