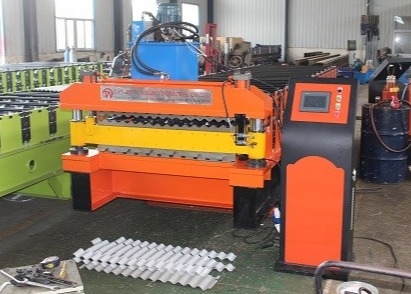

Double Layer Roofing Sheet Roll Forming Machine Automatic High Quality
TheDouble Layer Roofing Sheet Roll Forming Machine Automatic High Quality. It has a small footprint, saves space, and is controlled automatically by a computer. In this operation, only one type of tiles can be produced at one time.
Maquina de hecho lamina teja costura de techo is widely usedin the construction of various.
iIndustrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three-dimensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.
Specification
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 914mm/1000mm/1200mm/1220mm/1250mm |
3 | Thickness of the plate | 0.3-0.8mm |
4 | De-coiler | Manual one, can load 5 tons raw material |
5 | Rollers for forming | 16 rows |
6 | Diameter of the roller | 80mm |
7 | Rolling material | Carbon Steel 45# |
8 | Main motor power | 5.5kw |
9 | Material of the cutting blade | Cr12 mov |
10 | Hydraulic cutting power | 4kw |
11 | Processing precision | Within 1.00mm |
12 | Control system | Delta PLC control |
13 | Side panel of machine | 16mm |
14 | Main structure of the machine | 350 H steel |
15 | Weight | About 3T |
16 | Dimensions | 5.6*1.2*1.5m |
17 | Voltage | 380V 50Hz 3phases(changeable as needs) |
18 | Certificate | CE/ISO |
19 | Custom | According to customer's requirements |
Application
The tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls, and large-span steel structure houses. It can be made of GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and it has a service life of 10-15 years.
Advantage
In general, this version is used for roofs, walls, and internal and external wall decoration of buildings, warehouses, special buildings, and long-span steel structure houses. The features of the product include a light weight, high strength, rich colors, convenient and fast construction, earthquake resistance, fireproof, rainproof, and long service life. Protection functions have been widely used.
