Customized Exquisite Metal Steel Door Frame Making Machine 8 M/Min

0.8mm Steel Door Frame Making Machine

1.2mm Steel Door Frame Making Machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembuat Kusen Pintu Logam Indah yang Disesuaikan Mesin Pembuat Kusen Pintu Baja

Voltase:

380V /50Hz/3pH atau sebagai Persyaratan

Kapasitas Produksi:

8 m/menit

Berat:

5400 kg

Sistem Pengendalian:

PLC

Jenis pemotongan:

Pemotongan hidrolik

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Menyoroti:

0.8mm Steel Door Frame Making Machine

1.2mm Steel Door Frame Making Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik

Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik

Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Dapatkan Harga Terbaik

Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

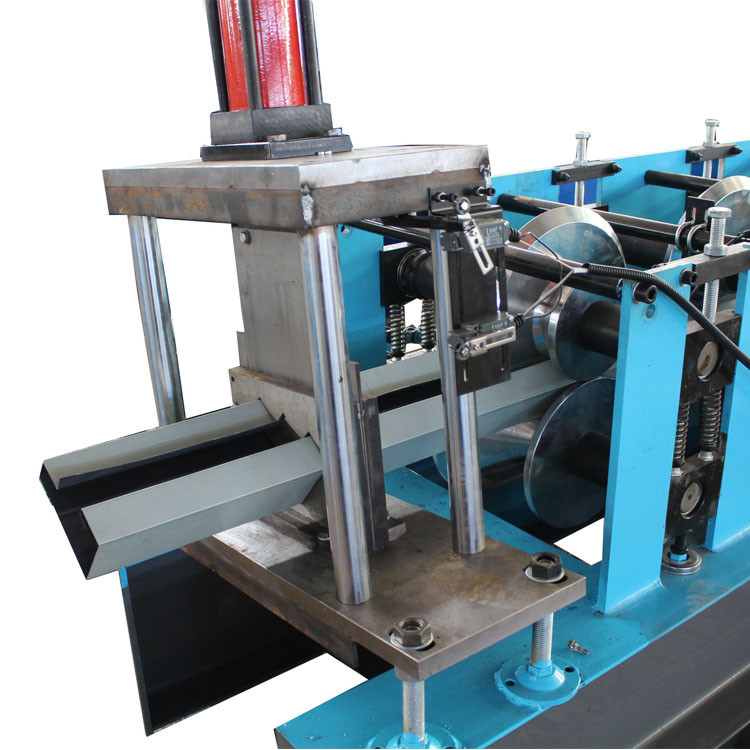

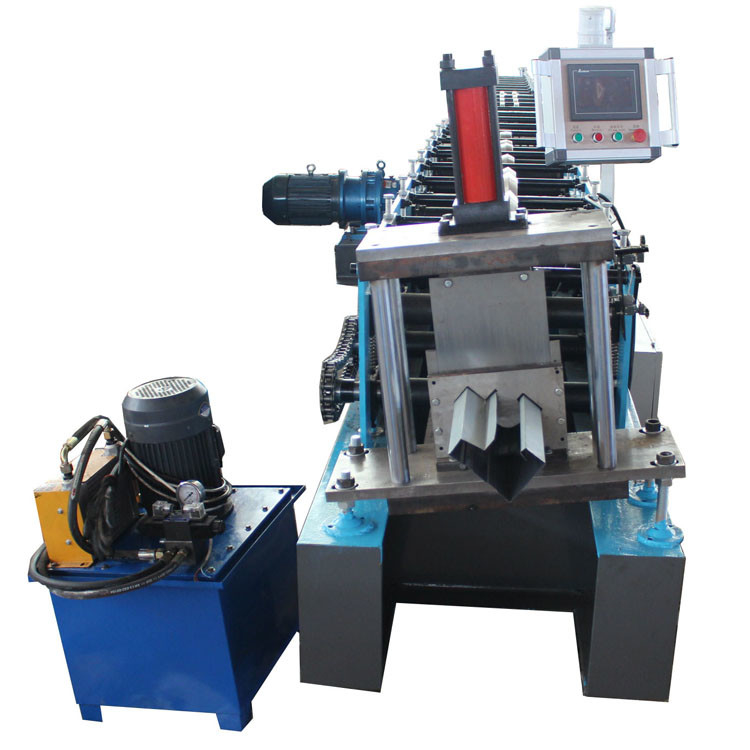

Customized Exquisite Metal Door Frame Making Machine Steel Door Frame Making Machine

Customized Exquisite Metal Door Frame Making Machine Steel Door Frame Making Machine.It can produce a structural doorframe, fire door and clean panel, doorframe roll forming line of KINDUS can automatically control according to the width of product.

Moreover, the positioning of punching is easy, regardless of a various size of fire door, inner or exterior plate.

Especially, it sequentially process inner and exterior plate, and can lead to following process.

So, fire door manufacturing process can be done continuously and then, it is not only improving productivity significantly but also the cost reduction enables to minimize of subsidiary equipment and space.

Specification

Doorframe And Fire Door Roll Forming Machine Doorframe Roll Forming Line
raw material	PPGI PPGL GI GL
Rolling thinckness	0.8-1.2mm
Shaft material	45# steel,bearing steel outer diameter 85mm
Main motor power	5.5kw
Forming speed	25m/min
Voltage	380v,50hz
Cutting	hydraulic cutting after roll forming
Weight	5400 kg

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
