Name: Solar Panel Frame Strut Bar Roll Forming Machine 41x41mm 41x21mm
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Solar Panel Frame Strut Bar Roll Forming Machine 41x41mm 41x21mm

Roll Forming Machine 41x41mm

Strut Bar Roll Forming Machine

Roll Forming Machine 41x21mm

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Rangka Panel Surya Strut Bar 41x41mm 41x21mm

Nilai jual utama:

Otomatis

Kapasitas Produksi:

8-9m/mnt

Voltase:

380V 50Hz 3Phase

Dimensi (P*L*T):

sekitar 9500*1000*1200Mm

Stasiun hidrolik:

5.5kw

Berat:

10.000 kg

Bahan roller:

45 # baja tempa

Jenis pemotongan:

Pemotongan hidrolik

Ketipisan bergulir:

1.5-2.5mm

Materi Pemotongan:

CR12MOV

Menyoroti:

Roll Forming Machine 41x41mm

Strut Bar Roll Forming Machine

Roll Forming Machine 41x21mm

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

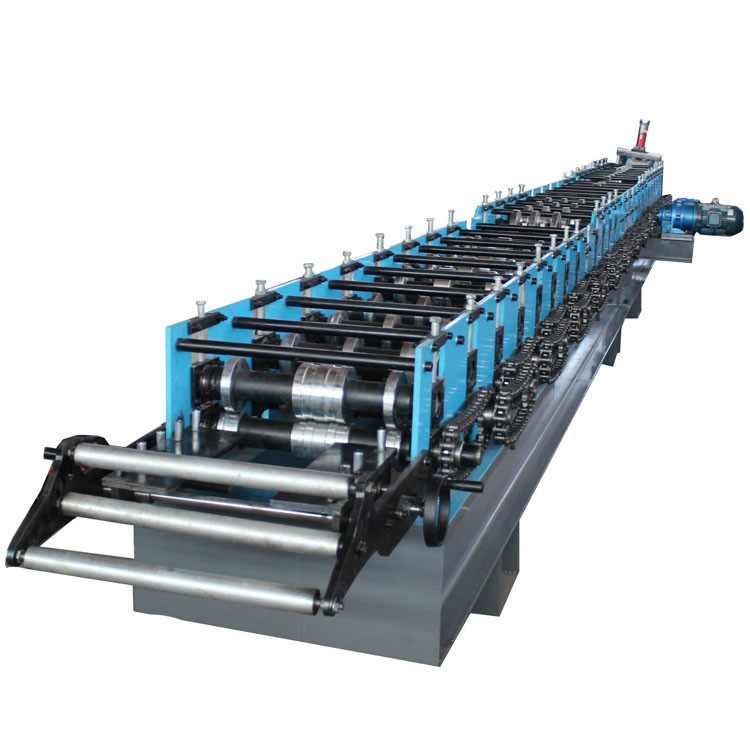

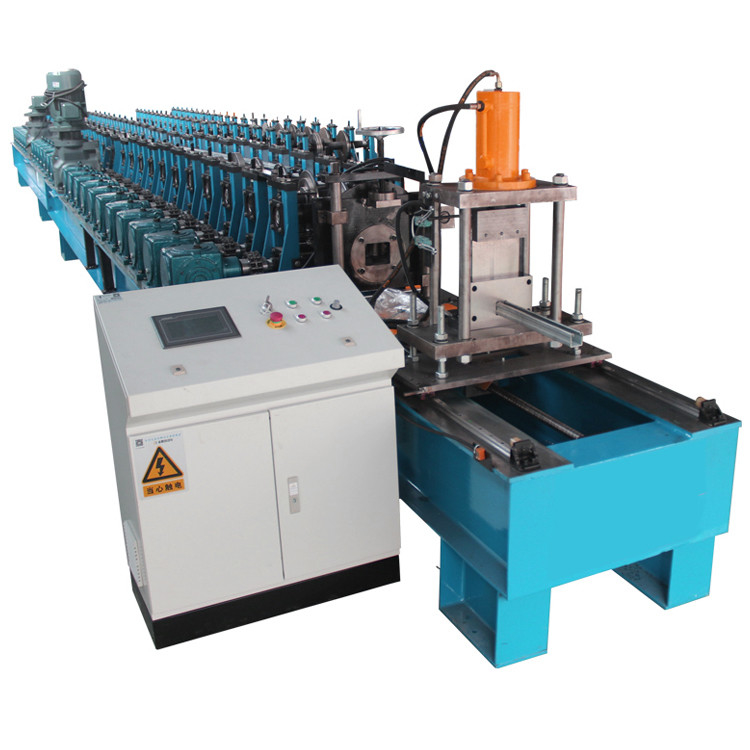

Solar Panel Frame Strut Bar Roll Forming Machine 41x41mm 41x21mm

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.

Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine,Solar Panel Frame Strut Bar Roll Forming Machine etc.

specifications

Forming stations	About 20-22 stations or according to you profile drawings
Machine structure	Optional 1: wall panel structure Optional 2: cast iron strcture
Rollers material	GCr15,quenching treatment:HRC58-62; Cr12, SKD11(optional)
Way of drive	Chain drive or Gearbox drive(optional)
Raw material request	Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel
Whole line working speed	0-25m/min
Length precision	6+-1.0mm
Punching system	Hydraulic punching or punching press machine(option)
Cutting system	Non stop cutting or servo Tracking cutting
Inverter	Siemens,Mitsubishi, panasonic (option Brand)
PLC	Siemens,Mitsubishi, panasonic (option Brand)
Main Power with reducer	18.5KW WH Chinese Famous
Cutting holder	Servo following cutting
Motor power of hydraulic station	5.5KW
Cutting type	Hydraulic drive, cut after forming
Material of cutting blade	Cr12Mov , quenching process

2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
