Name: Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: pintu rana
Price: 12000.00 USD
Availability: InStock

Rumah > Produk > Mesin pembentuk gulungan pintu rana >

Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged

Aluminum Shutter Door Rolling Machine

Forged Shutter Door Rolling Machine

Shutter Door Rolling Machine 380V 50Hz

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

pintu rana

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Rolling Pintu Rana Aluminium 380V 50Hz Kelas Tinggi No.45 Ditempa

Bahan mentah:

Galvalum, Galvanis, PPGI

Berat:

Sekitar 3,5 ton

Ketebalan material:

0,3 mm - 0,8 mm

Voltase:

380V 50Hz 3Phase

Kapasitas Produksi:

15-20 m/mnt

Bahan poros:

Kelas Tinggi No.45 Ditempa

Bahan Pemotong::

Baja cetakan CR12 dengan perawatan yang dipadamkan

Menyoroti:

Aluminum Shutter Door Rolling Machine

Forged Shutter Door Rolling Machine

Shutter Door Rolling Machine 380V 50Hz

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik

Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik

Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Dapatkan Harga Terbaik

Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

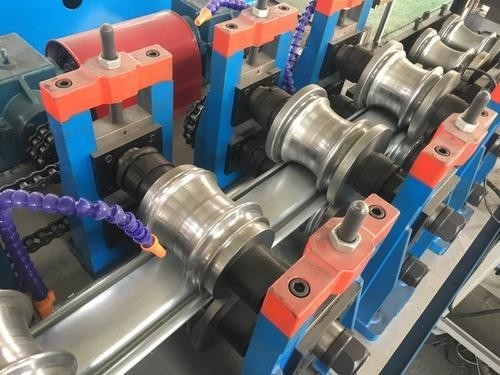

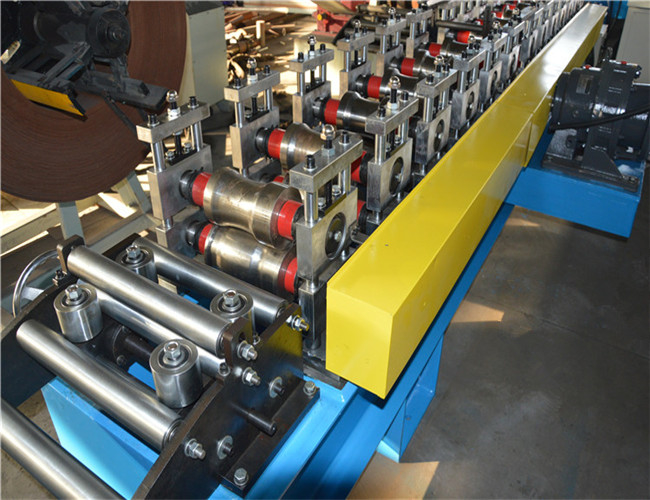

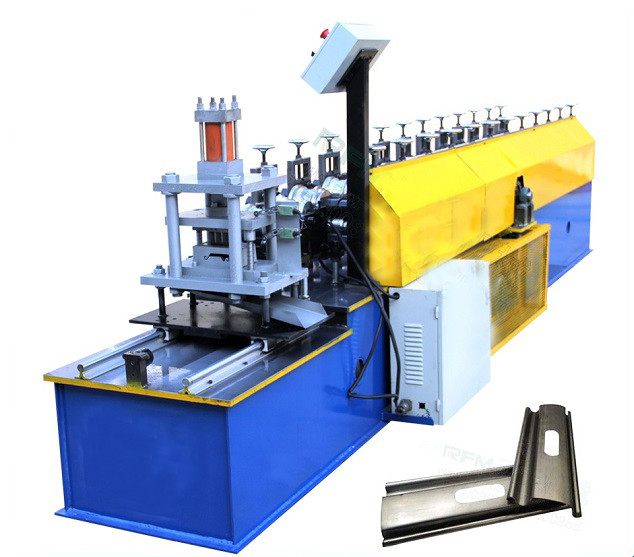

Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged

1. This shutter door roll forming machine is widely used for garage door /commercial door / industrial door and so on .
2. A whole shutter door main inculde three parts , shutter door salt and sliding U guide rail with bottom strip . These three part work together to give us a safity environment .
3. it can embossing different patterns according to customer's requirements. Meanwhile, it has manual and automatic two operate model, in this way, client can easy operat this machine.
As to the shutter door can protect the shop or garage well , it is very popular in the world and has a large market .

Specification

Machine Specifications
Size	About 5.6mx1.2mx1.3m(length x width x height)
Color	Main color: blue or as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.5-0.8mm or 0.8-1.5mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	11-12
Diameter of forming rollers shafts	60mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 4kw
Electric Power requirement	Hydraulic unit motor power: 3kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
