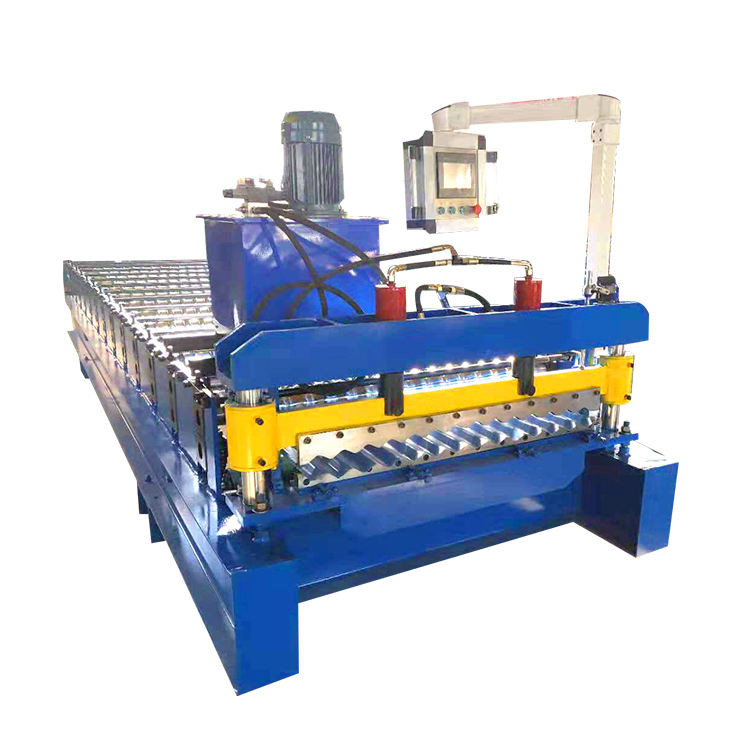

Name: Galvanized Corrugated Roof Roll Forming Machine 0.3 - 0.8mm Thinckness
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Galvanized Corrugated Roof Roll Forming Machine 0.3 - 0.8mm Thinckness

ISO Corrugated Roof Roll Forming Machine

0.8mm Corrugated Roof Roll Forming Machine

Galvanized Corrugated Roll Forming Machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Bergelombang Berkualitas Tinggi Mesin Roll Forming Dingin

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium, Tembaga

Voltase:

380V 60 Hz atau sesuai kebutuhan klien

Kapasitas Produksi:

8-12 meter/menit

Ketipisan bergulir:

0.3-0.8mm

Bahan poros:

45# Diameter Luar Baja: 75mm

Komponen inti:

Motor, Pompa, Gearbox, PLC

Cutting Blade Material:

Cr12Mov dengan perlakuan quenching

Nilai jual utama:

Umur layanan yang panjang

Berat:

3,5T

Dimensi (P*L*T):

6000*1300*1100

Menyoroti:

ISO Corrugated Roof Roll Forming Machine

0.8mm Corrugated Roof Roll Forming Machine

Galvanized Corrugated Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

High Quality Corrugated Roof Roll Forming Machine Cold Roll Forming Machine

As a production base of cold roll forming machines with a long history, we have cooperated with a number of production plants and related enterprises to focus on the design, development, and production of cold-formed machines. All products meet international quality standards and are highly evaluated in different markets around the world, including Asia, Africa, Europe, South America, Oceania and more.

Packing and shipping

1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Specification

1	Suitable to process	color steel
2	Effective width	850mm
3	Feeding width	1000mm
4	Rollers	11rows
5	Diameter of roller	70mm
6	Thickness of steel	0.3-0.8mm
7	Motor power	4kw
8	Pump power	4kw
9	Working speed	8-12m/min
10	Material of cutting knives	Cr12 quenching
11	Material of roller	45# steel quenching
12	Main frame	300H steel
13	Voltage	as customer's requirement
14	Weight	about 3.5T

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
