Roofing Sheet Making Machine Roll Forming With 18 Stations Simple Structure

15m/min Roofing Sheet Making Machine

18 Stations Roofing Sheet Making Machine

PPGI Roofing Sheet Making Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

900

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Bahan mentah:

PPGI/AL

Berat:

1300kg

Dimensi (P*L*T):

10,5*1,5*1,4m

Nama Produk:

Mesin Pembuat Lembaran Atap Roll Forming Dengan 18 Stasiun Struktur Sederhana

Kapasitas Produksi:

15 m/mnt

Lebar bahan:

1220mm/1450mm

Bahan roller:

380V 3 fase 50Hz

Sistem Kontrol PLC:

Otomatis

Ketebalan:

0.3-0.8mm

Kekuatan:

15kw+5.5KW

Menyoroti:

15m/min Roofing Sheet Making Machine

18 Stations Roofing Sheet Making Machine

PPGI Roofing Sheet Making Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Roofing Sheet Making Machine Roll Forming With 18 Stations Simple Structure

This machine mainly producing steel roof/ wall sheet .The final product trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

Article No.	Item Name	Specification
1	Width of feeding material	914/1000/1220/1250 mm coil sheet
2	Thickness of feeding material	0.3-0.8 mm coil sheet
3	Roller station	13 stations
4	Shaft Diameter	75 mm
5	Productivity	8-15 m/min
6	Rollers' material	45# steel with 0.05 mm chrome
7	Shaft material	45# steel with 0.05 mm chrome
8	Weight	6.5 tons
9	length	5.5 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	5 tons
13	Motor	5.5 kw
14	Driving way	Chain transmission
15	Chain size	1 inch
16	Cutting system	Hydraulic cutter

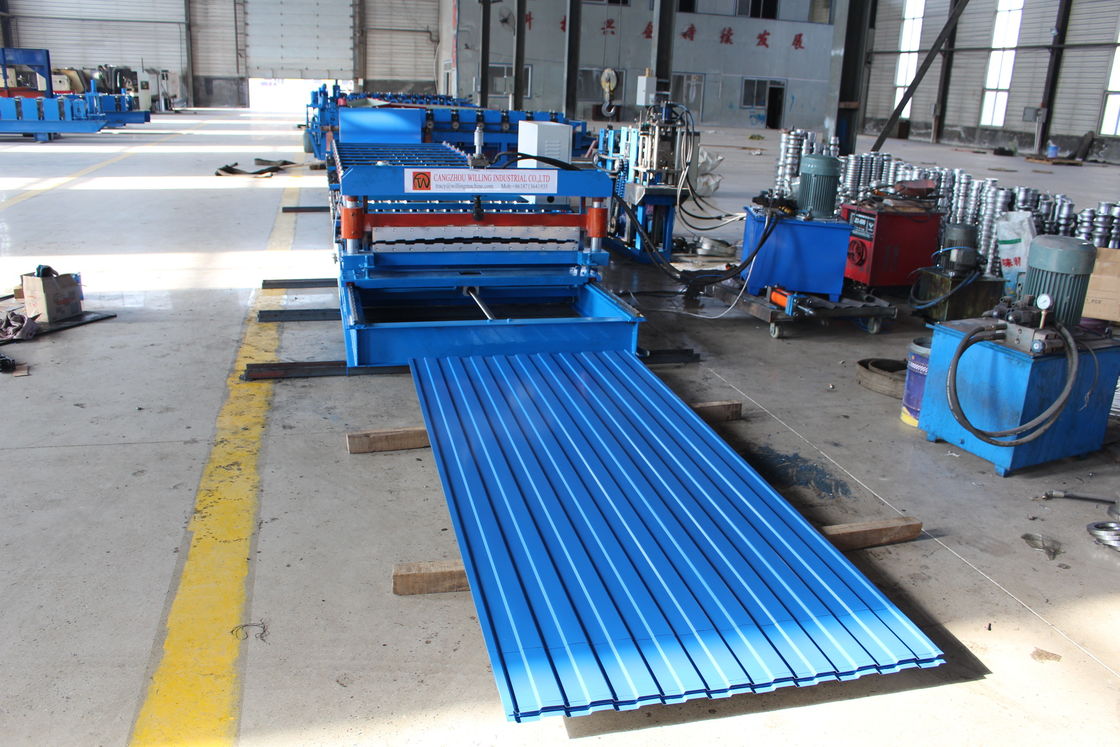

Roofing Sheet Making Machine Roll Forming With 18 Stations Simple Structure 0
