Full Automatic 7 Ribs High Capacity roll Forming Machine 900 Long Span

7 Ribs Roof Roll Forming Machine

7 Ribs Roll Forming Machine

900 Long Span Roll Forming Machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

900

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Bahan mentah:

PPGI/AL

Berat:

1300kg

Dimensi (P*L*T):

8200mm(P)*1550mm(L)*1150mm(T)

Nama Produk:

Mesin Roll Formg Kapasitas Tinggi 7 Tulang Rusuk Otomatis Penuh 900 Rentang Panjang

Pembentukan kecepatan:

20-30m/mnt

Lebar bahan:

1220mm/1450mm

Bahan roller:

380V 3 fase 50Hz

Disesuaikan:

Disesuaikan

Ketebalan:

0.3-0.8mm

Kekuatan:

15kw+5.5KW

Menyoroti:

7 Ribs Roof Roll Forming Machine

7 Ribs Roll Forming Machine

900 Long Span Roll Forming Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

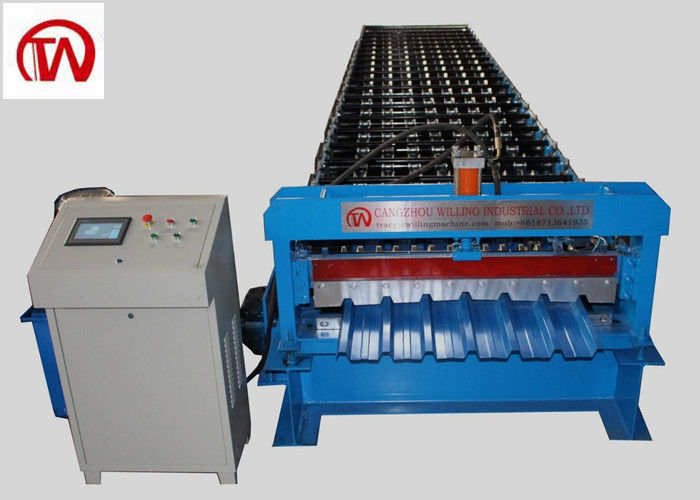

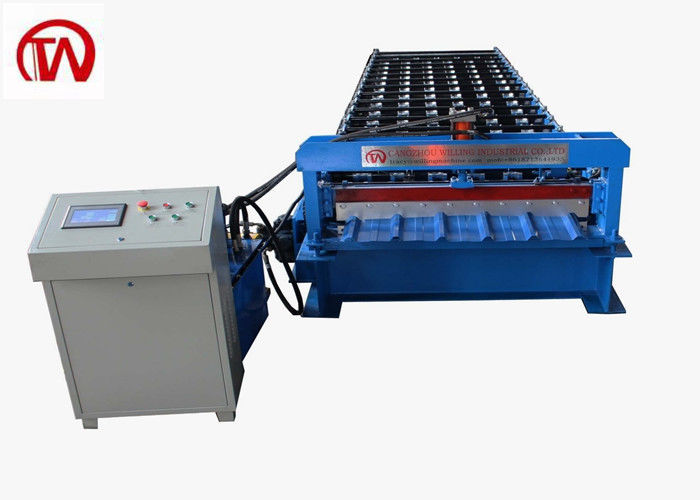

Full Automatic 7 Ribs High Capacityroll Formg Machine 900 Long Span

7 ribs Trapezoidal sheet machine roof sheet roll forming machine,market is mainly producing steel roof/ wall sheet .The final products have two types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

No.	Full Automatic 7 Ribs High Capacityroll Formg Machine 900 Long Span
1	Suitable to process	Al,Colored Steel plate
2	Width of the plate	1220mm/1450mm
3	Rollers	22 station
4	Dimension(lwh)	8200mm(L)1550mm(W)1150mm(H)
5	Power	7.5kw
6	Thickness of the plate	0.2-0.8mm
7	Productivity	8~15m/min
8	Diameter of the roller	￠70mm
9	Voltage	380V 50Hz 3phases

Full Automatic 7 Ribs High Capacity roll Forming Machine 900 Long Span 0
