Name: Full Automatic Roof Sheet Glazed Tiles Roll Forming Machine Steptile Type
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: tangga
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Full Automatic Roof Sheet Glazed Tiles Roll Forming Machine Steptile Type

fullautomatic glazed tiles roll forming machine

7.5kw glazed tiles roll forming machine

steptile type glazed roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Nomor model:

tangga

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Ubin Mengkilap Lembaran Atap Otomatis Penuh Tipe Steptile

Lebar:

0-3 m/mnt

Berat:

4500 kg

Bahan roller:

380V 50Hz 3Phase

Bahan roller:

45# baja

Membentuk Tenaga Motor:

7,5 kW

Spesifikasi:

8500*1300*1200mm

Kekuatan:

7,5 kW

Menyoroti:

fullautomatic glazed tiles roll forming machine

7.5kw glazed tiles roll forming machine

steptile type glazed roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

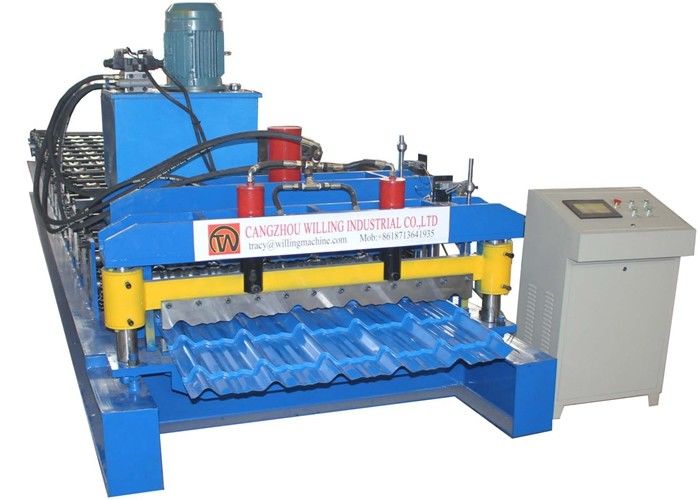

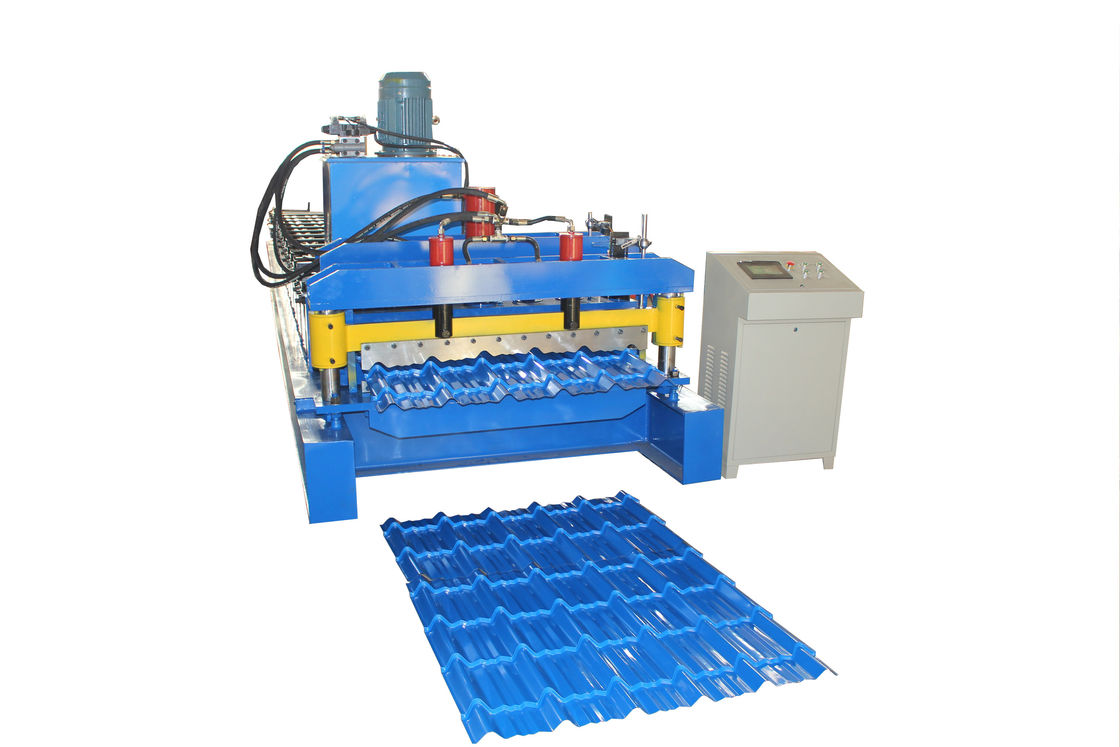

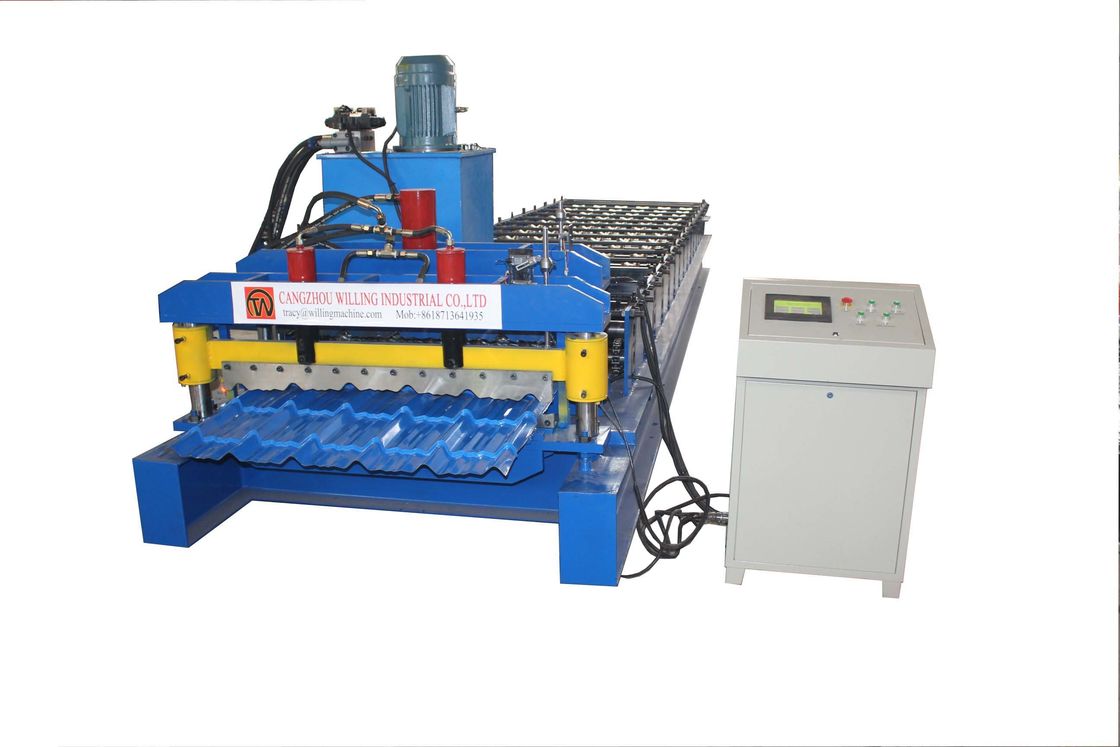

Full Automatic Roof Sheet Glazed Tiles Roll Forming Machine Steptile Type

The whole line working speed is about 2-5m/min.,max working speed could be 5 meters per minute.Feeding material width should be confirmed before machine design .the width are changeable,Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .

Specification

Suitable material	Strip steel
Working speed	0- 3 m/min
Main motor power	7.5 kw
Hydraulic station power	4 kw
Thickness of material	0.3-0.8 mm
Roller station	16 stations
Driving mode	Chain
Electric tension	380 V /3 phase/ 50 HZ
Material of roller	45# forged steel
Material of cutting	Cr12

Application

Steptile roll forming machine are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found in our company.

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
