Name: Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Crimping Hidraulik
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve

ppgl roofing forming machine

hydraulic crimping roofing forming machine

hydraulic crimping roof roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Crimping Hidraulik

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Atap Kurva Logam Lengkungan Crimping Hidraulik

Bahan mentah:

PPGL,GL,PPGI,GI,

Dimensi (P*L*T):

2050*1500*1300

Ketipisan bergulir:

0,3-0,7mm

Bahan poros:

45# Diameter Luar Baja: 70mm

Bingkai utama:

Baja 350H

Sistem Pengendalian:

PLC

Voltase:

220V/380V/440V

Menyoroti:

ppgl roofing forming machine

hydraulic crimping roofing forming machine

hydraulic crimping roof roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

40 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

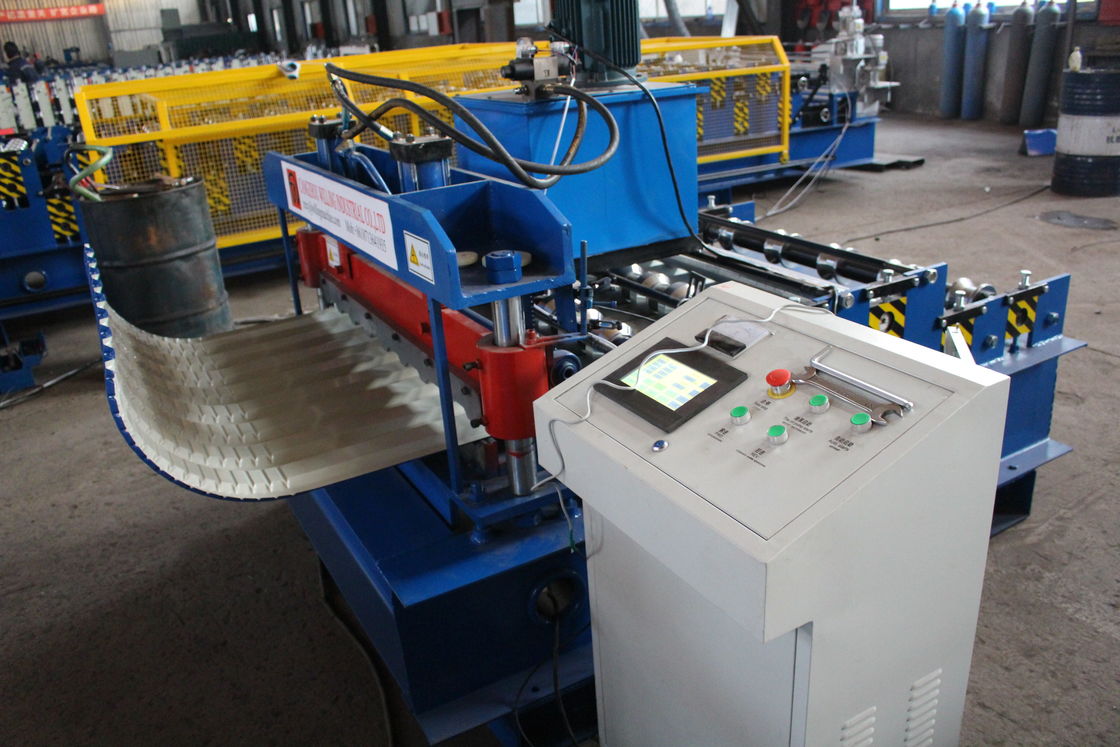

Hydraulic Crimping Arch Metal Curve Roofing Forming Machine

The vertical seam roof bending machine is used to bend the vertical seam roof truss into concave and convex shape, roll forming in three steps, and select gear transmission. It can bend both aluminum plates and metal plates. This vertical roof can be used to build more beautiful steel houses and large sports halls. With such a small design, you can take this machine anywhere in your steel construction project.

Specification

Product name	Color Steel Roof Curving Machine
Size	15008502000mm
Weight	1200KGS
Voltage	380V/50HZ/3PH
Motor Power	4KW
Hydraulic Power	3KW
Motor for changing models Power	0.37KW
Curved Thickness for Aluminum	0.8-1.2mm
Curved Thickness for Steel	0.7-1.0mm
Width of straight roofing to curve	300mm to 600mm
Min.Width of Tapered Roofing to Curved	250mm
Max.Width of Tapered Roofing to Curved	500mm
Working Speed	10-16m/min

Application

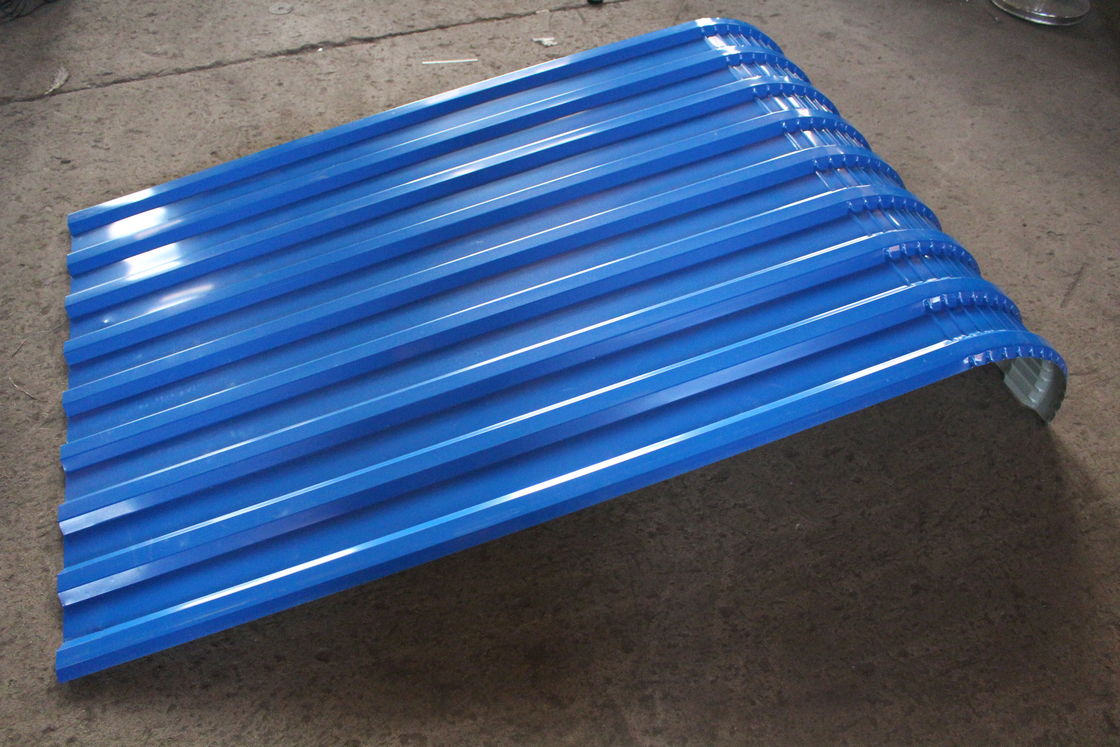

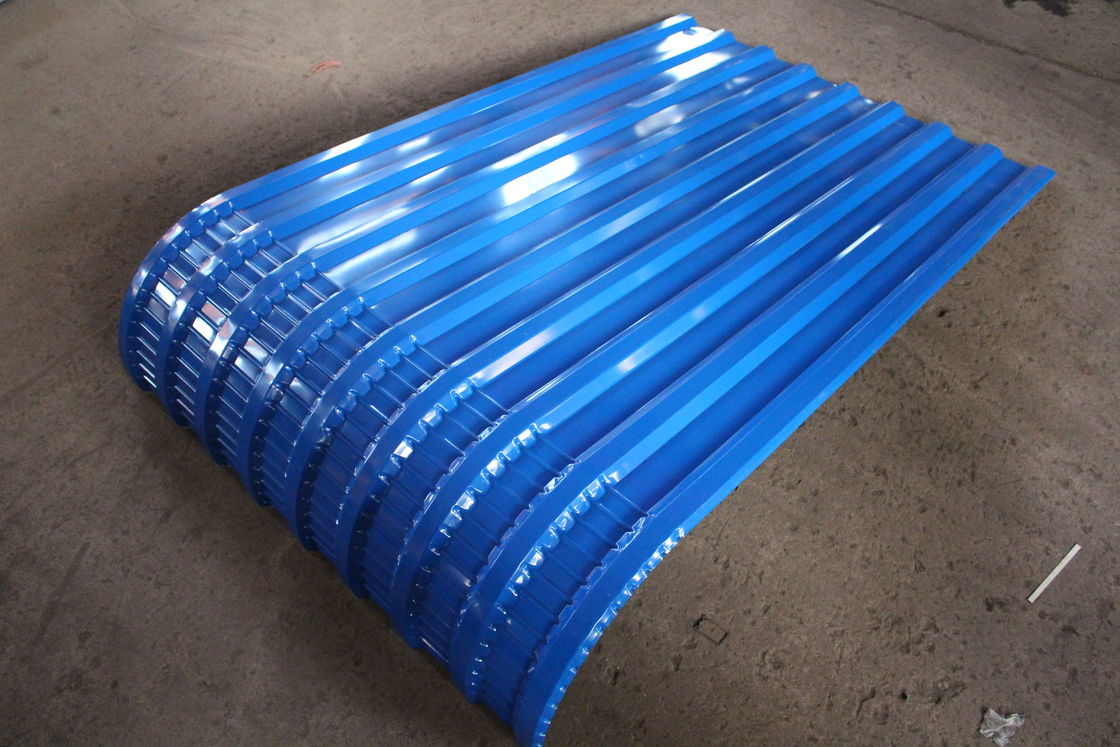

This Curved roofing arch sheet building machine hydraulic crimping machine will be very smooth and beautiful without any scratch on surface.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.Fully Automatic Control System with PLC.Easy operation: Key in the length and quantity on the control panel.

Payment terms

40% in advance.

60% before the shipment is processed.

Delivery

FOB Tianjin Xingang Port or CNF Designated port

The Delivery Time: 30 days after the down payment is received

Ppgl Hydraulic Crimping Arch Roofing Forming Machine Metal Curve 0
