Name: Size Changeable Profile Cable Tray Roll Forming Machine Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Baki kabel
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Size Changeable Profile Cable Tray Roll Forming Machine Plc Control

changeable cable tray roll forming machine

profile cable tray roll forming machine

plc control cable tray making machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

Nomor model:

Baki kabel

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Ukuran Mesin Roll Forming Baki Kabel Profil yang Dapat Diubah Kontrol PLC

Lebar profil:

90-600mm

Tinggi profil:

50mm-100mm

Voltase:

380V 50Hz 3PH sesuai permintaan

Motor utama:

7,5 kW

Ketebalan material:

Kumparan Galvanis 1,0-2,0mm

Otomatisasi:

Otomatis

Bahan roller:

45 # baja tempa

Ukuran Panjang mesin:

11000mm* Lebar 800mm* Tinggi 1000m

Menyoroti:

changeable cable tray roll forming machine

profile cable tray roll forming machine

plc control cable tray making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

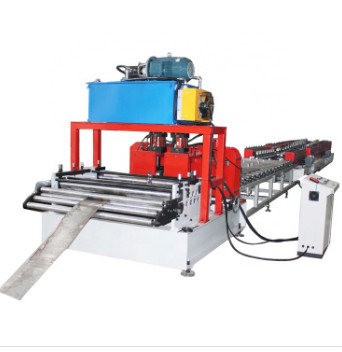

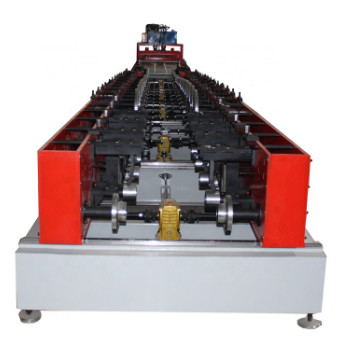

Size Changeable Profile Cable Tray Roll Forming Machine PLC Control

This cable ladder roll forming machine adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.Working Speed: about 0-15 m/min ( excluding punching & cutting time);

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	7.5 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	as per requested
the effective of steel sheet	as per requested.
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5500 kg
Voltage	380 volt/3PH as per requested
Roll stand	22 Roller station
PLC	overseas Brand
Dimension	11.4m1.3m1.2m
Roller material	#45 steel
Frequency converter	containing
Computer operating screen	touch screen
Material of cutter	Cr12

Application

Cable tray is used to support and protect when wire electricity, electric power, communication control and instrumentation cable.
FMS compose this machinery as a cassette replacement type or automatic width control type in accordance with product.
And we supply equipment that is suitably designed for the use of product which can be formed after perforating a partition and other panels.

Payment terms and Delivery

40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
