Name: Trapezoid Hydraulic Shearing Ibr Roll Forming Machine With Automatic Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: tipe IBR
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Trapezoid Hydraulic Shearing Ibr Roll Forming Machine With Automatic Control

hydraulic shearing ibr roll forming machine

automatic control ibr roll forming machine

hydraulic shearing trapezoid roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

tipe IBR

Hubungi Kami

Minta Penawaran Harga

Trapezoid Hydraulic Shearing Ibr Roll Forming Machine With Automatic Control

Detail Produk

Nama Produk:

Mesin Roll Forming IBR Geser Hidrolik Trapesium Dengan Kontrol Otomatis

Bahan mentah:

Galvalum, Galvanis, PPGI, GL

Sistem kontrol:

PLC

Ketebalan:

0,3-0,7mm

Jenis ubin:

mesin roll forming / mesin bahan bangunan

Kondisi:

Baru

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

4.5kw

LEBAR BAHAN BAKU:

seperti yang diminta

Berat mesin:

4000 kg

Menyoroti:

hydraulic shearing ibr roll forming machine

automatic control ibr roll forming machine

hydraulic shearing trapezoid roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

25 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

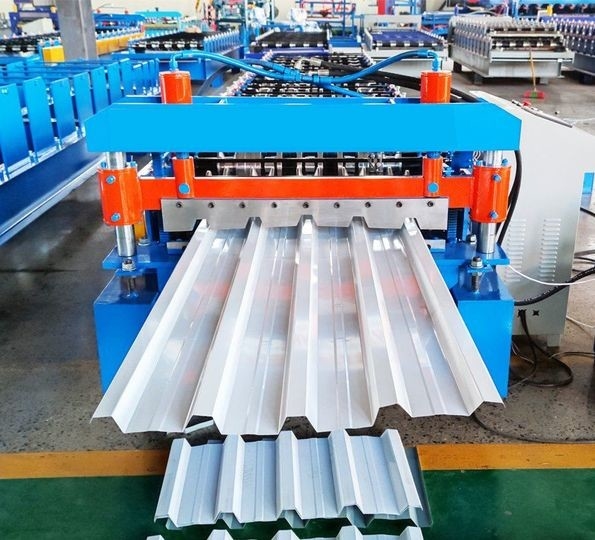

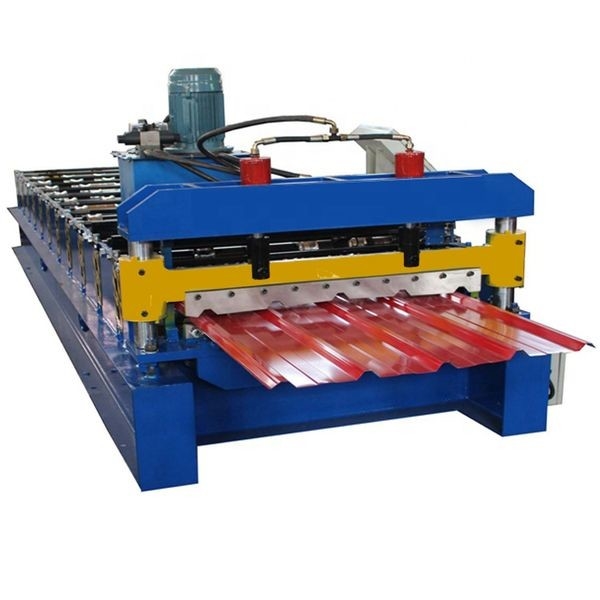

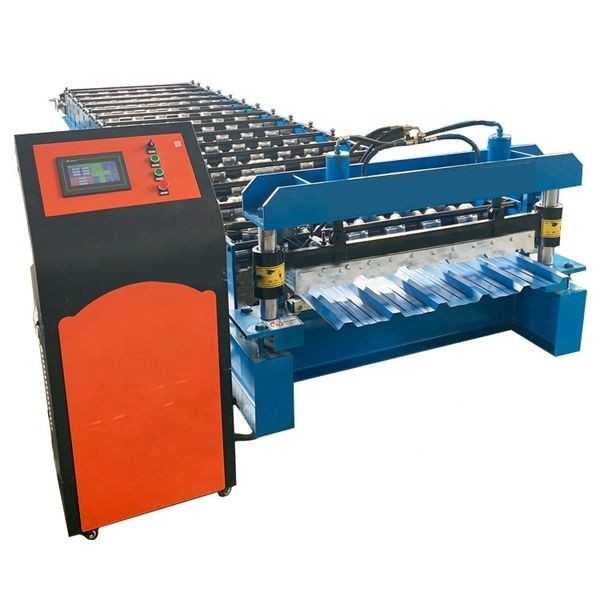

Trapezoid Hydraulic Shearing IBR Roll Forming Machine With Automatic Control

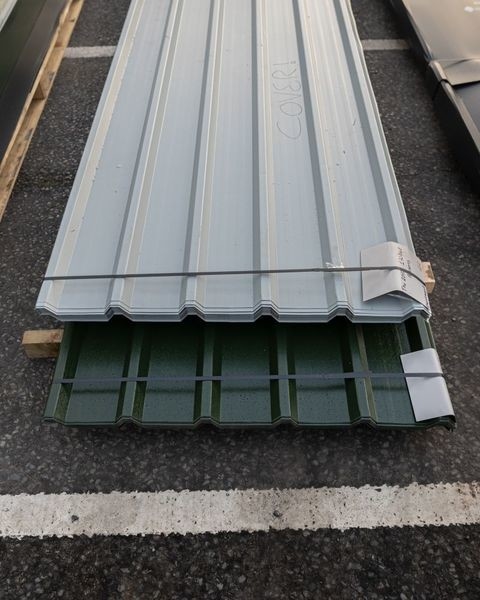

This machine takes GI/PPGI as raw material, through a series of steps and can produce the barrel type roofing sheets.

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

Specification

No.	Item	Description
1	Coil	GL,PPGI, Aluminum
2	Raw Material Thickness	0.3-0.7mm
3	Working Speed	15-20 m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	5500 mm1200 mm1100 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	3.5KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

FMS produce wide range products of metal sheet cold roll forming machines as follows:
1) for Metal Building Industry,like quick change CZ purlin machine, light gauge steel framing machine ,roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line , hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc..

Advantage

1. We use International quality standard.

2. Adopting advanced world famous brand components in computer parts. Like Siemens, Schneider, Sony, etc.

3. Running in a high automatization and intellectualization, no pollution.

Trapezoid Hydraulic Shearing Ibr Roll Forming Machine With Automatic Control 0
