Name: Galvanized Steel Floor Deck Forming Machine Trapezoidal Profile
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

Galvanized Steel Floor Deck Forming Machine Trapezoidal Profile

galvanized steel floor deck forming machine

trapezoidal profile floor deck forming machine

7 kw floor deck roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Profil Trapesium Mesin Pembentuk Dek Lantai Baja Galvanis

Kecepatan kerja:

8-15m/mnt

Dimensi (P*L*T):

7000*1700*1600Mm

Jaminan:

1 tahun

Kekuatan (w):

7 kW

Sistem Pengendalian:

PLC

Menyoroti:

galvanized steel floor deck forming machine

trapezoidal profile floor deck forming machine

7 kw floor deck roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

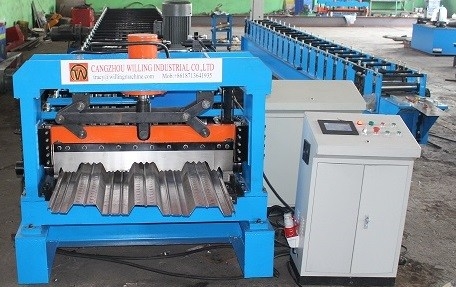

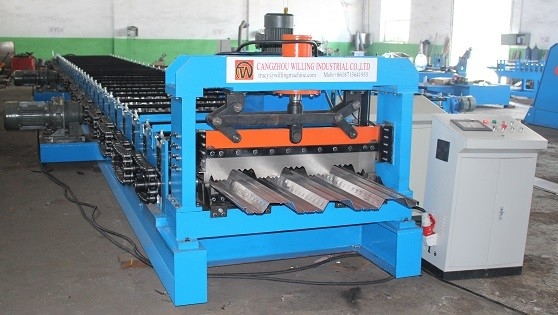

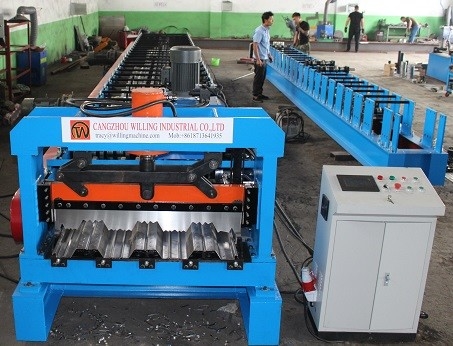

Galvanized Steel Floor Deck Forming Machinet Trapezoidal Profile

The floor Deck making machine is a special production line equipment specially designed for the cold roll processing industry of the metal plate. It can make product according to the user's requirements,The production equipment has the characteristics of low noise, stable gearbox, convenient operation and exquisite rolling products.

Specification

No.	Item	Description
1	Coil	PI, PPGI, Aluminum
2	Raw Material Thickness	0.3-1.5mm
3	Working Speed	3-5 m/min ( not including the cutting time)
4	Roller Station	16 Raws
5	Dimension (LWH)	8000 mm1500 mm1500 mm
6	Machine Weight	5800 KG
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	240V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The floor deck combination machine is suitable for various irregular floor structures, and has very prominent application areas in different types of prefabricated panels and high -speed railway structures and buildings. The use of floor deck has many advantages, which can help users save installation costs and reduce disassembly difficulty. At the same time, it can also save decoration time.

Advantage

The material selection of the floor molding machine is economical, and the comprehensive cost advantage is particularly obvious. That is to say, the product is very effective, and its product can improve the quality and efficiency of the laying. Large -scale. Reduce building costs and help users save decorative costs; after using equipment, it can also reduce the construction period and reduce the cost of on -site installation..

Galvanized Steel Floor Deck Forming Machine Trapezoidal Profile 0
