Name: Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Hujan- Talang
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line

galvalume rain gutter roll forming machine

drainage rain gutter roll forming machine

fully automatic rain gutter making machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Hujan- Talang

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Lini Produksi Sistem Drainase Mesin Roll Forming Talang Hujan Sepenuhnya Otomatis

Bahan mentah:

Galvalum, Galvanis

Voltase:

380V 50Hz 3Phase

Kecepatan:

8-15m/mnt

Sistem Pengendalian:

PLC

Penggunaan:

Talang Air untuk Atap

Menyoroti:

galvalume rain gutter roll forming machine

drainage rain gutter roll forming machine

fully automatic rain gutter making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Fully Automatic Rain Gutter Roll Forming Machine Drainage System Production Line

Water gutter roll forming machine popular sell in many countries, size can be coustomized according to your request, common thickness between 0.7-1.5 mm, Common speed 10-20 m/min. we sell lots of such machine to Iraq, Egypt, India, Chile, Zambia, etc.

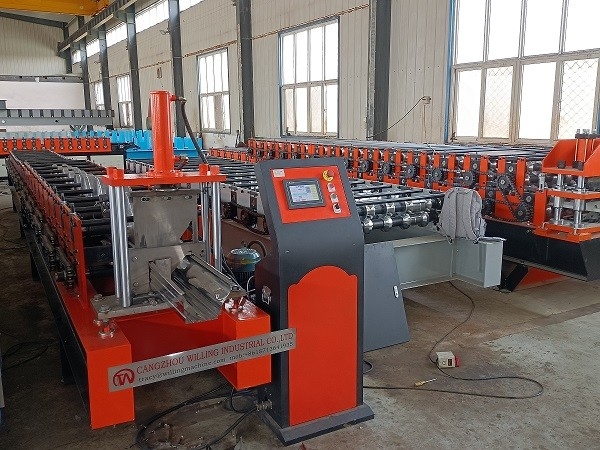

Rain Gutter Roll Forming Machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.7 mm - 1.5 mm
3	Working Speed	10-20 m/min
4	Roller Station	18 Stations
5	Dimension (LWH)	8000 mm800 mm1200 mm
6	Machine Weight	7000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	4.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	50 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

For about 10 years, we have been exporting high-standard roll forming machines.
We have a mature foreign trade team, senior engineers, and experienced workers to meet your needs.
We have machines in more than 90 countries and regions, and we maintain good business relationships.
For the life of any machine, we offer a one-year free warranty and free service.

Application

Our Rain Gutter Sheet Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
