Name: Square And Round Downspout Roll Forming Machine Aluminium Rain For Building
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Cerat Persegi/Bulat Ke Bawah
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Square And Round Downspout Roll Forming Machine Aluminium Rain For Building

round downspout roll forming machine

building downspout roll forming machine

aluminium square downspout machine

Tempat asal:

CINA

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Cerat Persegi/Bulat Ke Bawah

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Cerat Persegi Dan Bulat Bawah Hujan Aluminium Untuk Bangunan

Bahan mentah:

PPGI

Voltase:

seperti yang diminta

Ketebalan:

0,3-0,8 mm

Sistem Pengendalian:

PLC

Penggunaan:

Atap

Menyoroti:

round downspout roll forming machine

building downspout roll forming machine

aluminium square downspout machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

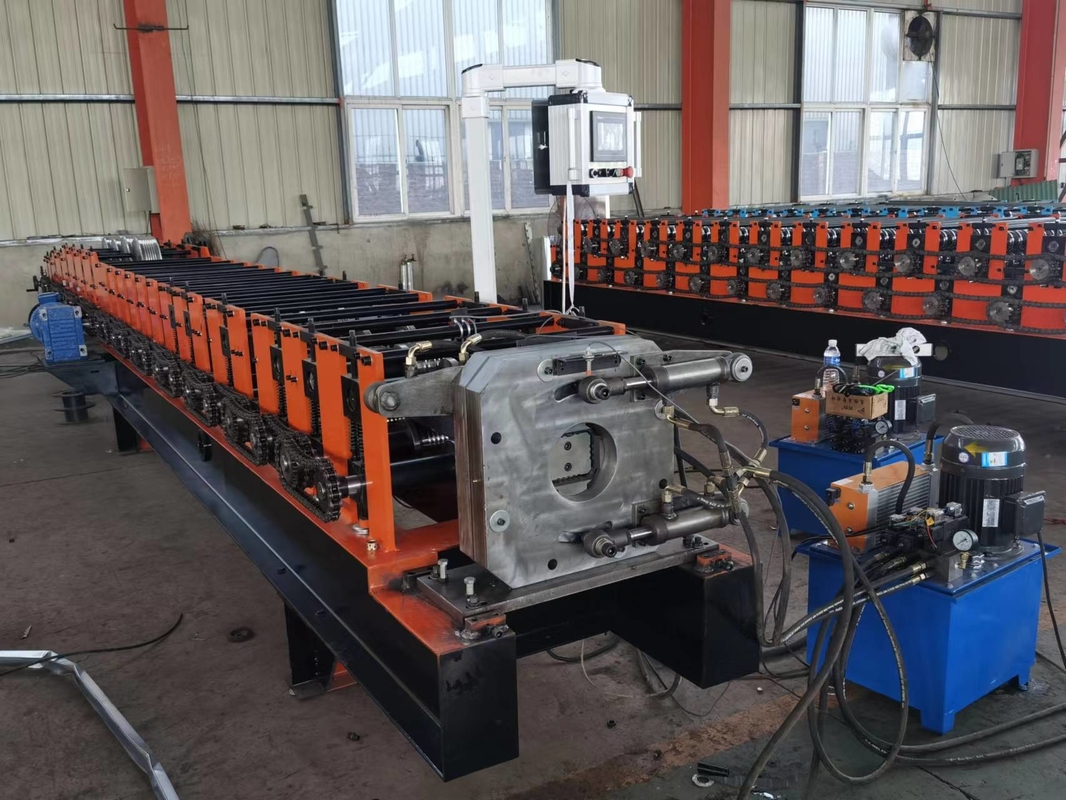

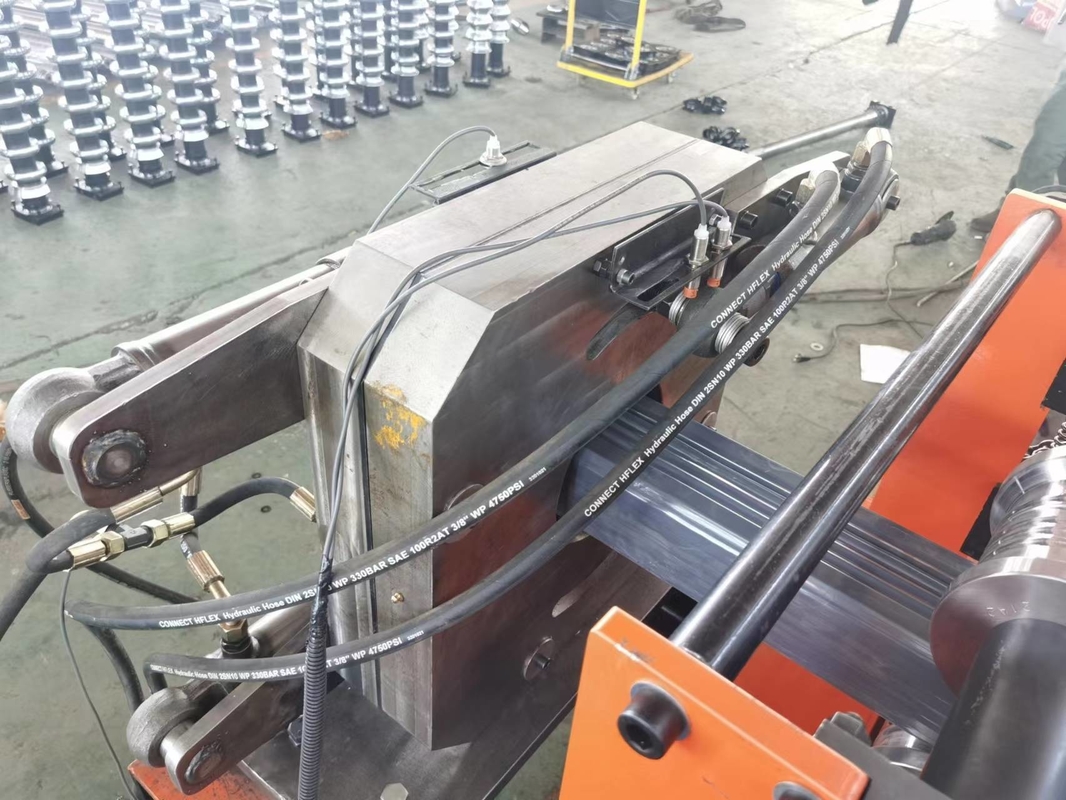

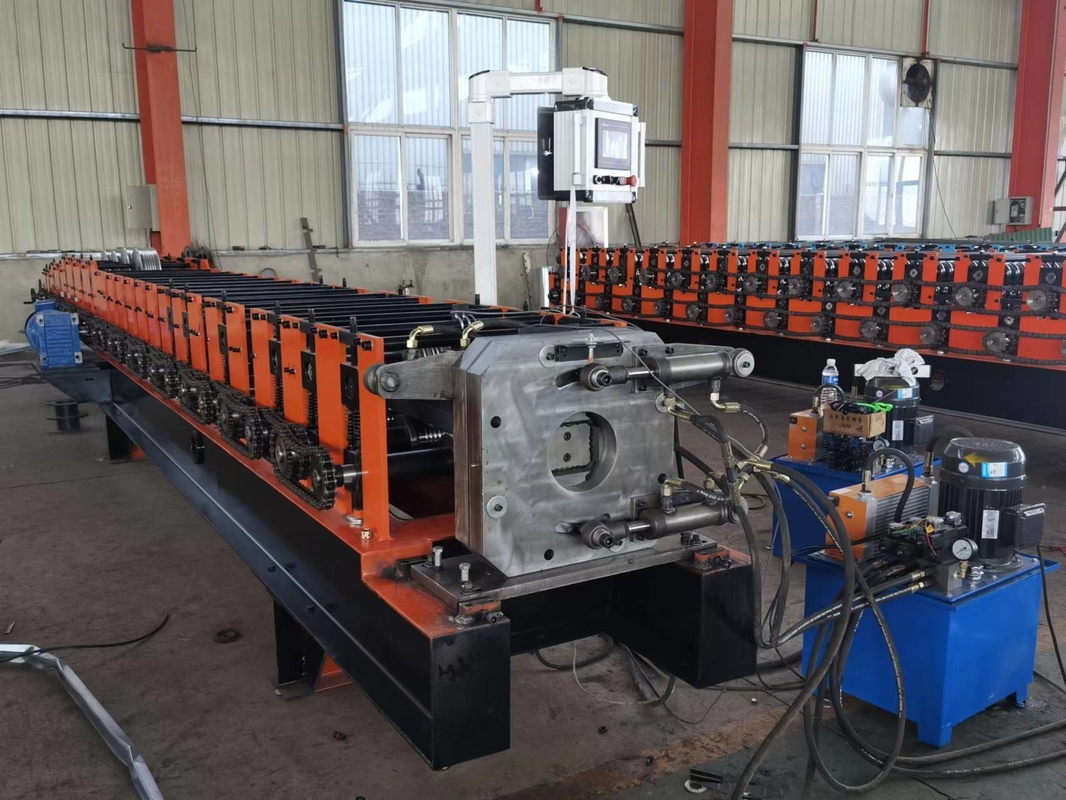

Square And Round Down Spout Roll Forming Machine Aluminium Rain For Building

This downpipe roll forming machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, automatically cut to length.
The equipment adopts PLC control, AC frequency, and adjusting the speed technology, and it realizes the continuous automatic production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.
Our downpipe roll forming machine has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance, and so on.

Specification

No.	Item	Description
1	Coil	PPGI
2	Raw Material Thickness	0.3 mm - 0.6 mm
3	Working Speed	7-15 m/min
4	Roller Station	26 Stations
5	Dimension (LWH)	8000 mm800 mm1200 mm
6	Machine Weight	6000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	4 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining

Installation

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.

Guarantee

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).

Payment terms

40% in advance

60% is paid before shipping
