Name: Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Rain Pipe Downspout Roll Forming Machine Hydraulic Cutting System

ppgi pipe downspout roll forming machine

hydraulic cutting downspout roll forming machine

hydraulic cutting system downspout machine

Tempat asal:

CINA

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pipa Hujan Bawah Sistem Pemotongan Hidrolik

Bahan mentah:

PPGI

Voltase:

seperti yang diminta

Kondisi:

Baru

Sistem Pengendalian:

PLC

Penggunaan:

Atap

Menyoroti:

ppgi pipe downspout roll forming machine

hydraulic cutting downspout roll forming machine

hydraulic cutting system downspout machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

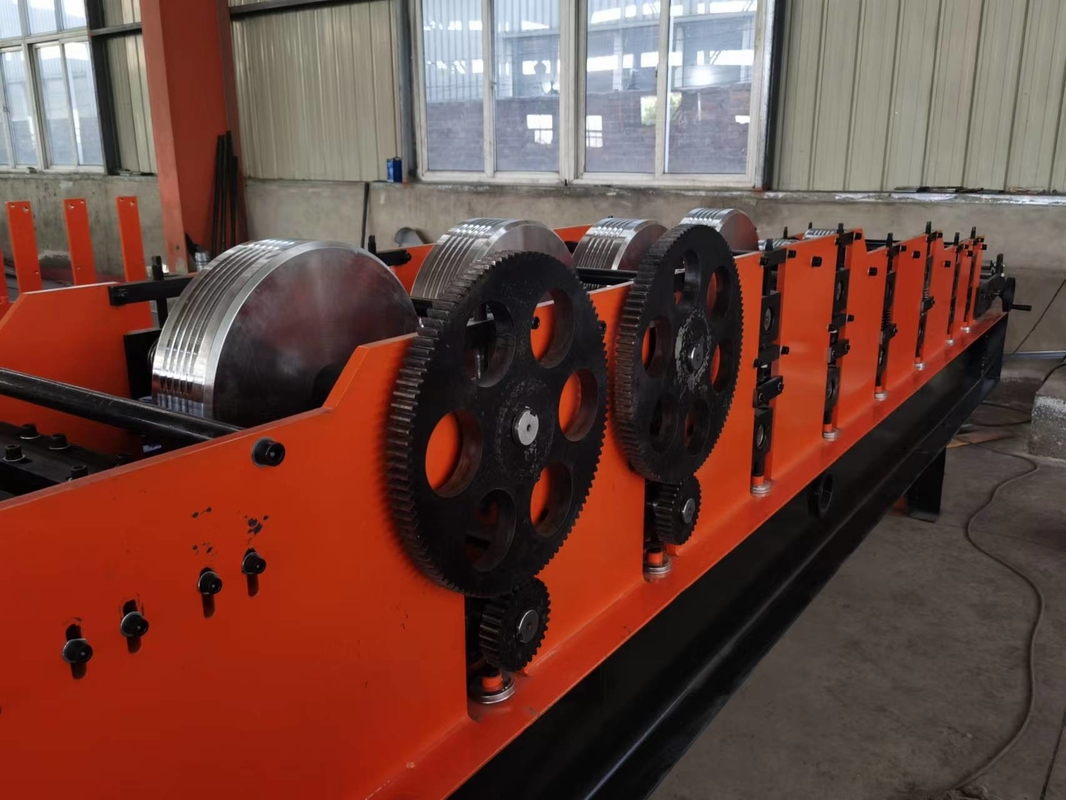

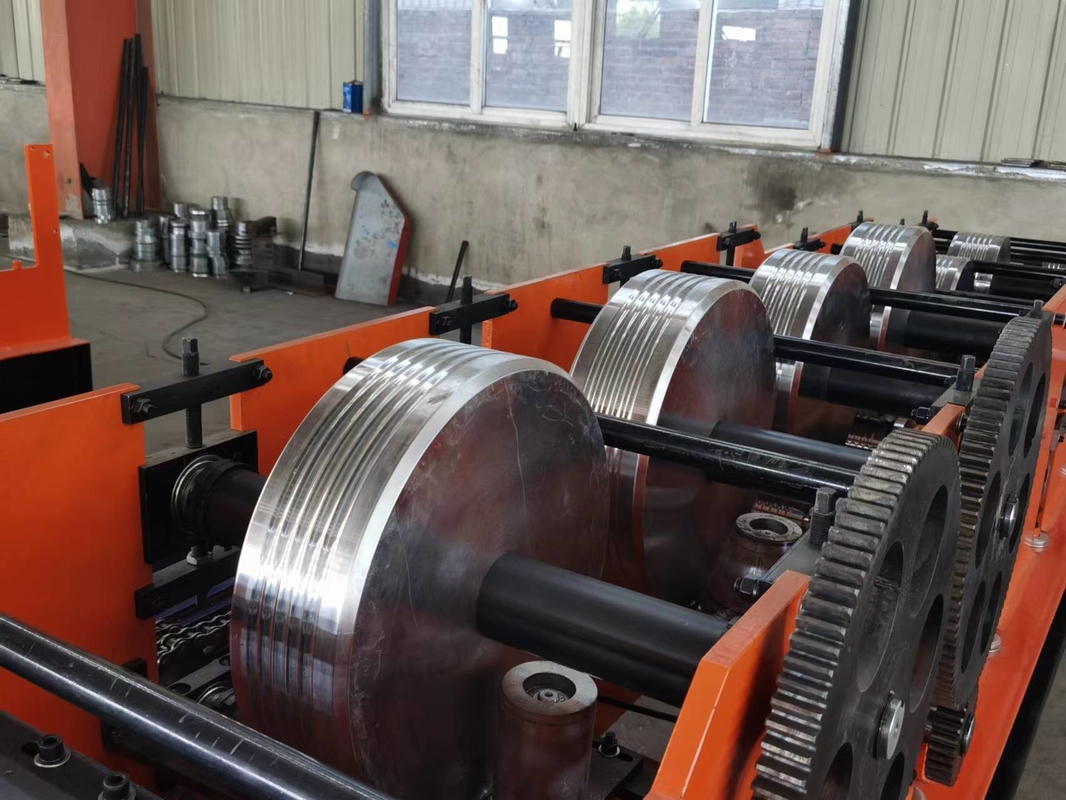

Rain Pipe Down Spout Roll Forming Machine Hydraulic Cutting System

Metal downspout is made by using the color steel or GGPI coils roll-pressing and end-closing, then use the special equipment hit-to-bend and necking. Metal drainage system has the excellent weather fastness. It has the advantages such as simple design, easy installation, safe and durable, elegant. It is widely used in the modern villas and multiple raises buildings. LBM is producing the high quality downspout roll forming machines and export to US India, Bangladesh, Vietnam, Turkey, etc.

Specification

No.	Item	Description
1	Coil	PPGI
2	Raw Material Thickness	0.3 mm - 0.8 mm
3	Working Speed	8-15 m/min
4	Roller Station	24 Stations
5	Dimension (LWH)	7500 mm800 mm1200 mm
6	Machine Weight	6000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining

Advantage

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

Guarantee

Maintenance and replacement of spare parts are free for customers during the warranty period (except for damage caused by human factors or natural disasters.) And technical support is provided for life.
We can design and manufacture the machine according to the client's specifications! CE-certified machines, guaranteed quality. Send us the profile drawing with your inquiry.

Payment terms

40% in advance

60% is paid before shipping
