Name: Ibr And Corrugated Profile Roll Forming Machine Double Layer Type
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Ibr And Corrugated Profile Roll Forming Machine Double Layer Type

0.7 mm profile roll forming machine

ppgi profile roll forming machine

ibr double layer roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

IBR dan Profil Bergelombang Mesin Roll Forming tipe Double Layer

Layanan purna jual disediakan:

Insinyur tersedia untuk mesin layanan di luar negeri, dukungan teknis video, dukungan online, layana

Bahan mentah:

PPGI

Voltase:

380/50Hz/3PH atau disesuaikan

Sistem Pengendalian:

PLC dari luar negeri

Kecepatan:

18-20m/menit

Ketebalan:

0,3mm-0,7mm

Kekuatan total:

7kw

LEBAR BAHAN BAKU:

Sesuai gambar

Daya Stasiun Hidrolik:

3kw

Menyoroti:

0.7 mm profile roll forming machine

ppgi profile roll forming machine

ibr double layer roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

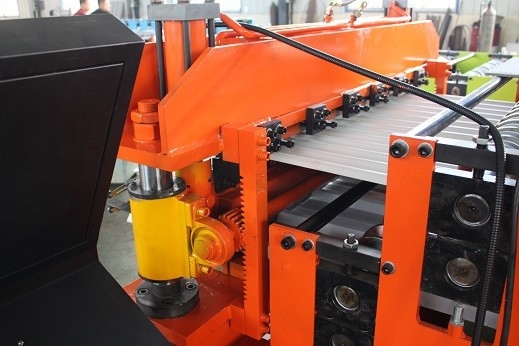

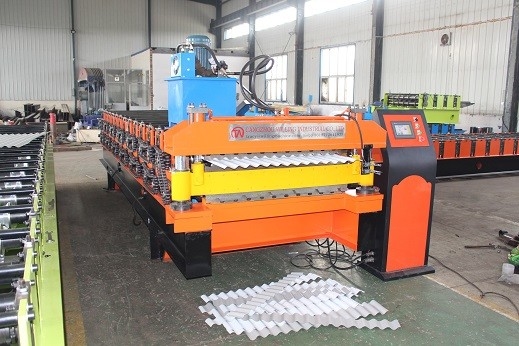

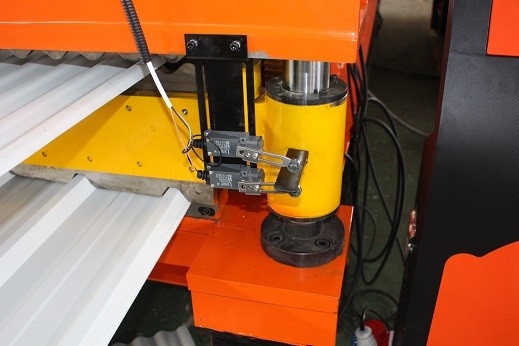

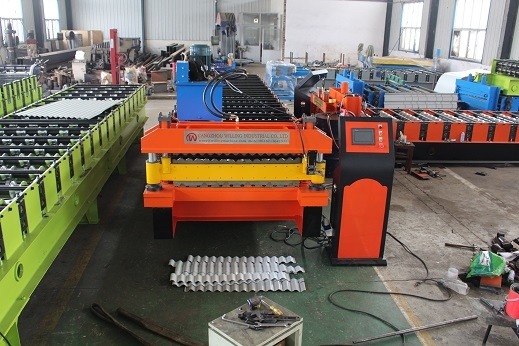

IBR and Corrugated profile Roll Forming Machine Double Layer type

The double-laminated tile machine can press two types of tiles . It has a small footprint, saves space, and is controlled automatically by a computer. In this operation, only one type of tiles can be produced at one time

Specification

No.	Item	Description
1	Coil	PPGI, Aluminum
2	Raw Material Thickness	0.3-0.7mm
3	Working Speed	18-20/min
4	Roller Station	16/16 Raws
5	Dimension (LWH)	7500 mm1200 mm1200 mm
6	Machine Weight	5000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	4 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH or as per requested
11	Cutting Accuracy	±2 mm
12	Driving Mode	1 inch Chain
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls, and large-span steel structure houses. It can be made of GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and it has a service life of 10-15 years.

Advantage

In general, this version is used for roofs, walls, and internal and external wall decoration of buildings, warehouses, special buildings, and long-span steel structure houses. The features of the product include a light weight, high strength, rich colors, convenient and fast construction, earthquake resistance, fireproof, rainproof, and long service life. Protection functions have been widely used.
