Name: Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Jahitan Berdiri Snap Lock
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic

iso roofing panel roll forming machine

fullautomatic roofing panel roll forming machine

portable standing seam roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Jahitan Berdiri Snap Lock

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Panel Atap Jahitan Berdiri Portabel Penuh Otomatis

Menggunakan:

Jahitan Berdiri Panel Kunci Snap Strip Kuku

Dimensi (P*L*T):

8.5m x 1.5m x 1.2m

Ketipisan bergulir:

0,5-0,8

Berat:

8310kg

Kondisi:

Baru

Voltase:

380V/415V/220V,50/60Hz,3Ph

Kapasitas Produksi:

18-20

Menyoroti:

iso roofing panel roll forming machine

fullautomatic roofing panel roll forming machine

portable standing seam roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

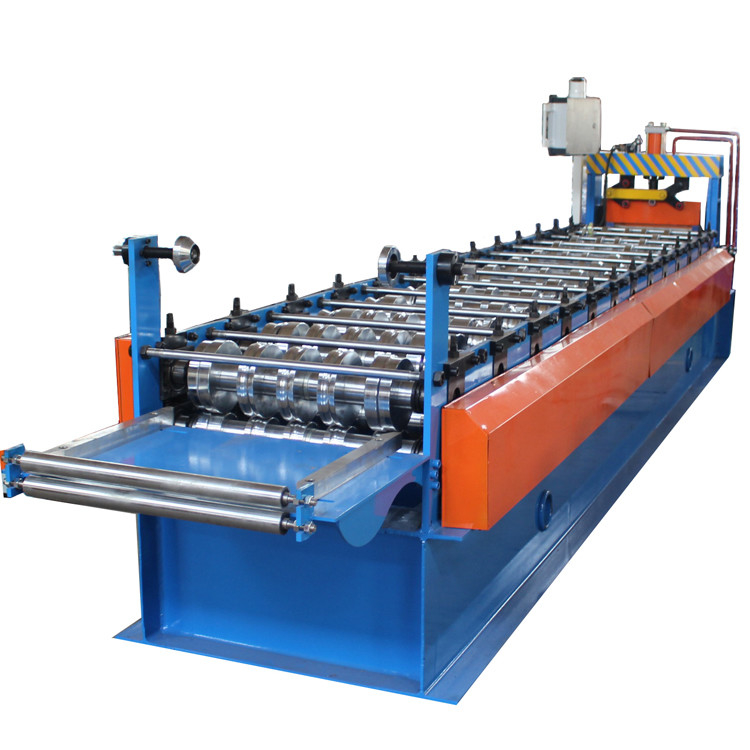

Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic

The advantages of Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic are as follows:

1.Low cost, light weight but high strength, short building period, and re-cycle use

2.can produce KALZIP,LYSAGHT,BEMO,KINGSPAN style Standing Seam Roof Panel

3.Easy operation, low maintenance cost

Standing seam roof panel machine rollers:

Rollers manufactured from high quality 40Cr steel, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options. Body frame made from 350# H type steel by welding.

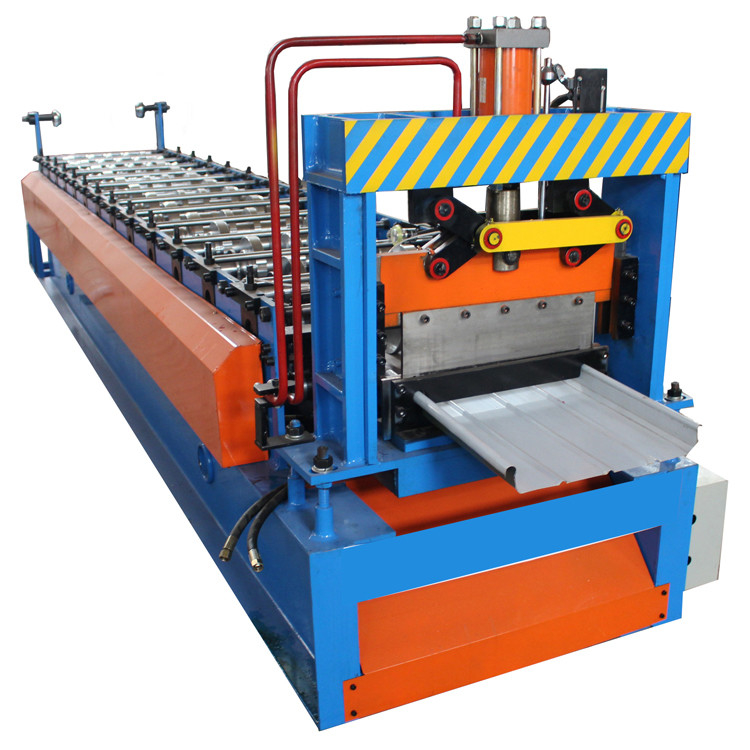

Standing seam roof panel machine post cutter:

Made by high quality mold steel Cr12 with heat treatment.Cutter frame made from high quality 20mm steel plate by welding.hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Main motor	5.5KW*2
3	Forming speed	15-18m/min
4	Cut-to-length tolerance	≤±2 mm
5	Dimension (LWH)	8.5M x 1.5M x 1.2M
6	Machine Weight	8310 kg
7	Electrical Control System	Panasonic PLC (can be customized)
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	4 KW
10	Cutting Accuracy	±2 mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
