Ppgi Glazed Tile Step Tile Roll Forming Machine Color Steel Roof Making Machine

glazed step tile roll forming machine

ppgi step tile roll forming machine

ppgi glazed tile roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Ubin Langkah Ubin Mengkilap Mesin Pembuat Atap Baja Berwarna

Lebar:

1-3 M/menit

Berat:

4000 kg

Bahan roller:

380V 50Hz 3Phase

Bahan roller:

45# baja

Membentuk Tenaga Motor:

7,5 kW

Spesifikasi:

8500*1300*1200mm

Kekuatan:

7,5 kW

Menyoroti:

glazed step tile roll forming machine

ppgi step tile roll forming machine

ppgi glazed tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

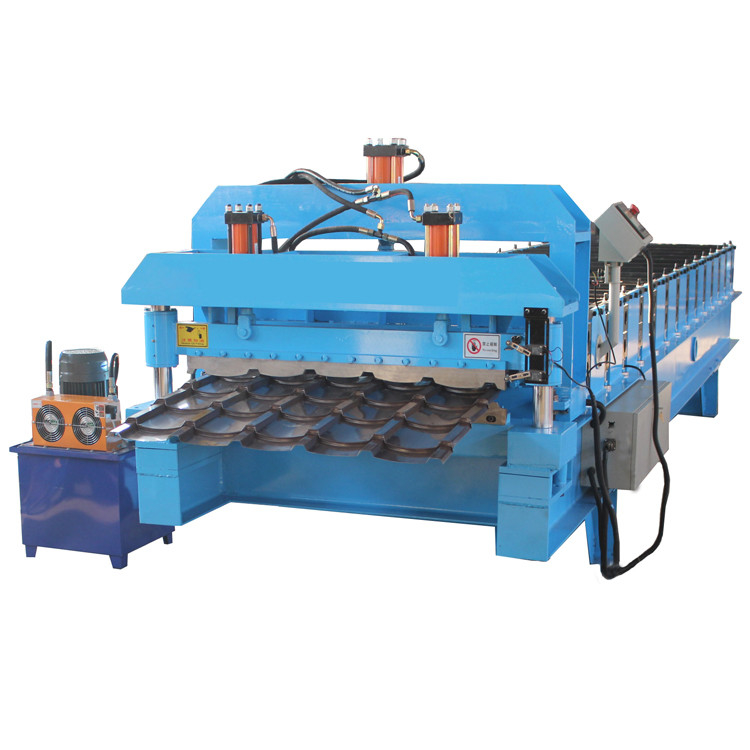

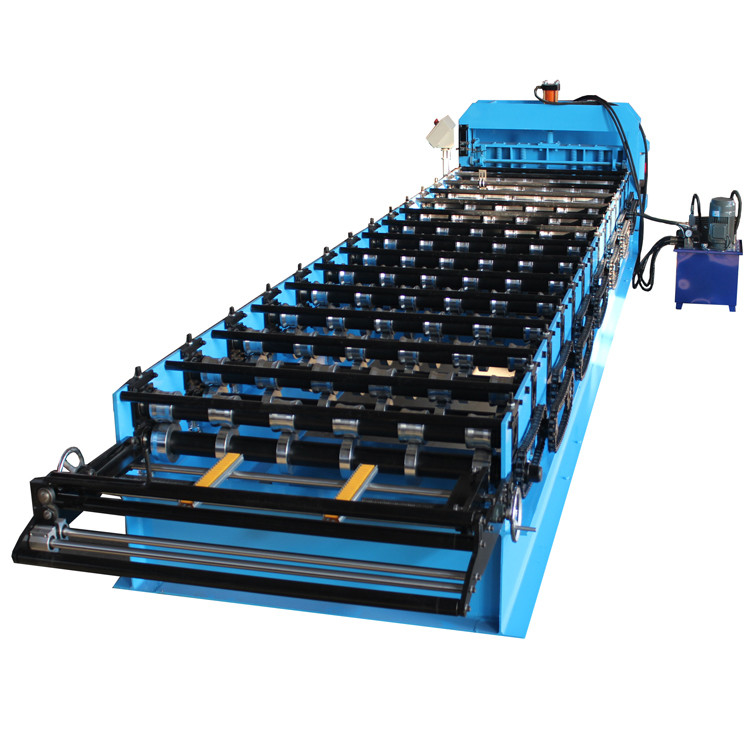

Glazed Tile Step Tile Roll Forming Machine Color Steel Roof Making Machine

Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine.Roofing Tile Making Machine Glazed Tile step roll forming machine , suitable for PPGI material and other harder coils , the finished sheet usually worked for roof and wall panel . It has beautiful water wave design , now is widely used in all over the world.Glazed tile roll forming machine is our advantage equipment. We have high standard for glazed tile roll forming machine. No painting break is our first step. The second is accurate length of every pitch. The third is installation with acceptable gaps.

Specification

Suitable material	Strip steel
Working speed	1- 3 m/min
Main motor power	7.5 kw
Hydraulic station power	4 kw
Thickness of material	0.3-0.8 mm
Roller station	16 stations
Driving mode	Chain
Electric tension	380 V /3 phase/ 50 HZ
Material of roller	45# forged steel
Material of cutting	Cr12

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
