Steel Zinc GI Corrugated Sheet Roll Forming Machine For Pakistan

gi corrugated sheet roll forming machine

zinc corrugated sheet roll forming machine

gi steel sheet roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lembaran Bergelombang Seng Baja Untuk Pakistan

Metode:

Tekanan hidrolik

Daya Stasiun Hidrolik:

7.5kw

Berat:

2.5t

Bahan roller:

380V 3 Fase 50HZ

Lebar makan:

0.3-0.8mm

Ketebalan material:

8-12 m/mnt

Ukuran penampilan:

6500mm*1500mm*1300mm

Menyoroti:

gi corrugated sheet roll forming machine

zinc corrugated sheet roll forming machine

gi steel sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

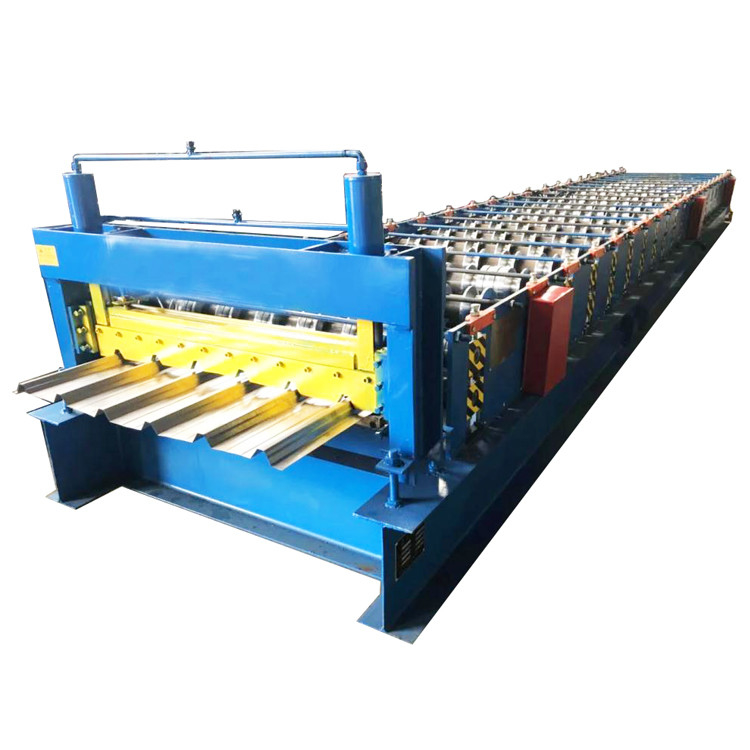

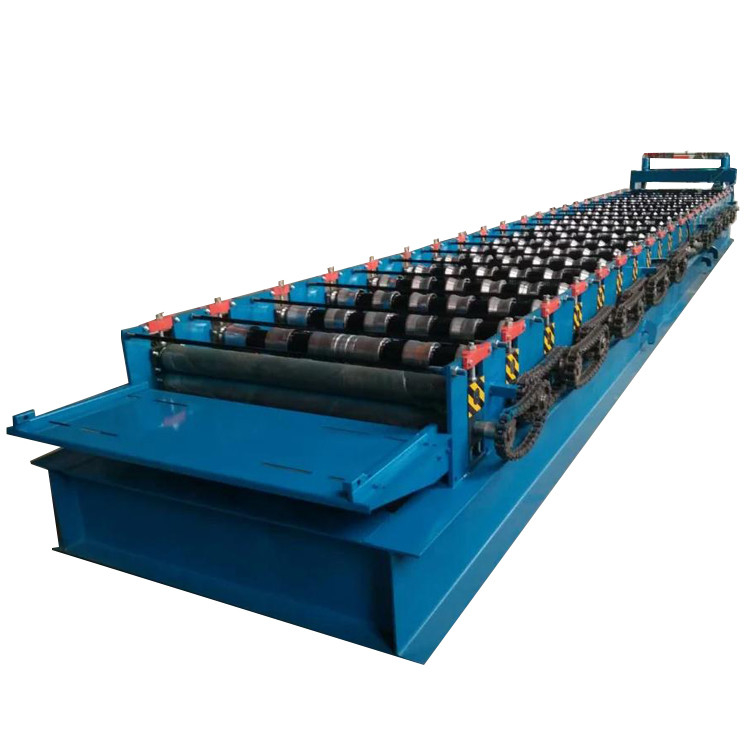

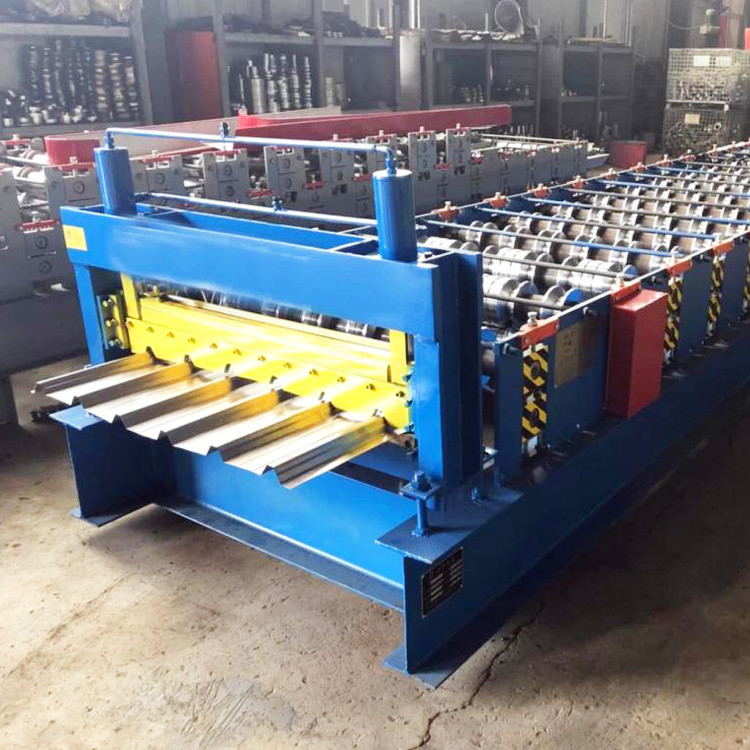

Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan

Steel Zinc Corrugated Sheet Roll Forming Machine For Pakistan. This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

Specification

ding host	Model	roof tile making machine
	Forming size	6500mm1500mm1300mm
	weight	2.5T
	Host big frame structure	Frame welded
	Roll station	13row
	Axial material	45# steel
	Out diameter of shaft	Φ75mm
	Roller materials	45# steel hard chromium plating
	Drive	By chain
	Sprocket chain	1 inch
	Main power	5.5 + 4 kw
	Working speed	8-12 m/min
	Material thickness	0.3-0.8mm
	Made board	18mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
