Hydraulic Pressure Glazed Tile Roll Forming Machine For Yx35-925 Profile

3phase glazed tile roll forming machine

925mm glazed tile roll forming machine

hydraulic pressure glazed tile forming machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Ubin Mengkilap Untuk Profil Yx35-925

Metode:

Tekanan hidrolik

Bahan Baku Bata:

Baja warna

Kapasitas Produksi:

11m/mnt, 8m/mnt, Lainnya

Berat mesin:

8800kg

Bahan roller:

380V 3 Fase 50HZ

Lebar makan:

1250mm,1219mm,1000mm,940mm, 914mm

Bahan roller:

Baja Cr12

Dimensi (P*L*T):

7800mm*2000mm*1250mm

Ketipisan bergulir:

0.3-0.8mm

Menyoroti:

3phase glazed tile roll forming machine

925mm glazed tile roll forming machine

hydraulic pressure glazed tile forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

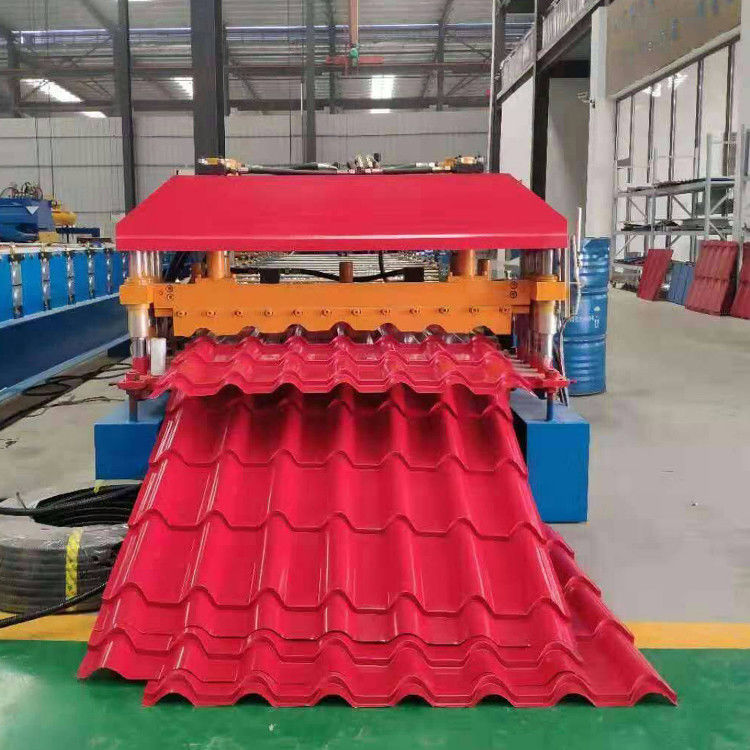

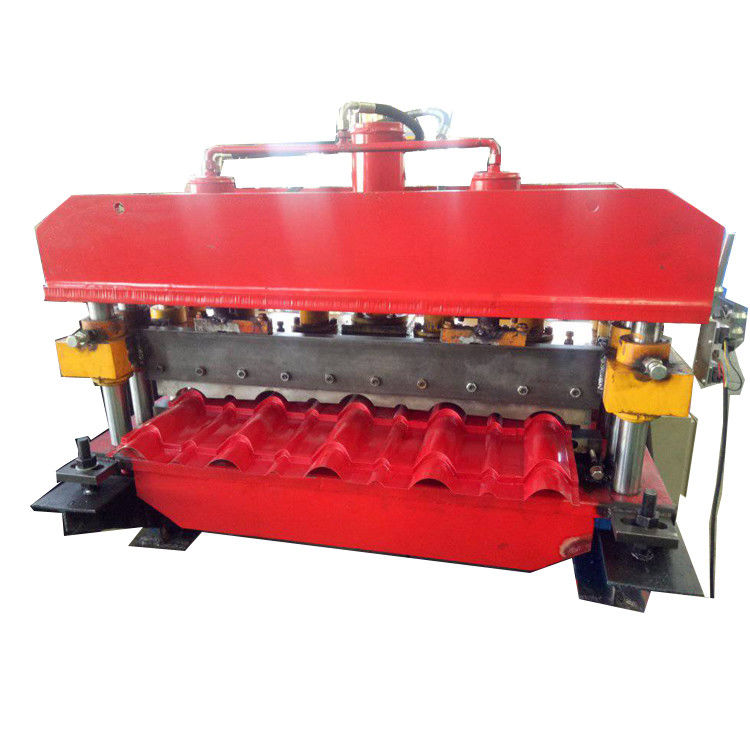

Glazed Tile Roll Forming Machine For Yx35-925 Profile

Customized sheet glazed tile roll forming machine steel coil mould equipment is customized . The speed of roll forming machine is 8m/min. It is double speed than normal 3-4m/min. This roll forming machine can meet standard of CE. Our metal roof machine is very popular in Euro and America. Our glazed tile can build beautiful roof, Every pitch is same with 350mm. 350mm is standard of Euro market. No cut surface painting. There is no gaps when installation

Specification

Product Name	Glazed Tile Roll Forming Machine For Yx35-925 Profile
Applicable Industries	Hotels,Garment Shops, Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works,Energy & Mining,Food & Beverage Shops,Advertising Company
Tile Type	Steel,Colored,Glazed,Colored Steel,Colored Glaze,Colored Glaze Steel, Glazed Steel
Use	Roof,Others
Production Capacity	8m/min,11m/min,Others
Voltage	220 V,380 V,415 V,440 V
Dimension(LWH)	2021.5 Meter
Weight	8800 KGS
Features	Fastest speed,Remote Production Control,Easy installation,Easy operation,Mini space,Full lifetime service
Rolling Thinckness	0.3-0.6 mm
Feeding Width	914 mm,940 mm,1000 mm,1219 mm,1250 mm
Power	13 KW

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
