Fully Automatic Cz Purlin Roll Forming Machine For Size Adjustment 80-300mm

80mm cz purlin roll forming machine

fullyautomatic cz purlin roll forming machine

size adjustment cz purlin machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming CZ Purlin Sepenuhnya Otomatis Untuk Penyesuaian Ukuran 80-300mm

Komponen inti:

PLC (merek impor)

Tekanan kerja:

16 MPa

Voltase:

380V atau 415V

Dimensi (P*L*T):

10,5m*1,35m*1,75m

Otomatisasi:

Otomatis

Cutting Blade Material:

Kr 12 Bergerak

Menyoroti:

80mm cz purlin roll forming machine

fullyautomatic cz purlin roll forming machine

size adjustment cz purlin machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

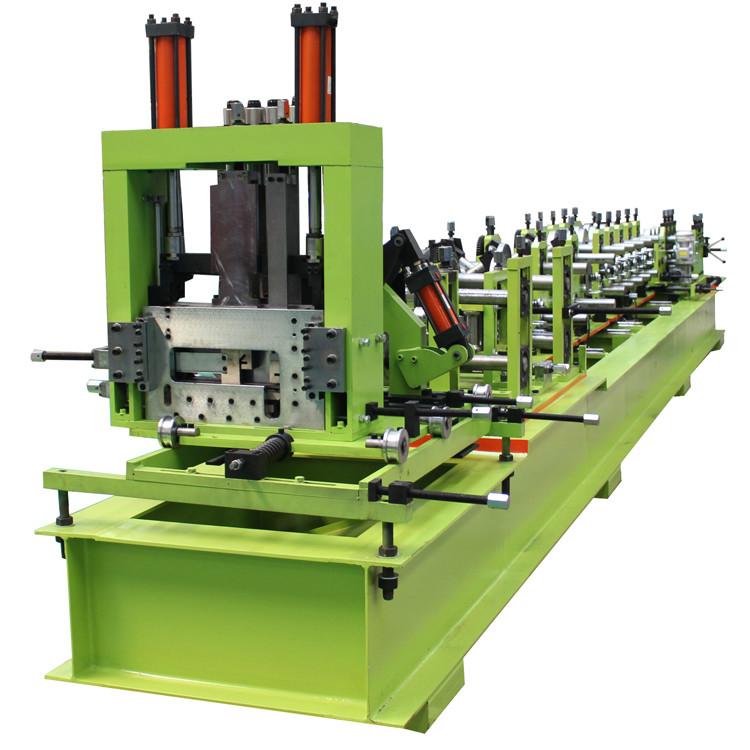

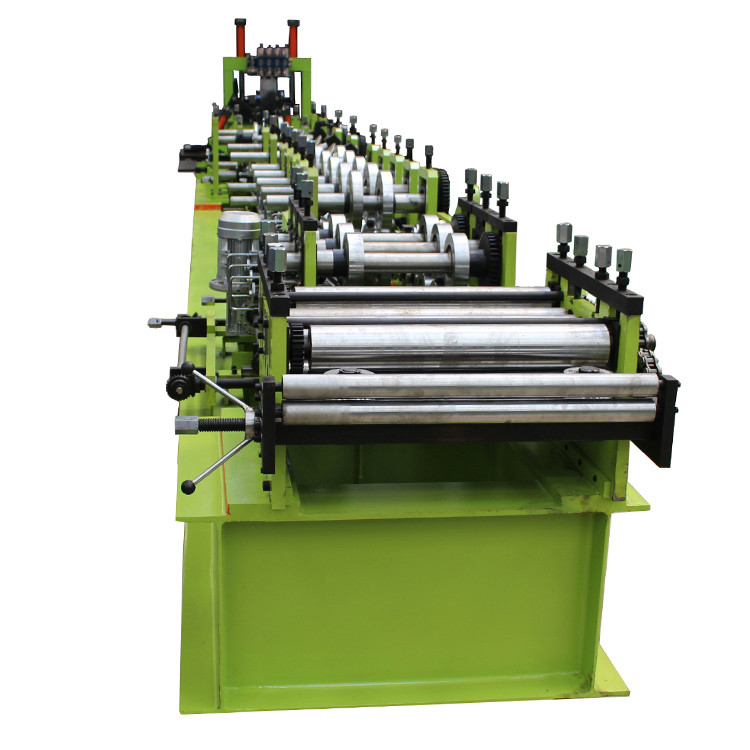

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm.Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm,Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined,
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling,Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie),Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON),It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters,Combined with: PLC, Inverter, TouchScreen, Encoder, etc.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Punching	Roller Station
Roller Station	18 Stations Roll Forming Machine
Weight	11000 kg
Power	22KW
Production Capacity	20m/min
Warranty of core components	1.5 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
