Automatic Cz Purlin Cold Roll Forming Machine Plc Control System

automatic cz purlin roll forming machine

cold cz purlin roll forming machine

plc control system cz purlin machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Sistem Kontrol PLC Mesin Cold Roll Forming CZ Purlin Otomatis

Kapasitas Produksi:

10-20m/mnt

Dimensi (P*L*T):

7000*800*1400mm

Voltase:

380V 50Hz 3Phase

Daya pompa:

5.5kw

Berat:

7500kg

Otomatisasi:

Otomatis

Daya Motor Utama:

15kw

Menyoroti:

automatic cz purlin roll forming machine

cold cz purlin roll forming machine

plc control system cz purlin machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

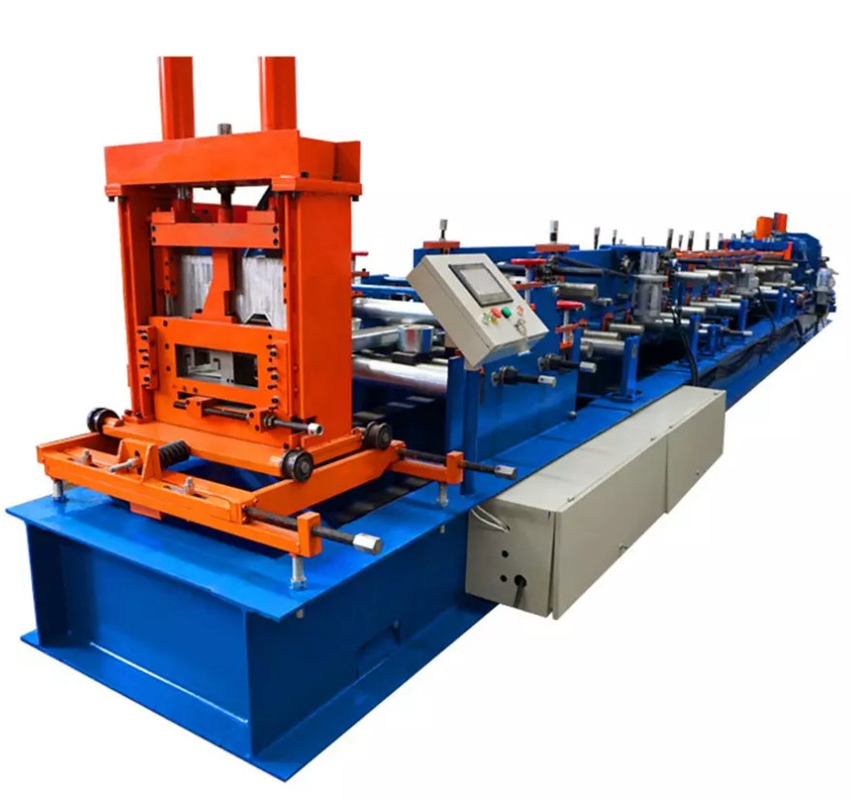

Automatic CZ Purlin Cold Roll Forming Machine PLC Control System

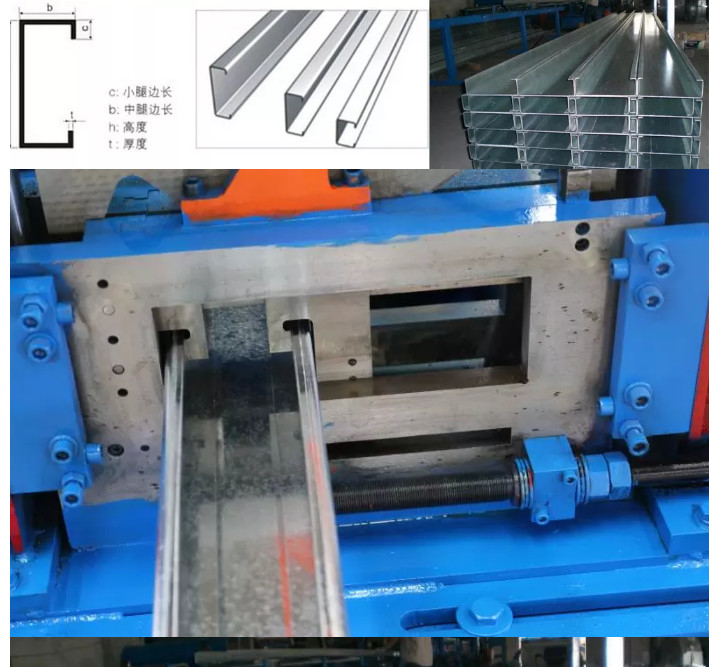

C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. .It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel. It is made by cold bending of hot rolled plate.

The C-shaped steel wall is thin and light, with excellent cross-sectional performance and high strength. Compared with traditional channel steel, the same strength can save 30% of the material.

automatic steel c z frame purlin second hand metal sheet rolling machine

specifications

1	Processing material:	Aluminum plating zinc/galvanized steel/colored steel coil
2	Material thickness:	1.5-3.5mm
3	Capacity:	10-20m/min
4	The weight:	2-8 ton
5	Main motor power:	15kw
6	Pump power:	5.5kw
7	Shaft diameter:	80mm
8	Forming steps:	9+13+2 steps
9	Roller material:	bearing steel
11	Main frame:	400H steel
12	Control system:	PLC computer control with inverter
13	Power supply:	380V, 3 Phase, 60Hz(as requirement)
14	size(LengthWidthHeight):	1.50.50.7m-125.32.5m

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
