Rumah > Produk > Mesin Roll Forming Genteng >

Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine

ppgi roofing tile making machine

1250mm roofing tile making machine

ppgi roof tile roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembuat Genteng Atap Mesin Roll Forming Langkah Genteng Mengkilap

Penggunaan:

Atap, Dinding

Bahan yang cocok:

PPGI GI

Lebar:

1250mm sebagai Profil Kustom

Kecepatan:

30m/mnt

Bahan roller:

380V 50Hz 3Phase

Motor:

5.5kw

Ketebalan:

0.3-0.8mm

Spesifikasi:

7.8X1.5X1.7M

Rol:

45# Baja sesuai Kebutuhan Pelanggan

Menyoroti:

ppgi roofing tile making machine

1250mm roofing tile making machine

ppgi roof tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

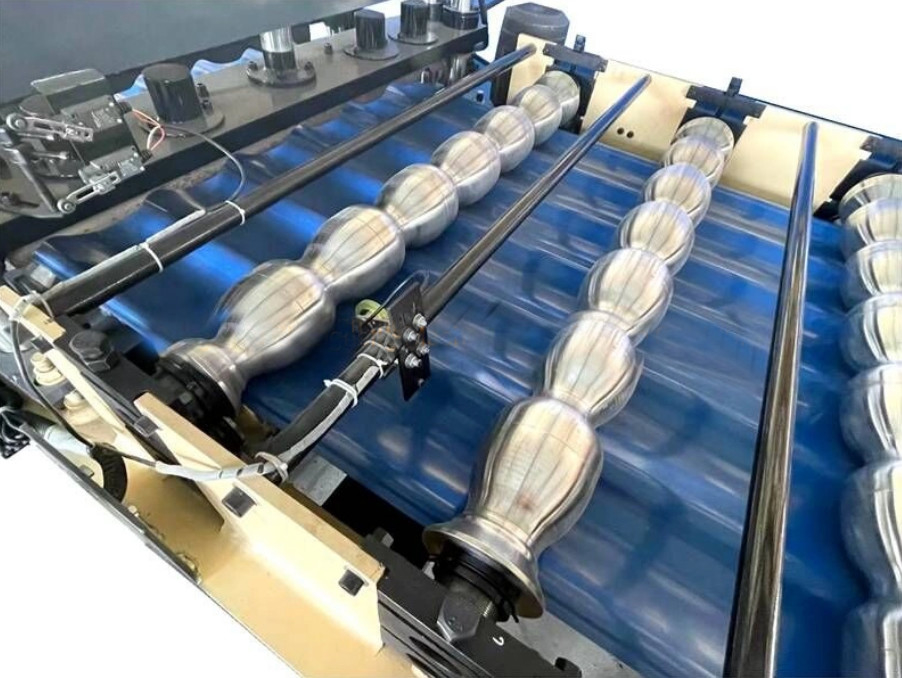

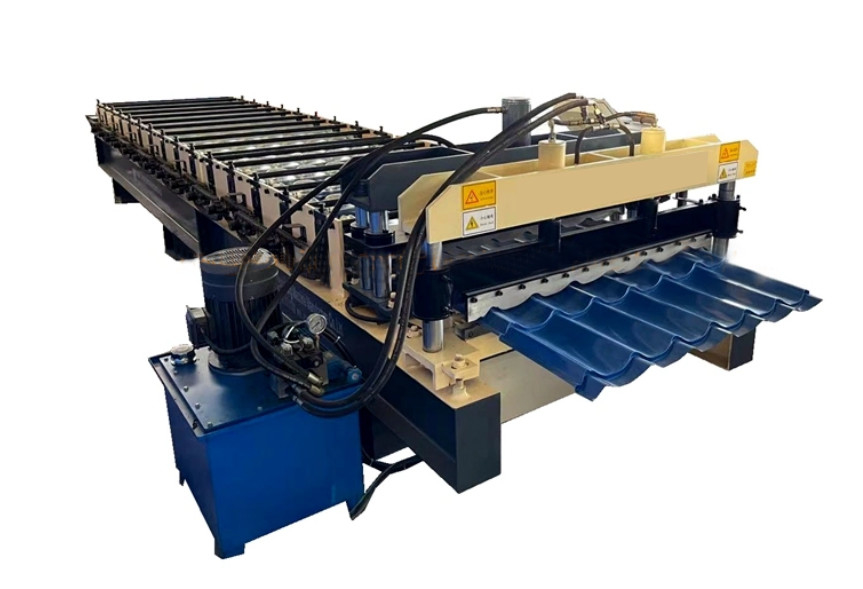

Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine

Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine.Roofing Tile Making Machine Glazed Tile step roll forming machine , suitable for PPGI material and other harder coils , the finished sheet usually worked for roof and wall panel . It has beautiful water wave design , now is widely used in all over the world

Specification

Coil required	Material	PPGI GI AL
	Width	914/925/1000/1200/1220/1250mm
	Thickness	0.3-0.7mm , as custom order
Power required	Power	380V 50Hz 3 Phase , as custom order
	Main Motor	5.5KW Siemens Brand
	Cutting Motor	4KW Siemens
Machine	Support Frame	400 H Steel 10mm
	Forming Station	14 rows as profile
	Structure	18-20mm
	Shaft	75mm
	Roller	45# Steel with heat treatment
	Chains	1.2 inch
	Bearings	Standard as custom order
	Speed	15-30m/min
	Electric Components	Delta and Siemens
	Size	7.51.31.6M
	Weight	4T

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine 0
