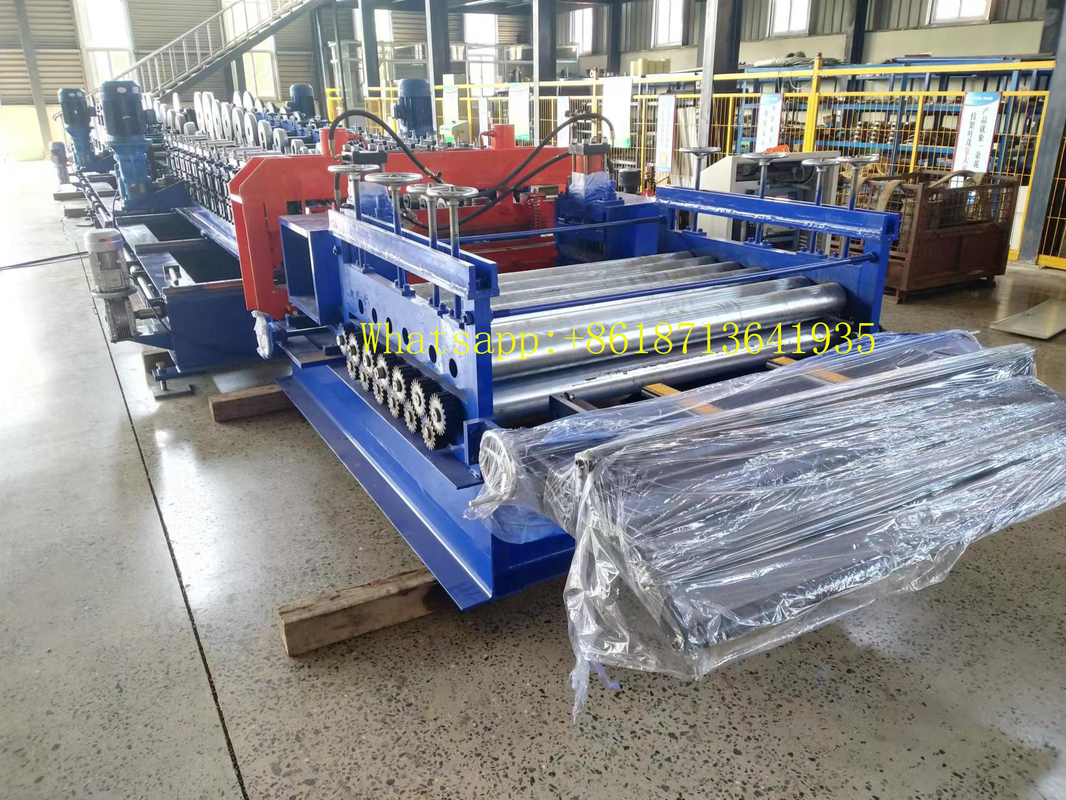

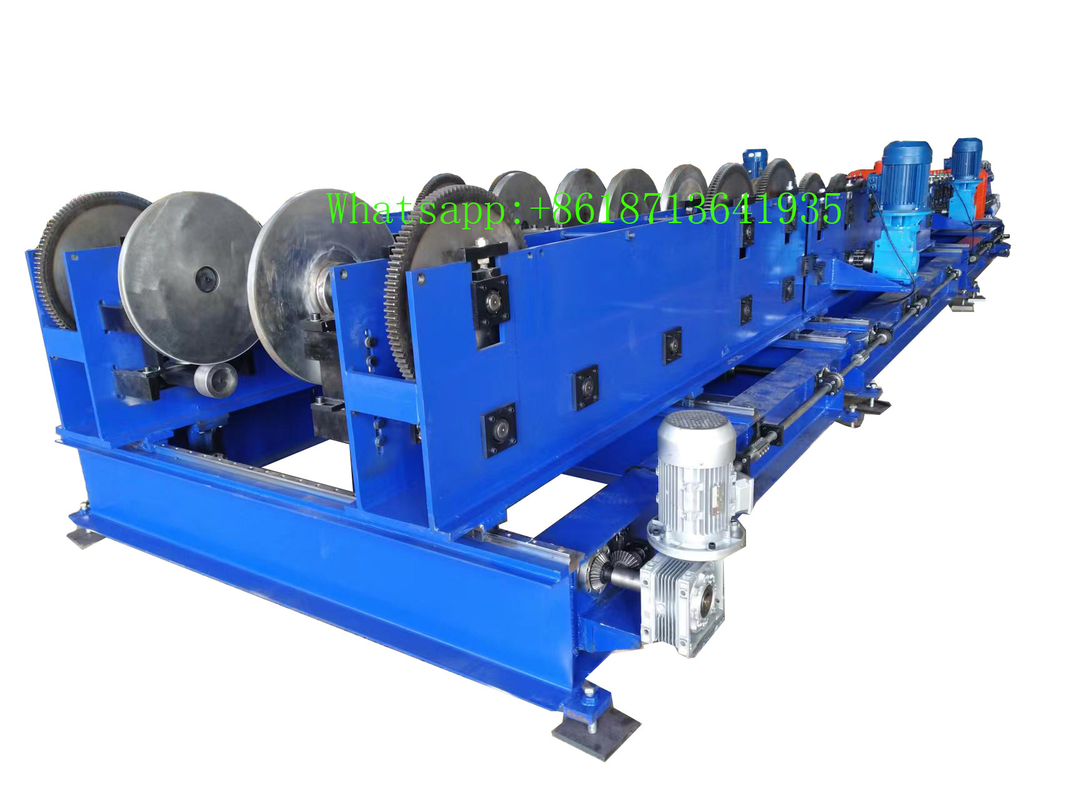

Name: 1.0mm - 3.0mm Thick Cable Tray Plank Roll Forming Machine / Cable Tray Making
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

1.0mm - 3.0mm Thick Cable Tray Plank Roll Forming Machine / Cable Tray Making

plank cable tray roll forming machine

1.0mm cable tray roll forming machine

3.0mm thick cable tray making machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Papan Baki Kabel Tebal 1.0mm - 3.0mm / Pembuatan Baki Kabel

Ketebalan material:

Kumparan baja galvanis 1.0mm-3.0mm

kecepatan bergulir:

4-6m/mnt

Voltase:

380V 50Hz 3Phase

Daya Motor Utama:

22kw

Lebar profil:

200-500mm

Otomatisasi:

Otomatis

Bahan roller:

Gcr 15dengan pendinginan

Menyoroti:

plank cable tray roll forming machine

1.0mm cable tray roll forming machine

3.0mm thick cable tray making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

1.0mm - 3.0mm Thick Cable Tray Plank Roll Forming Machine / Cable Tray Making

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.
Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, Tray Plank Roll Forming Machine etc.

specifications

Description
Material	Material of width	200-500mm
	Material thickness	1.0-3.0mm
	Uncoiler	3 tons hydraulic
Forming system	Rolling speed	4-6m/min
	Roller stations	20 stations
	Roller material	GCr15 quench treatment
	Shaft Dia	90mm
	Main Motor Power	22kw
Cutting system	Material of cutting	Cr12
Cutting system	Hydraulic cutting Power	7.5kw
Electrical control system	Electric Source	380V, 50HZ,3 phase
Electrical control system	Control System	PLC (Panasonic)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
