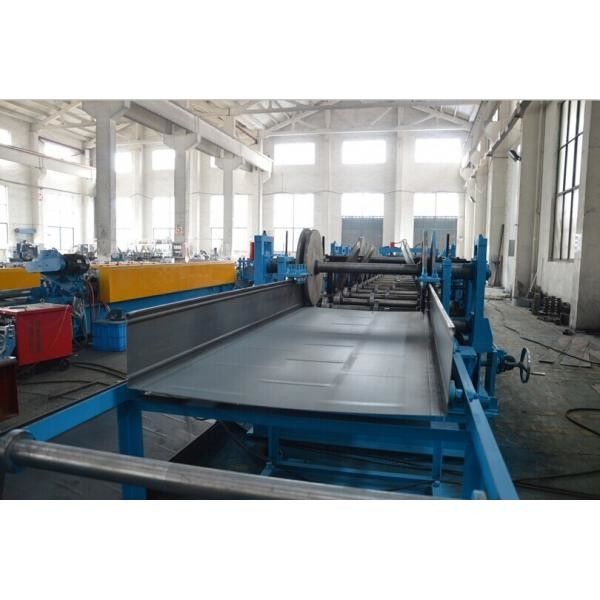

Name: 90 - 600mm Profile Width Cable Tray Roll Forming Machine 7.5kw Motor High Speed
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

90 - 600mm Profile Width Cable Tray Roll Forming Machine 7.5kw Motor High Speed

600mm width cable tray roll former

7.5kw motor cable tray roll former

high speed cable tray forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Baki Kabel Lebar Profil 90 - 600mm Motor 7.5KW Kecepatan Tinggi

Lebar profil:

9-60cm

Tinggi profil:

5cm-10cm

Voltase:

380V 50Hz 3Phase

Motor utama:

7,5 kW

Ketebalan material:

Kumparan Galvanis 1,0-2,0mm

Otomatisasi:

Otomatis

Bahan roller:

45 # baja tempa

Ukuran Panjang mesin:

11000mm* Lebar 800mm* Tinggi 1000m

Menyoroti:

600mm width cable tray roll former

7.5kw motor cable tray roll former

high speed cable tray forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

90 - 600mm Profile Width Cable Tray Roll Forming Machine 7.5KW Motor High Speed

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.
Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.

specifications

Material Spec	colored steel sheet, galvanized steel sheet
main motor power	4.0 kw
forming speed	10-15m/min
Diameter of roller	70 millimeter
Thickness of Coil Sheet	0.3-0.8 millimeter
the width of the colored sheet	1000 millimeter
the effective of steel sheet	820 millimeter
Hydraulic station pressure	3 kw
Hydraulic pressure	10 - 12Mpa
Total Weight	about 5.5ton
Voltage	380 volt/3phase
Roll stand	22 groups
PLC	Computer adopt PLC, Mitsubishi FX-IS series
Dimension	11.4m1.3m1.2m
Roller material	high grade No.45 forged steel, plated hard chrome onthe surface of roller with thickness 0.05 millimeter
Frequency converter	containing
Computer operating screen	MT6056 from Taiwan
Material of cutter	Cr12

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
