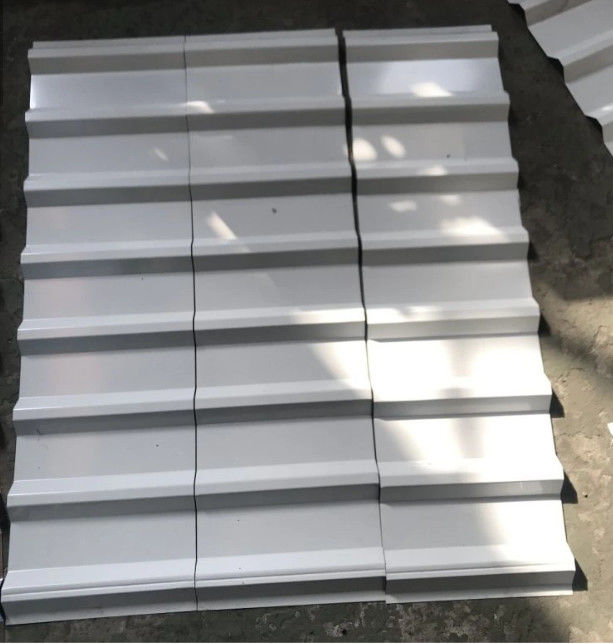

Name: 8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

8 Rib Type Roof Tiles Making Machine 18 Sections Simple Structure

8 rib roof tiles making machine

18 sections roof tiles making machine

simple roof tile roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembuat Genteng Atap 8 Ribtype Dengan 18 Stasiun Struktur Sederhana

Kapasitas Produksi:

10-15m/mnt

Nilai jual utama:

Umur layanan yang panjang

Kecepatan kerja:

10-15m/mnt

Berat mesin:

5000 kg

Bahan roller:

380V 50Hz 3Phase

Sistem Pengendalian:

PLC

Pembentukan kecepatan:

10-20m/mnt

Menyoroti:

8 rib roof tiles making machine

18 sections roof tiles making machine

simple roof tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

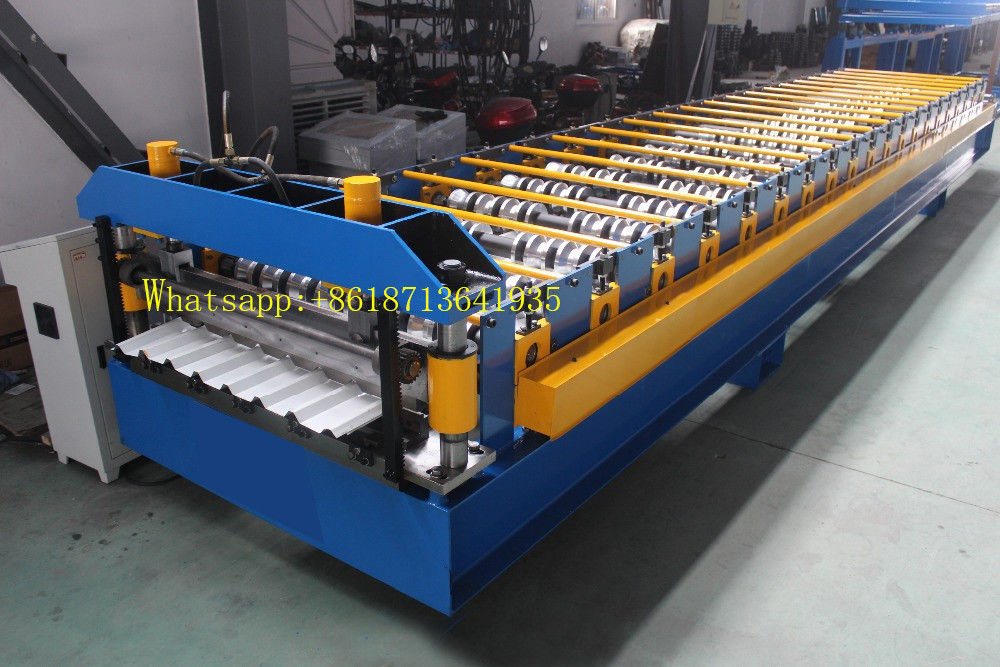

8 Ribtype Roof Tiles Making Machine With 18 Stations Simple Structure

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings.

Specification

Description	Explaination
Working speed	10-20 m/min(Shear time is not included)
Pressed plate thickness	0．3-0．8mm
Control mode	Siemens PLC
Discharging rack	5T electric discharging rack
Number of molding passes	22 lanes
Roll material	After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter 轴材质及轴径	45# Steel finishing,Shaft diameter is￠70mm
Main engine power	7.5kw
Power of hydraulic station	3kw
Hydraulic pressure	12Mpa
Scissors material	Cr12Mov, quench HRC 58-62℃
Length tolerance	3m±1.5mm
Voltage	380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode	1.0 inch single row chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
