Name: GI Roof Tile Roll Forming Machine 8 Ribs 5 Ribs 6 Ribs
Brand: Cangzhou Famous International Trading Co., Ltd
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

GI Roof Tile Roll Forming Machine 8 Ribs 5 Ribs 6 Ribs

gi roof tile roll forming machine

8ribs roof tile roll forming machine

5 ribs roof tiles making machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Atap Ribtype Filipina 8 Ribs 5 Ribs 6 Ribs

Kapasitas Produksi:

7-15M/menit

Kisaran Ketebalan:

0.3-0.8mm

Kecepatan kerja:

10-15m/mnt

Berat mesin:

5000 kg

Bahan roller:

380V 50Hz 3Phase

Spesifikasi:

6,0m*1,5m*1,9m

Lebar makan:

1220mm

Menyoroti:

gi roof tile roll forming machine

8ribs roof tile roll forming machine

5 ribs roof tiles making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

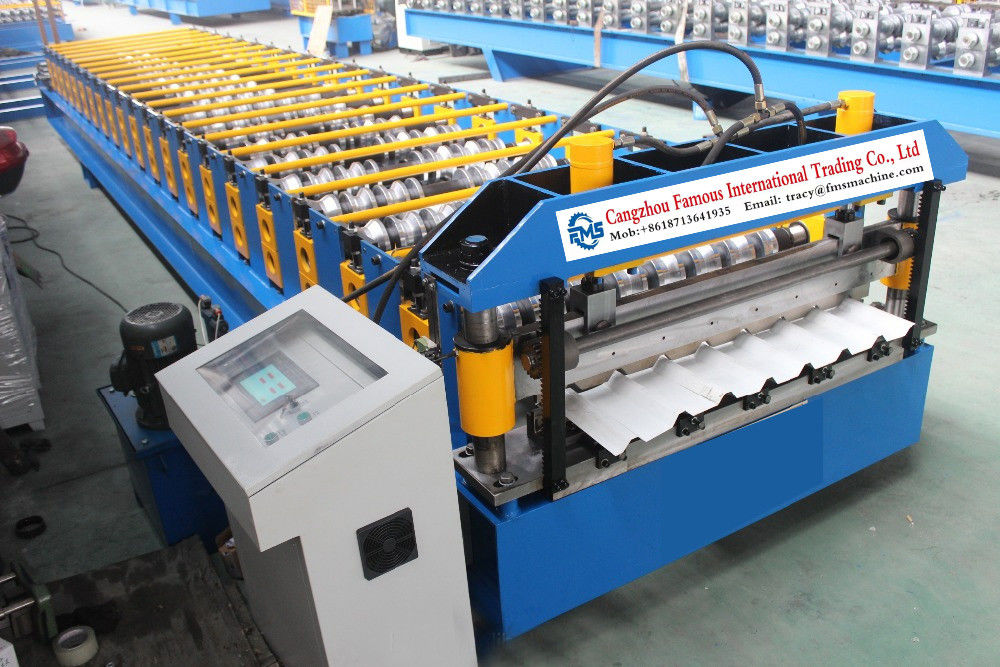

Philippines Ribtype Roofing Machine 8 Ribs 5 Ribs 6 Ribs

CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings.

Specification

GI or color steel
Thickness range	0.25-0.5mm
Main motor power	5.5kw, AC motor, motor inside of main machine (Brand: Guomao of China)
Machine Voltage, Frequency, Phase	380 V, 50 Hz, 3Phase
Roll station	about 18 stations (according the final design)
Roller material	SAE1045 chrome plated surface with chrome,CNC
Shaft diameter	￠70mm material: SAE1045 with quenching and tempering
Machine roll forming speed	0-15m/min (not include cutting time)
Transmission	by chain, one inch, single line

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
