Name: 0.8mm Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

0.8mm Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile

0.8mm three layer roll forming machine

corrugated three layer roll forming machine

3layer glazed tile roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Tiga Lapis Ibr Ubin Bergelombang Dan Mengkilap

Jenis ubin:

Baja Berwarna

Voltase:

380V 50HZ 3 Fase atau Lainnya

Komponen inti:

Motor, Pompa, PLC

Daya mesin:

5.5KW + 3kw

Kecepatan kerja:

10m--15m/Menit (Tidak Termasuk Waktu Pemotongan)

Sistem pemotongan:

Sistem pemotongan hidrolik setelah pembentukan

Nilai jual utama:

Umur layanan yang panjang

Ketipisan bergulir:

0.3-0.8mm

Menyoroti:

0.8mm three layer roll forming machine

corrugated three layer roll forming machine

3layer glazed tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

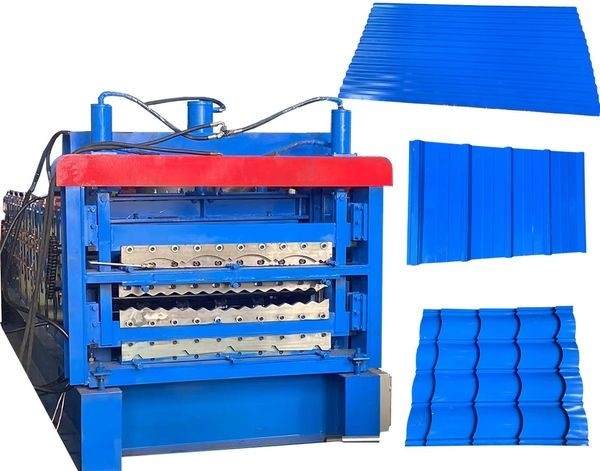

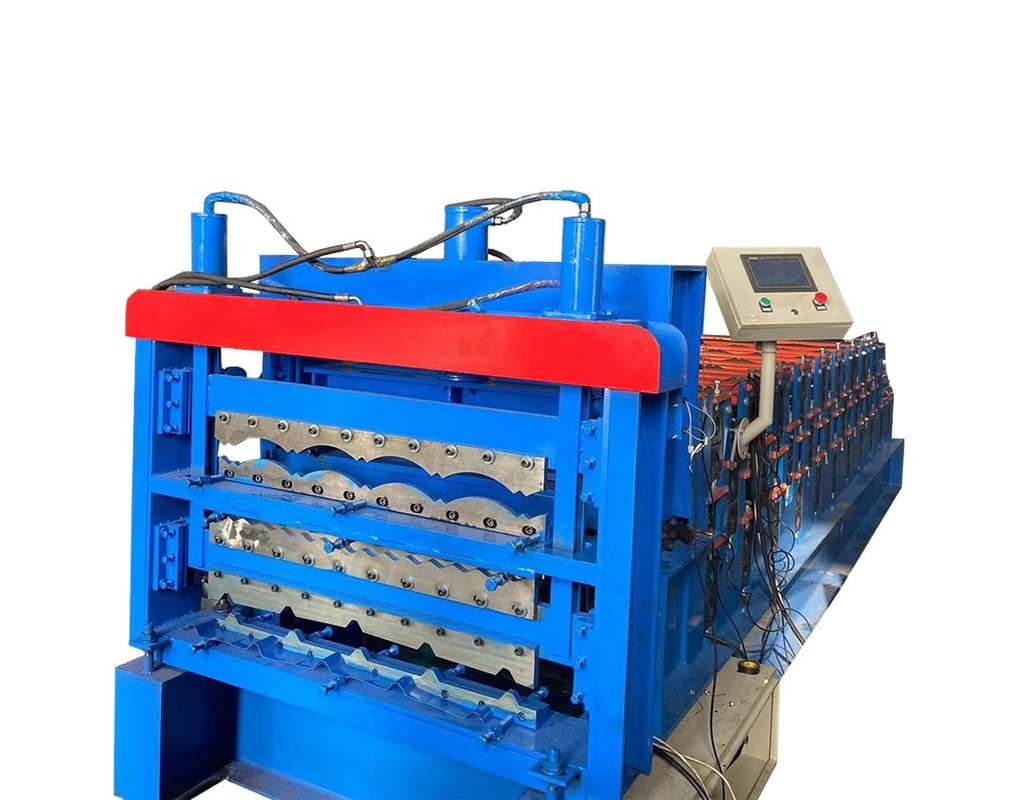

Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile

Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile is mainly producing steel roof/ wall sheet .The final products have three types, corrugated sheet and trapezoidal sheet and glazed tiles.IBR Roofing Sheet Iron Steel Corrugated Roof Sheeting Metal Double Layer Tile Roll Forming Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 0.8mm. We adopt 16mm side wall panel type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

Specification

Product Name	Three Layer Roll Forming Machine Ibr Corrugated And Glazed Tile
Main motor power	5.5 kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Raw material	0.3-0.8mm
Coil width	1000mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 6 ton
Size of machine	About 6500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
