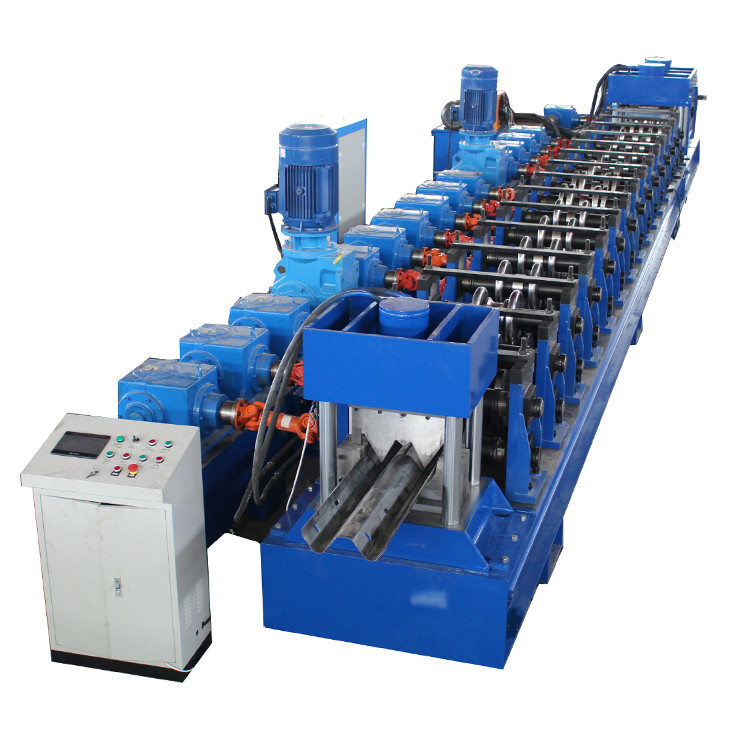

W Purlin 3.5mm Highway Guardrail Roll Forming Machine Saw Cutting

3.5mm highway guardrail roll forming machine

w highway guardrail roll forming machine

w purlin guardrail roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pagar Pembatas W Purlin Mesin Roll Forming Pagar Pembatas Jalan Raya

Ketebalan:

2,5-3,5mm

Kecepatan mesin:

10-15meter/menit

Stasiun putar:

20 Roll Station (dengan 6PCS Roller untuk Leveling D

Voltase:

380V.50HZ.3Phase

Diameter poros:

110mm

Jenis pemotongan:

Pemotongan hidrolik

Kekuatan pemotong:

15.5kw (Tekanan: 25MPa) 3 BUAH Pemotong

Ketebalan belat:

22mm

Bahan poros:

Baja 45# yang ditempa

Menyoroti:

3.5mm highway guardrail roll forming machine

w highway guardrail roll forming machine

w purlin guardrail roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

50 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

Dapatkan Harga Terbaik

Video

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

Dapatkan Harga Terbaik

Video

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

Dapatkan Harga Terbaik

Video

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

W Purlin Guardrail Roll Forming Machine Highway Guardrail Roll Forming Machine

W Purlin Guardrail Roll Forming Machine Highway Guardrail Roll Forming Machine.

Main Features 1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Specification

Item		Specification
1.Information of raw material	Suitable material:	Galvanized coil
	Width:	748mm
	Thickness:	2.5-3.5mm
	Yield strength:	Q235A HR
2.Production specification	Detailed as the file
3.Power requirement:	Main power:	22kw two sets
	Cutter power:	15.5kw(pressure:25mpa) 3 pcs cutter
	Speed of machine:	10-15meters/min
4.Hydraulic de-coiler:	Loading:	5tons
	Inner diameter	508mm
	Type:	Automatic type
5.Machine specification:	Structure:	400I beam
	Roll stations:	20 roll stations (with 6pcs rollers for leveling diameter:80mm)
	Splint thickness:	22mm
	Diameter of shaft:	110mm,
	Material of shaft:	Forged 45# steel
	Type of cutting:	Saw cutting
	Material of roller:	CR12 with heat treatment: HRC58-62
	Sizes of machine:	15.51.01.5meters
	Material of punching mold:	Cr12,hydraulic pre-punching
	Sizes of chain:	2.0inch

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.

W Purlin 3.5mm Highway Guardrail Roll Forming Machine Saw Cutting 0
