Highway Beam Roll Guardrail Forming Machine W Beam Crash Barrier Chain Drive

highway beam roll guardrail forming machine

chain drive guardrail forming machine

chain drive guardrail roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pagar Pembatas Balok Jalan Raya W Beam Crash Barrier

Spesifikasi:

13,0*1,6*1,2m

Pembentukan Stasiun:

Menurut Gambar Profil Anda

Bahan roller:

Perawatan pendinginan GCr15,Cr12,SKD11: HRC58-62（opsional）

Voltase:

380V.50HZ.3Phase

Kontrol:

PLC

Cara Berkendara:

Penggerak Rantai, Penggerak Gearbox (opsional)

Permintaan bahan baku:

baja canai dingin atau baja canai panas, baja galvanis, SS316L/Baja Ringan

Menyoroti:

highway beam roll guardrail forming machine

chain drive guardrail forming machine

chain drive guardrail roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

50 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

Dapatkan Harga Terbaik

Video

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

Dapatkan Harga Terbaik

Video

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

Dapatkan Harga Terbaik

Video

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

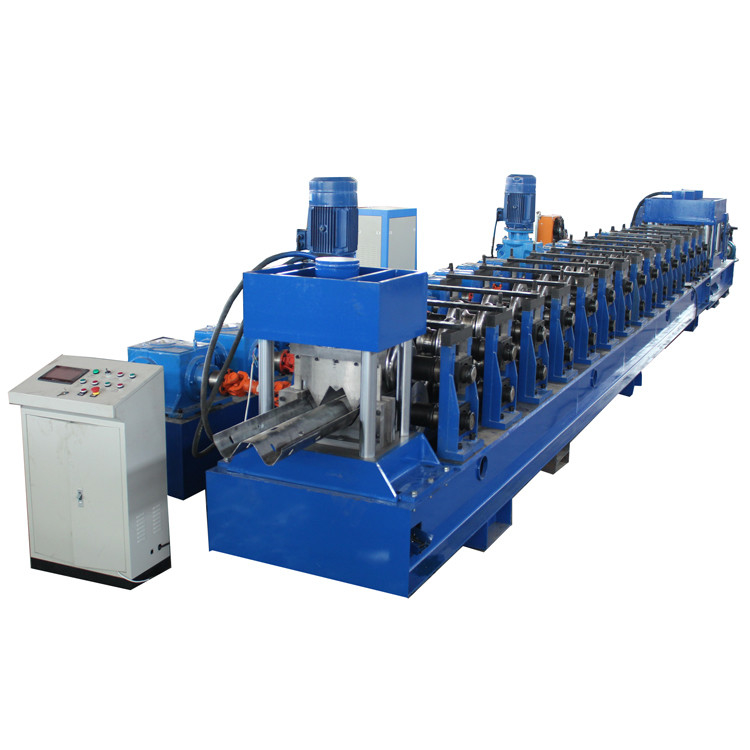

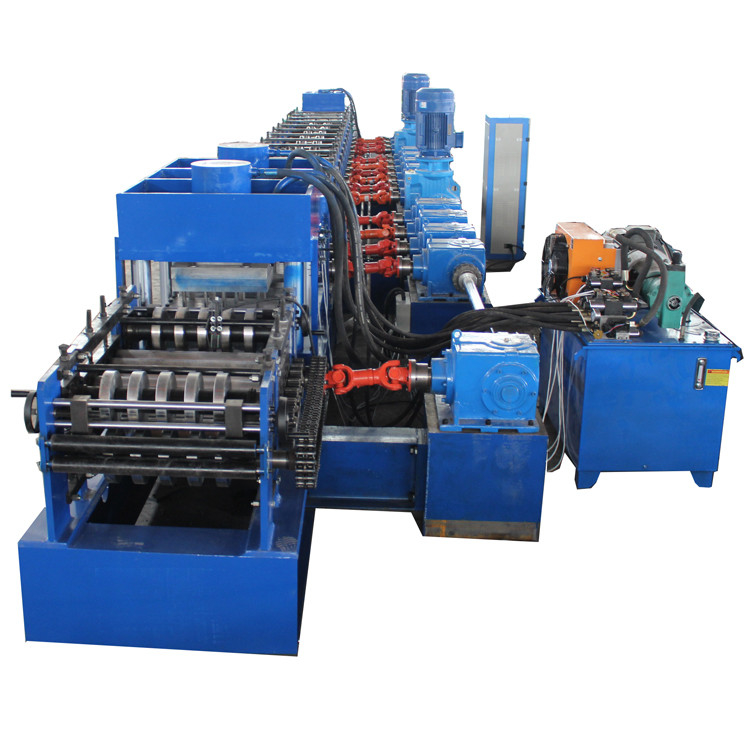

Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier

Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier

Processes: Hydraulic de-coiler-Leveling device--Punching station--Roll forming machine-PLC system-Hydraulic system-Cutter-Output table

highway road guardrail W shape bumpls road barrier making machine cold roll forming.Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.

Specification

Highway Beam Guardrail Roll Forming Machine W Beam Crash Barrier
1	Raw material request	cold rolled or hot rolled steel,galvanized steel,SS316L/Mild Steel
2	Effective width	310mm
3	Roller station	17 rows forming 7 roller leveling
4	Thickness of feeding material	2.0-2.5 mm
5	Productivity	8-12m/min
6	Rollers' material	45# forging steel
7	Diameter of shaft	100mm
8	Cutting tool material:	GCr12 with quenched treatment 60-62°C
9	Weight	About 6.9T
10	Size	13.51.851.6mm
11	Voltage	380V 50Hz 3phases
12	Wall thickness of main forming machine	14mm steel plate
13	Main forming machine body	300 mm H steel
14	Total power	22+11 kw
15	Leveling power	2.2 kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
