Name: 30m/Min 914mm Floor Deck Roll Forming Machine High Speed
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

30m/Min 914mm Floor Deck Roll Forming Machine High Speed

30m/min floor deck roll forming machine

914mm floor deck roll forming machine

high speed floor deck forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Dek Lantai Berkecepatan Tinggi 30m/Min 914mm

Dimensi (P*L*T):

16500*1500*1300

Ketipisan bergulir:

0,7-1,2mm

Ketebalan material:

Baja galvanis 0,7-1,2MM

Diameter poros:

95mm

Berat:

15.000 kg

Voltase:

380V 50Hz 3Phase

Kapasitas Produksi:

30 m/mnt

Menyoroti:

30m/min floor deck roll forming machine

914mm floor deck roll forming machine

high speed floor deck forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

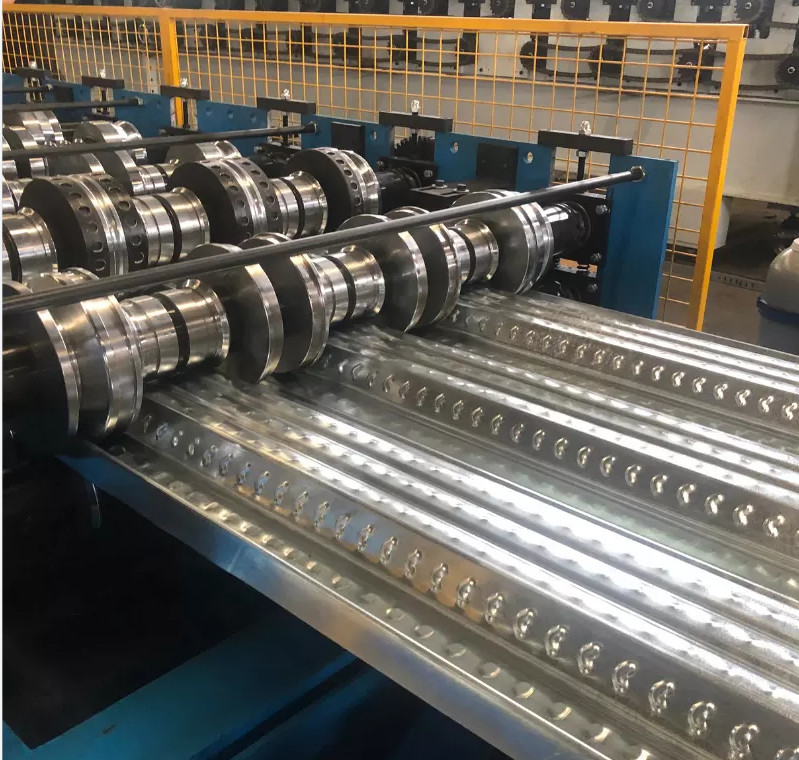

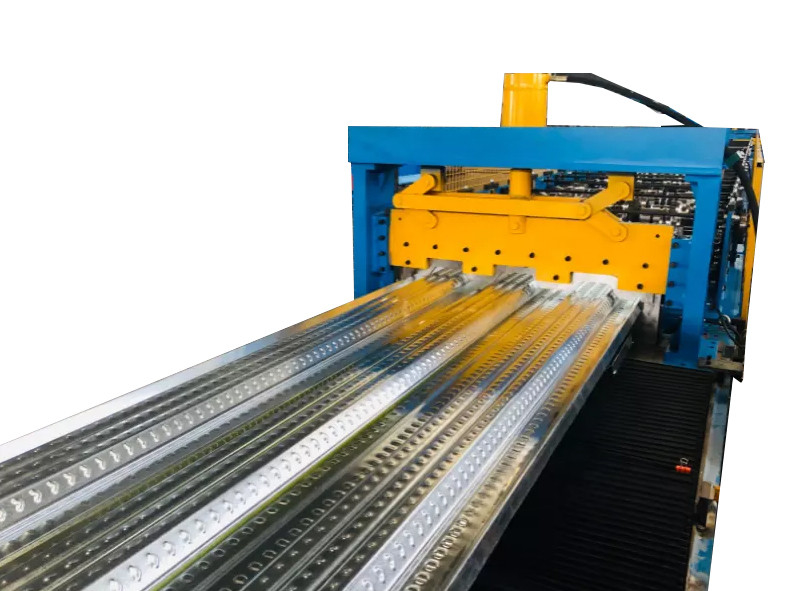

High Speed Floor Deck Roll Forming Machine 30m/Min 914mm

High Speed Floor Deck Roll Forming Machine 30m/Min 914mm

- Floor decking sheet roll forming machine is automatic hydraulic shearing machine.
- The production is used for floor panels.The production has high wave, high strength and other characteristics.
- Floor decking sheet roll forming machine has a high degree automatically producing, and low cost.
- This machine is a new type of energy-saving and high-effective producing equipment for steel structure.

The main benefit of a composite metal floor deck is strengthening your floor system without adding extra weight. Composite metal floor deck comes in different profile types, gauges and lengths. Each profile type and gauge is engineered for different concrete slabs and yields different values in strength. Not all projects are engineered the same. Some areas may require more strength and that requires a heavier gauge or different profile type.

Specification

Item NO	Description	UnitType	RF-DF
1	Steel Thickness	mm	0.7-1.2mm G550 galvanized steel
2	Forming Speed	m/min	About 0-30
3	Roller stands	stand	About 34
4	Roller Material		high-grade Gcr15 steel
5	Shaft diameter		Ф95mm
6	Main Motor Power	Kw	22*2kw
7	Hydraulic cutting Power	Kw	7.5
8	Hydraulic pressure	Mpa	12
9	Power Supply		220V, 60HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12mov
12	Control system		PLC with touch screen
13	Transmission		Chain driven
14	Machine size	mm	About 1650015001350mm
15	Machine weight	T	About 15

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
