Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine

Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine

415v steel roll former

roll up door steel roll former

roll up door metal roll former

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Bingkai pintu

Hubungi Kami
Minta Penawaran Harga
Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine
Detail Produk
Nama Produk:
Filipina Mesin Roll Up Door Mesin Roll Forming Pintu Rana Otomatis
Voltase:
380V/440V/220V/415V
Ketebalan material:
0,7-1,2mm
Pembentukan kecepatan:
6-15m/menit
Bahan poros:
45# Diameter Luar Baja: 70mm
Bahan roller:
45 # baja Berlapis Krom
pompa minyak hidrolik:
4KW
Menyoroti:

415v steel roll former

,

roll up door steel roll former

,

roll up door metal roll former

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

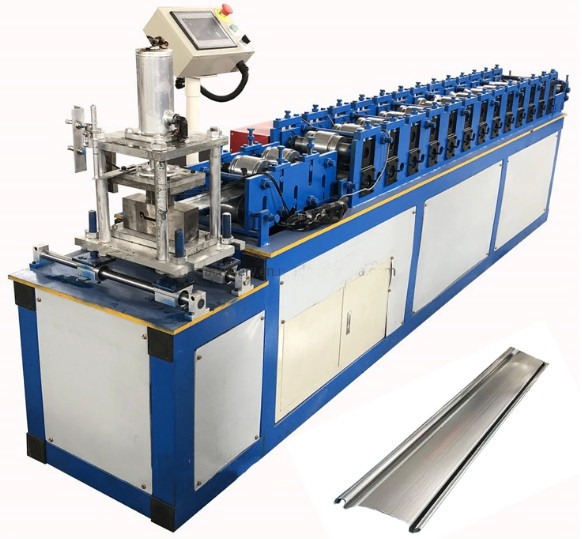

Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine

    Philippines Roll Up Door Machine Automatic Shutter Door Roll Forming Machine.Shutter door roll forming machine /roller shutter roll forming machine /shutter door panel making machinery

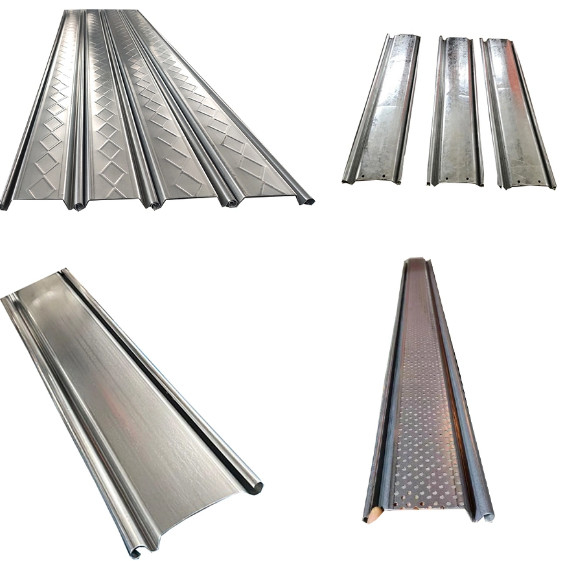

This is shutter door roll forming machine ,it is used for making shutter door panels ,this roll forming machine is widely used in norways ,material thickness is 0.7-1.2mm ,we can customer the designs as your request ,also we can make U guide rail machine ,shutter door bottom rail machine ,don'r hesitate if you have any request.



Specification

No
Item
Specification

Material
Raw material
GI or PPGI
Material thickness
0.7-1.2MM






Machine body
Roller material
High grade 45# steel with Cr12 quenched
Shaft material
High grade 45# steel with Cr12 quenched
Shaft diameter
50mm
Roller stations
14
Middle plate thickness
16mm
Machine size
5*0.8*1.2m
Productivity
8-15m/min

Cutter
Material
GCR12
Method
Hydraulic cutting



Power
Driving way

Chain 1 inch
Motor
4KW
Hydraulic oil pump
3KW
Voltage
380V,50HZ ,3 phase or customized as your need


Control system
PLC ,invertor
Delta from Taiwan
Screen
Delta ,touch screen
Language
Chinese & English or as your request



Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
