Fast Speed Metal Door Frame Roll Forming Machine Customized

fast metal door frame roll forming machine

customized metal door frame roll forming machine

customized steel door roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Kusen Pintu Logam Kecepatan Cepat Pabrik Mesin Roll Forming Disesuaikan

Kapasitas Produksi:

15-20m/mnt

Voltase:

380V/50HZ/60ph

Komponen inti:

Motor, Gearbox, PLC

Dimensi (P*L*T):

10,5*0,9*1,450m

Sistem Pengendalian:

PLC

Ketipisan bergulir:

1.2-1.5mm

Pembentukan kecepatan:

15~20 menit/m

Jenis pemotongan:

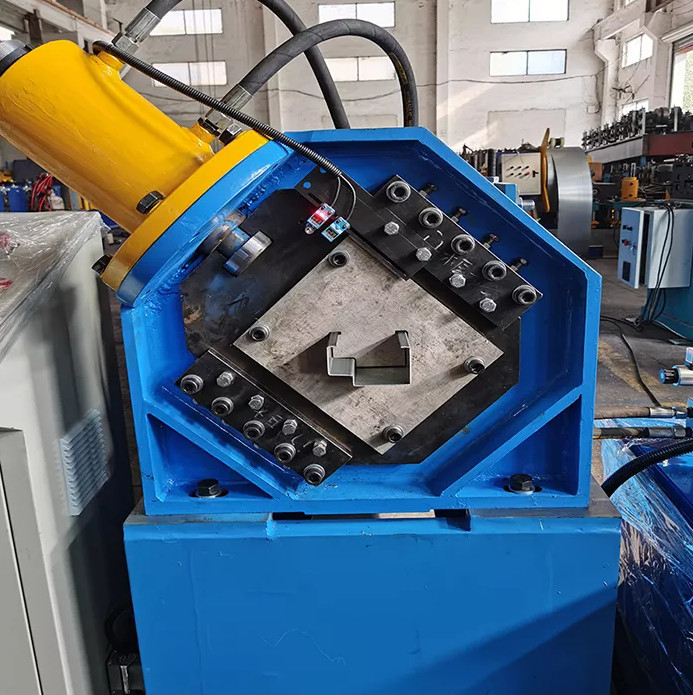

geser hidrolik

Menyoroti:

fast metal door frame roll forming machine

customized metal door frame roll forming machine

customized steel door roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik

Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik

Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Dapatkan Harga Terbaik

Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Fast Speed Metal Door Frame Roll Forming Machine Factory Customized

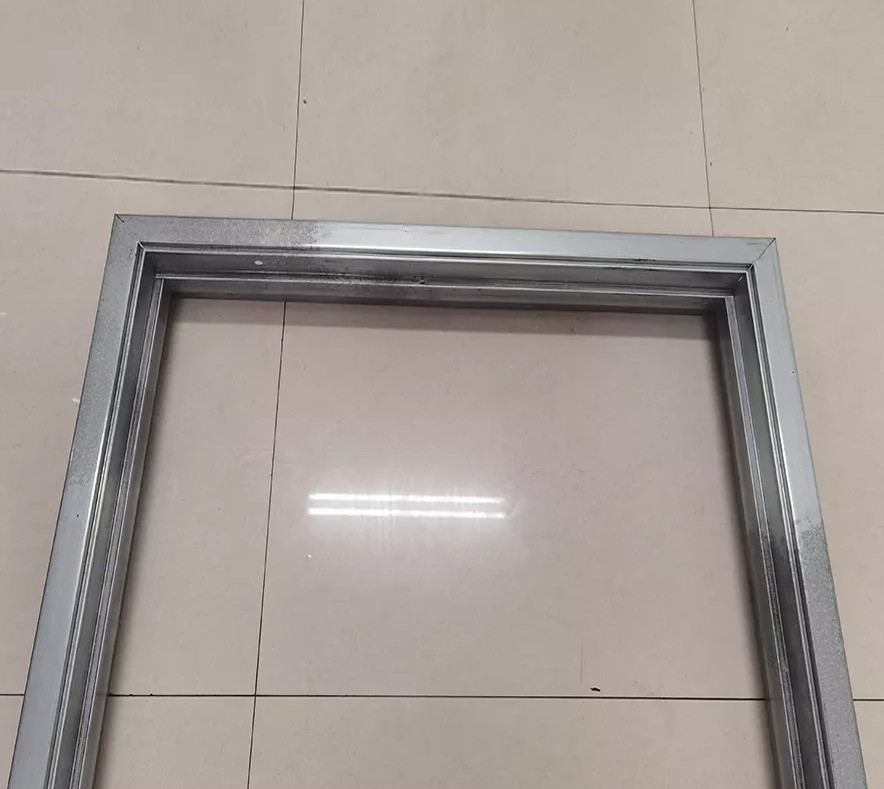

Doorframe And Fire Door Roll Forming Machine Doorframe Roll Forming Line.It can produce a structural doorframe, fire door and clean panel, doorframe roll forming line of KINDUS can automatically control according to the width of product.Widely used in various industrial, factory, villa building, civilian building, warehouse and have features such as nice appearance and durable.We can manufacture various kinds of machines to satisfy our customer, you can also provided the drawings what you want or the samples, we will design the project for you accordingly.

Specification

Technical Parameters (some depend on the final design)
1	Machine Type	Door frame
2	Machine Dimension (mm)	105009001450
3	Total Wight (Kg)	6000
4	Forming Steps	16
5	Forming Speed (m/min)	15-20m/min
6	Hydraulic Station Power(KW)	7.5
7	Diameter of Shaft (mm)	75
8	Electric Condition	380V/3Phase/ 50HZ
9	Power for Hydraulic Uncoiler(KW)	3KW
10	Recoiler Max Capacity (KGS)	5Tons
11	Control System	PLC
12	Raw Material Thickness (mm)	1.2-1.5mm
13	Effective Width(mm)	58mm
14	Material Width(mm)	500mm
15	Serial Number	BG2020006

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
