Trapezoidal 5 Rib Roofing Roll Forming Machine For Ibr Sheet

trapezoidal roofing roll forming machine

5 rib roofing roll forming machine

trapezoidal ibr sheet roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Trapesium 5 Rib Mesin Roll Forming Lembar IBR

Metode transmisi:

Tekanan hidrolik

Toleransi panjang:

± 2,0 mm

Sistem Pemotongan dan Pengepresan:

Hidrolik

Kontrol:

PLC

Jenis drive:

dengan Rantai atau Gear atau Gearbox

Voltase:

380V 3Phase 50Hz sebagai Permintaan Anda

Menyoroti:

trapezoidal roofing roll forming machine

5 rib roofing roll forming machine

trapezoidal ibr sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

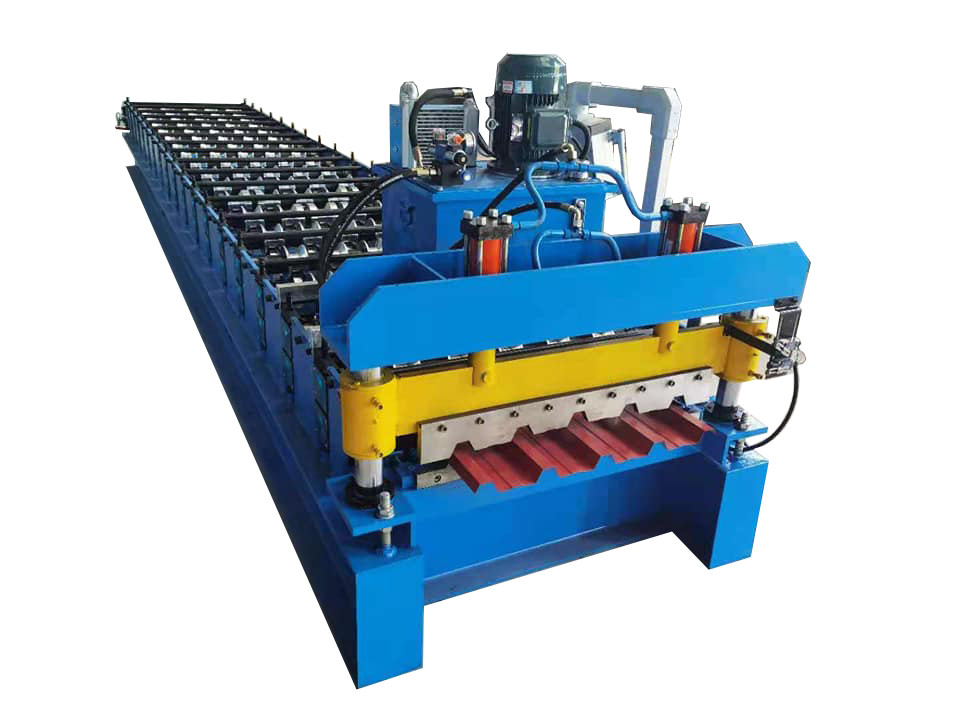

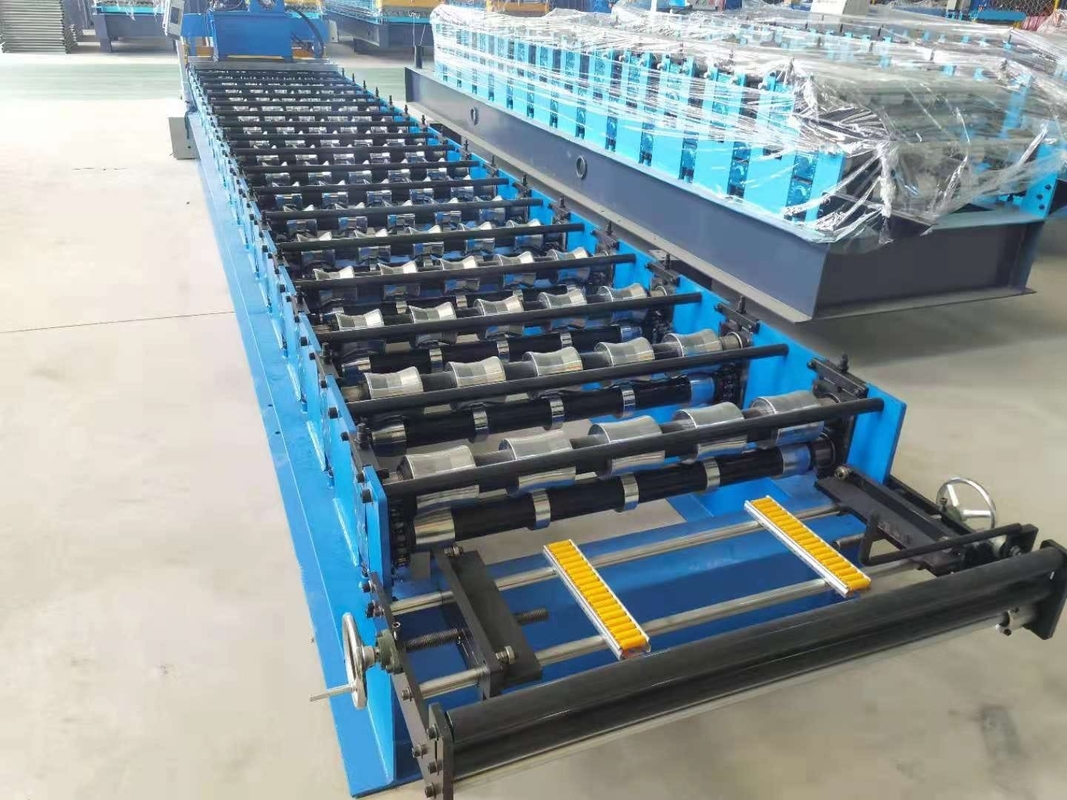

Trapezoidal 5 Rib Roofing Roll Forming Machine IBR Sheet Roll Forming Machine

Trapezoidal 5 Rib Roofing Roll Forming Machine IBR Sheet Roll Forming Machine.IBR Roofing Sheet Roll Forming Machine creates Exposed Fastening Rib-Roof Metal Panels which has many distinctive, aesthetic types based on rib height and rib spacing.Operates in continuous lengths.Suitable not only for Roofing but also for Wall Cladding, Decorative Panels, and Fencing. Common type: Trapezoidal Roofing Roll Forming Machine, 5 Rib Roofing Roll Forming Machine, 6 Rib Roofing Roll Forming Machine, 9 Rib Roofing Roll Forming Machine, Trimdek Roofing Sheet Roll Forming Machine.

Specification

Weight of main part	10 tons (as actual situation )
Rolling speed	12-14 m/min (EECO) 18-20 m/min (Eco, standard)
Material of rollers	45#steel / ball bearing steel
Electric power	3.7 kW-11 kW
Station Quantity	18-24 stations
Steel Thickness	0.2-0.8 mm
Coil Width	914-1450 mm
Material	IGI, GL, PPGI, PPGL
Transmission System	Hydraulic, or Gear motor driven by Inverter
Control System	PLC, Touch Screen HMI

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Trapezoidal 5 Rib Roofing Roll Forming Machine For Ibr Sheet 0
