Rumah > Produk > Mesin pembentuk gulungan pintu rana >

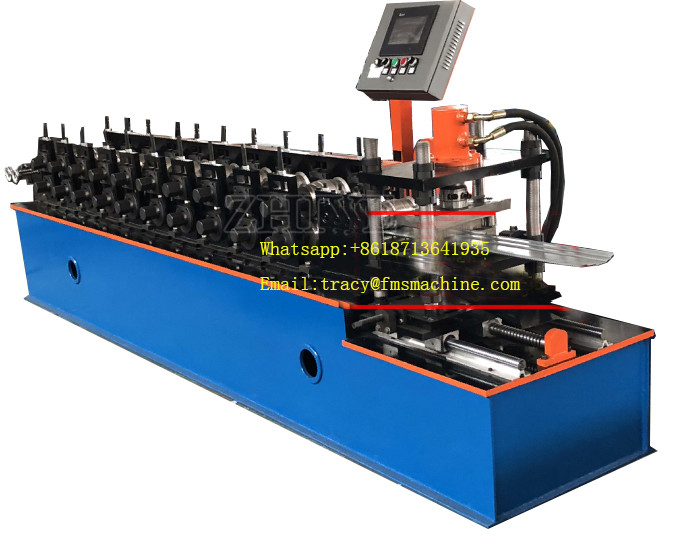

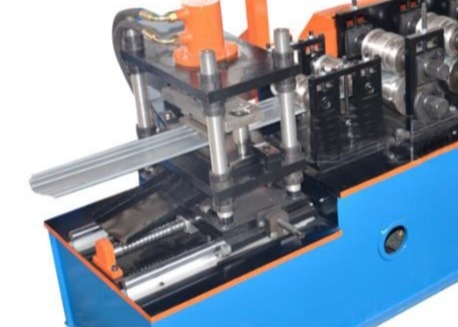

Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick

Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick

0.8mm thick panel roll forming machine

palisade fence panel roll forming machine

decorative fence roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Bingkai pintu

Hubungi Kami
Minta Penawaran Harga
Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick
Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick
Detail Produk
Nama Produk:
Mesin Roll Forming Panel Pagar Dekoratif Palisade Otomatis
Kapasitas Produksi:
0-15m/mnt
Voltase:
380V 50Hz atau sesuai permintaan
Berat:
2000 kg
Ketipisan bergulir:
0.3-0.8mm
Bahan roller:
Baja 45# dengan krom 0,05mm
Sistem Pengendalian:
Siemens/Delta PLC
Menyoroti:

0.8mm thick panel roll forming machine

,

palisade fence panel roll forming machine

,

decorative fence roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

Palisade Decorative Fence Panel Roll Forming Machine Automatic



   Cangzhou Famous Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.



   Palisade Decorative Fence Panel Roll Forming Machine Automatic,Our Fence Roll Forming Machine for different models based on different designs or customer's samples .The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.



Specification

No. Item Characteristic
1. Processing Material PPGI,GI
2. Processing Thickness(mm) 0.6-1.6mm
3. Main Frame/Middle plate

H400 Steel Beam/

20mm Steel plate
4. Material of Rollers 45# steel, with hard chrome coated
5. Diameter of Shaft 100mm
6. Number of Rollers 26 stand rollers
7. Production Speed 0-14m/min
8. Roller Driven Decelerating Motor+20A Chain Transmission
9. Cutting Model Hydraulic Profile Cutting
10. Length Measurement Encoder
11. Control Style PLC
12. Operation Model Button + Touch Screen
13. Total Power 27.5kw
14. Voltage 380V 50HZ or at buyer's request
15. Testing Material Q195

Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
