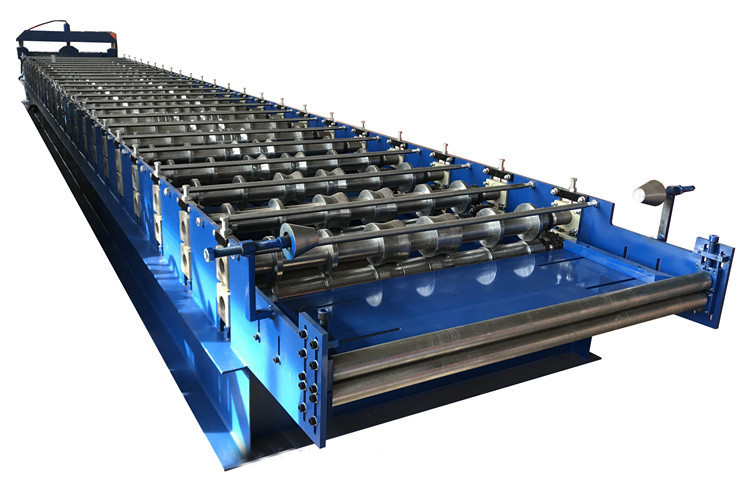

Ic72 1.5mm Metal Sheet Roof Roll Forming Machine Panel Trapezoidal Low Noise

trapezoidal metal sheet roof roll forming machine

1.5mm metal sheet roof roll forming machine

trapezoidal roof panel roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Ic72 1.5mm Metal Sheet Roof Roll Forming Machine Panel Trapezoidal Low Noise

Detail Produk

Nama Produk:

IC72-Panel Trapesium Lembaran Logam Atap Mesin Roll Forming Kebisingan Rendah

Kapasitas Produksi:

15 m/mnt

Voltase:

380V 50Hz 3 fase (disesuaikan)

Berat:

6 ton

Nilai jual utama:

Produktivitas tinggi

Bahan poros:

45# Diameter Luar Baja: 75mm

Ketebalan bahan baku:

0,3-1,5mm

Sistem Pengendalian:

PLC

Menyoroti:

trapezoidal metal sheet roof roll forming machine

1.5mm metal sheet roof roll forming machine

trapezoidal roof panel roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

IC72-Panel Trapezoidal Sheet Metal Roof Roll Forming Machine Low Noise

We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more then 20 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China.

trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1200mm /1220mm / 1250mm. After rolling product width is 840/1000mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.

Specification

Article No.	Item Name	Specification
1	Effective width	1000 mm
2	Thickness of panel	0.3-0.8 mm coil sheet
3	Roller station	23 stations
4	Shaft Diameter	75 mm
5	Productivity	8-15 m/min
6	Rollers' material	45# steel forge
7	Shaft material	45# steel
8	Weight	6.5 tons
9	length	7 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	5 tons
13	Motor	5.5 kw
14	Driving way	Chain transmission
15	Chain size	0.6-2 inch

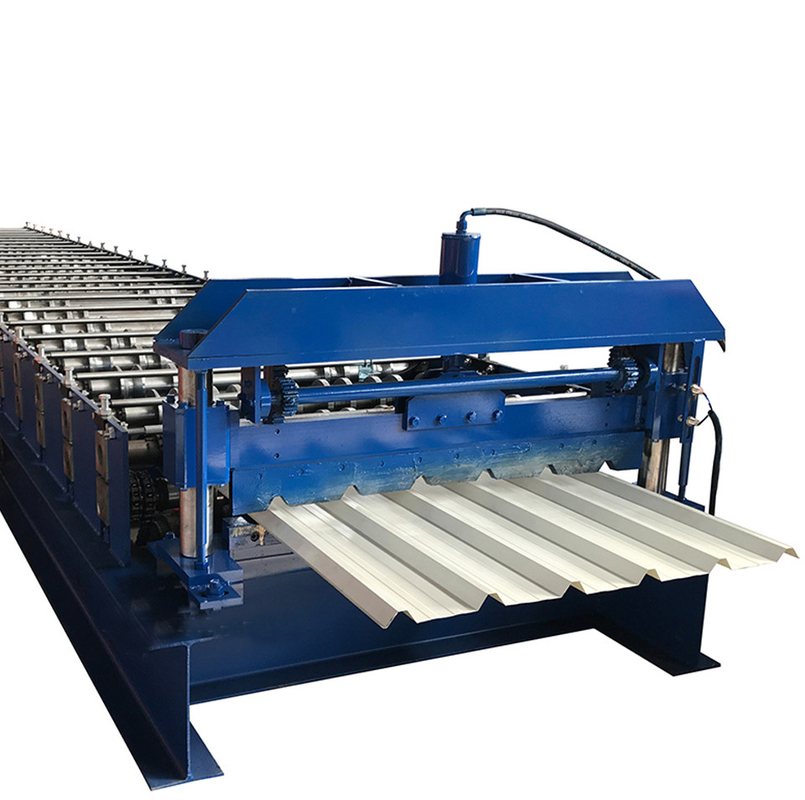

16	Cutting system	Hydraulic cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
