Metal Panel Roofing Sheet Rollformers 0.3mm Hydraulic Cutting

hydraulic cutting rollformers

roofing sheets manufacturing rollformers

0.3mm roofing sheets manufacturing machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Metal Panel Roofing Sheet Rollformers 0.3mm Hydraulic Cutting

Detail Produk

Nama Produk:

KOREA RO-D250 Mesin Roll Forming Untuk Lembaran Atap Panel Atap Logam

Ketipisan bergulir:

8-15 m/mnt

Voltase:

380V 50Hz 3Phase

Berat:

6500KG

Lebar makan:

1250mm

Nama Produk:

Mesin pembentuk lembaran atap C21

Dimensi (P*L*T):

6500*1300*1300mm

Ketebalan bahan baku:

0,3-0,8 mm

Menyoroti:

hydraulic cutting rollformers

roofing sheets manufacturing rollformers

0.3mm roofing sheets manufacturing machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

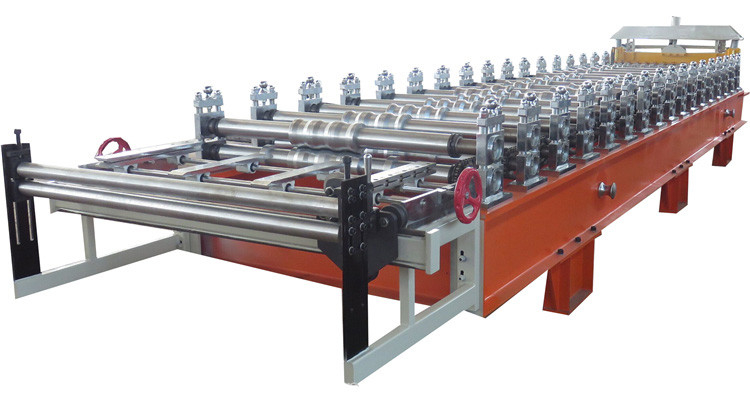

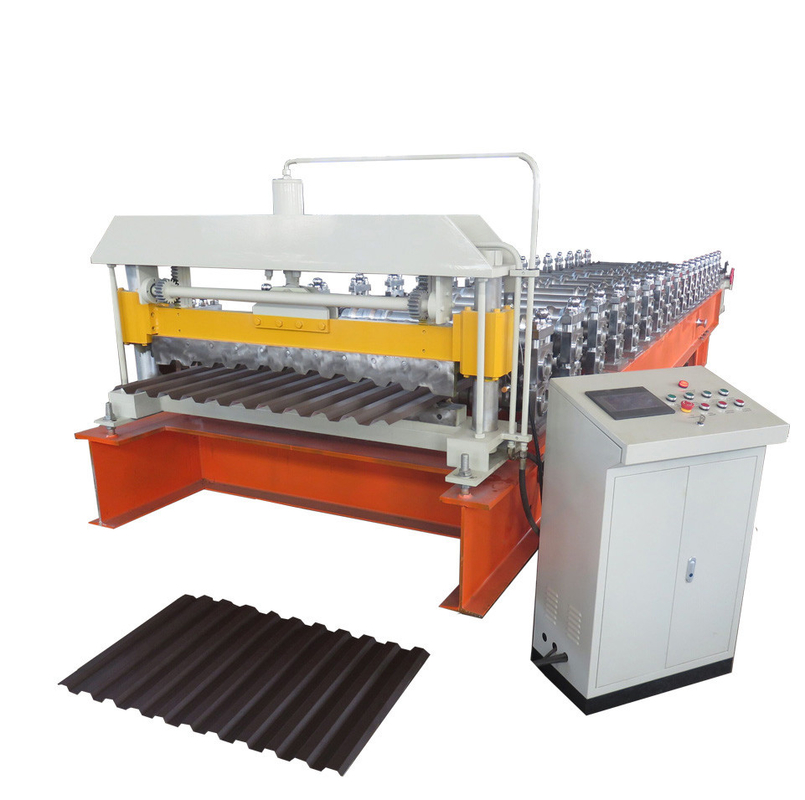

KOREA RO-D250 Roll Forming Machine For Metal Roof Panel Roofing Sheet

KOREA RO-D250 Roll Forming Machine For Metal Roof Panel Roofing Sheet are designed for high volume producers in the steel metal building industry,well build to your specific panel design from 20 to 30 gauge. Our lines are built to be flexible ,high speed and robust for tough production environments.Now this kind of machine have been exported to many countries, the most important is that ur need can be customized.

The main width of feeding coil material including: 914mm,1000,1219mm,1220mm and 1250mm. Then the effective width of roof tile is different.

Hydraulic motor roof panel roll forming machine. Power is from hydraulic motor. Hydraulic oil supply the power to roof panel roll forming machine

Specification

Part details	Item Name	Specification
Manual uncoiler	carrying capacity	5 tons
Manual uncoiler	Stype	Manual
Raw coil	Coil material	steel
Raw coil	Coil thickness	0.3-0.8 mm
Machine body	Roller station	15-20 station
	Roller material	45# steel
	Shaft material	45# steel
	Shaft diameter	75 mm
	Machine weight	About 6.5 tons
	Machine size	6.51.51.5 m
	Speed	8-12 m/min
Cutter	Operate	Hydraulic cutting
Cutter	Blade material	Cr12
Power	Operate	Chain transmission
Power	Chain size	1 inch chain
Control system	PLC brand	Delta made in Taiwan
	Motor power	7.5 kw
	Hydraulic pump power	4 kw
	Voltage	380V 50Hz 3phase
	Machine color	As ur need
	Machine language	Chinese and English

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
