Lock Seam Door 0.48mm Metal Roll Former No Nails Self Locking

lock seam metal roll former

0.48mm metal roll former

self locking metal roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lock Seam Metal Door Mantan Tanpa Paku Self Locking

Kapasitas Produksi:

8-15m/mnt

Sistem Pengendalian:

Kontrol PLC

Voltase:

380V 50Hz 3Phase

Bahan roller:

Baja cetakan Cr 12 dengan perawatan yang dipadamkan

Ketebalan bahan baku:

0,42-0,48mm

Dimensi (L*W*T)::

5-12m*1,3m*1,3m

Bahan pelat pemotong:

CR12

Perangkat pemotong:

Pemotongan hidrolik

Menyoroti:

lock seam metal roll former

0.48mm metal roll former

self locking metal roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

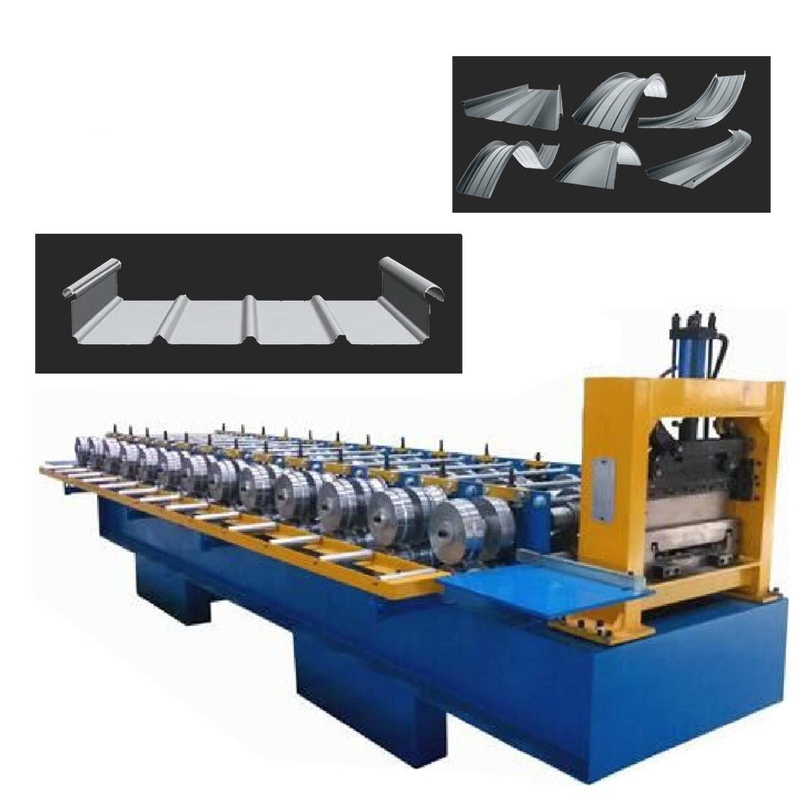

Lock Seam Metal Door Roll Former No Nails Self Locking Roll Forming Machine

FMS roll forming machinery CO.,Ltd is a professional manufacturer designing and producing roll forming machines established in June 1995. We are ready to provide quality products and excellent service to our customers with our company motto "Quality first and nothing but credit".

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site

Equipment Detailed Parameters:

Article No.	Item Name	Specification

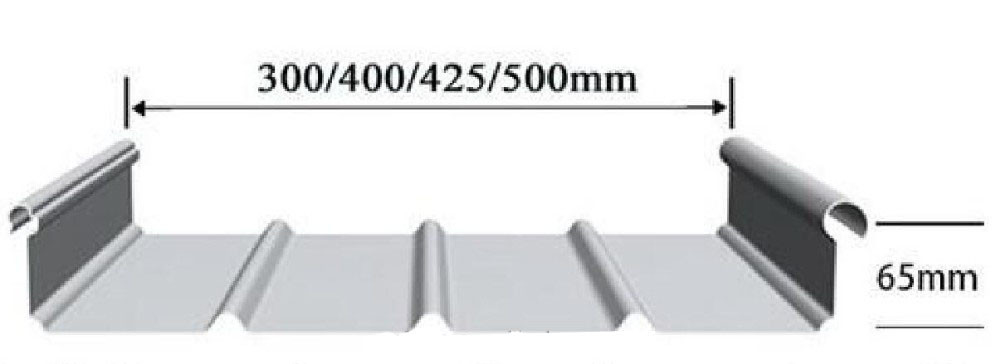

1	Effective width	300/400/425/500 mm coil sheet
2	Thickness of feeding material	0.42-0.48 mm coil sheet
3	Roller station	10-15 stations
4	Shaft Diameter	55-75mm
5	Productivity	8-12m/min
6	Rollers' material	45# steel forge
7	Shaft material	45# steel
8	Weight	2.5-8 ton
9	length	5.5 m-11m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	8 Tons
13	Motor	3kw-7.5 kw
14	Driving way	Chain transmission
15	Chain size	0.6 inch-2 inch
16	Cutting system	Hydraulic cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
